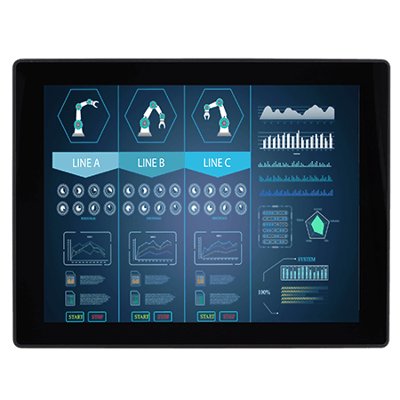

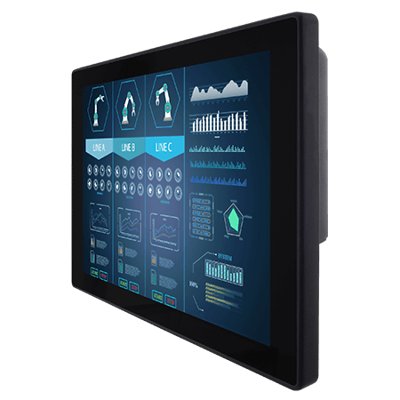

12.1" PoE Chassis Display
Vlastnosti:
- 12.1” 1024 x 768 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- VGA input and HDMI input
- USB port for touch
- Stylish and elegant design
- Supports PoE
- Front IP65
Display
Resolution | 1024×768 |
Size | 12.1 inches |
Contrast Ratio | 700:1 |
Panel Brightness | 500 nits |
Display Color | 16.2M Colors |
View Angles | 89,89,89,89 |
Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
Environment
Operating Humidity | 10% to 90% (non-condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -10~60°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) |
Audio | 2 x Speaker (Optional) |
LAN | 1 x PoE for Power Input |
Mechanical
Dimension | 296.2 x 226.7 x 45.5 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x USB Cable for Touch 1 x VGA Cable 1 x HDMI Cable |
Power
POE | Power Device (PD) follows IEEE 802.3at (25 W), IEEE 802.3af (15 W) |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
