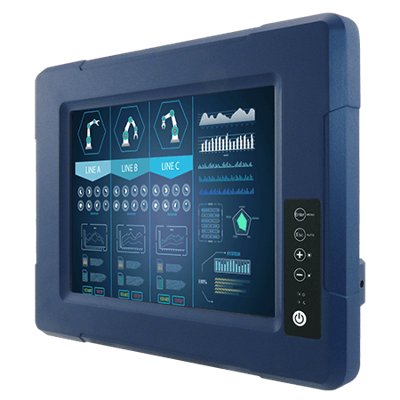

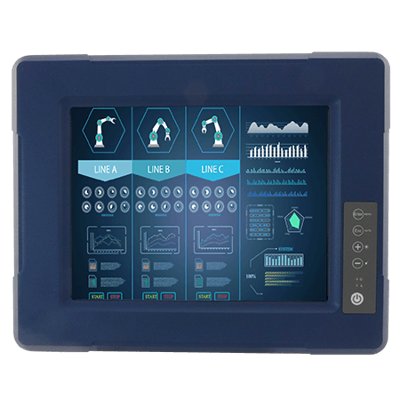

10.4" G-WIN VM Series Display
Vlastnosti:
- High Quality 10.4" SVGA Panel, 1024 x 768 resolution
- Front IP65 Dust/water resistant Protection (Except I/O parts)
- Aluminum Housing with Anti-Corrosion Treatments
- Anti-Shock and Vibration
- Standard according to MIL-STD-810G & IEC-60068227
- 5 Wire Resistive Touchscreen
- Anti-Reflection Protection Glass(Optional)
- 10 ~ 60V DC Isolation Wide Range Power Input. Optional Ignition on/off control function.
Display
Resolution | 1024×768 |
Size | 10.4 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits |
Display Color | 16.2M Colors |
View Angles | 88,88,88,88 |
Active Area | 210.4×157.8 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
Dimension | 315 x 250 x 67 mm |
Mounting | VESA Mount Yoke Mount |
Enclosure | Aluminum Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | -10°C to 55°C |
Storage Temperature | -30°C to 70°C |
Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 10~60V DC, 3-Pin Terminal Block |
USB Port | 1x USB type-A for touch screen control (Optional) |
Serial Port | 1 x RS232 D-sub9 for touch screen control (Optional) |
Video | 1x VGA input 1x HDMI input (Optional) |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x Menu button |
Accessory
Accessory | Open Wire Cable with terminal block connector External VGA cable VESA screws |
Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC Adapter with power cord (Optional) External USB/COM cable for touchscreen control (Optional) External HDMI cable (Optional) |
