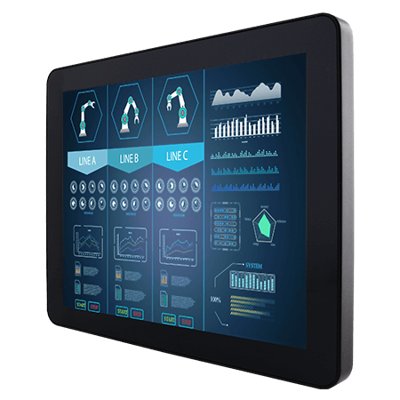

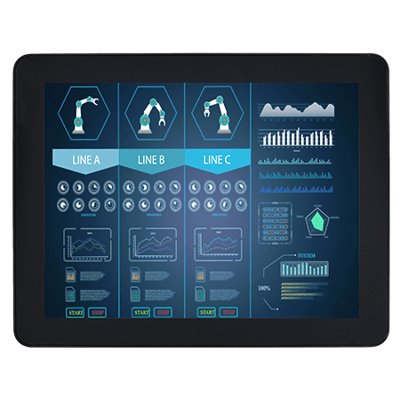

10.4" PoE Chassis Display
Vlastnosti:
- 10.4” 1024 x 768 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- VGA input and HDMI input
- USB port for touch
- Stylish and elegant design
- Supports PoE
- Front IP65
Display
| Resolution | 1024×768 |
| Size | 10.4 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350 nits |
| Display Color | 16.2M Colors |
| View Angles | 88,88,88,88 |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) |
| Audio | 1 x Speaker (Optional) |
| LAN | 1 x PoE for Power Input |
Mechanical
| Dimension | 252.41 x 197.8 x 43.8 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x USB Cable for Touch 1 x VGA Cable 1 x HDMI Cable |
Power
| POE | Power Device (PD) follows IEEE 802.3at (25 W), IEEE 802.3af (15 W) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
