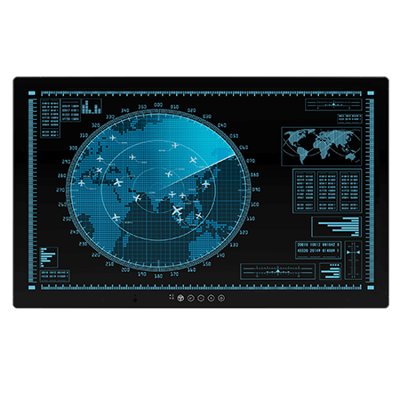

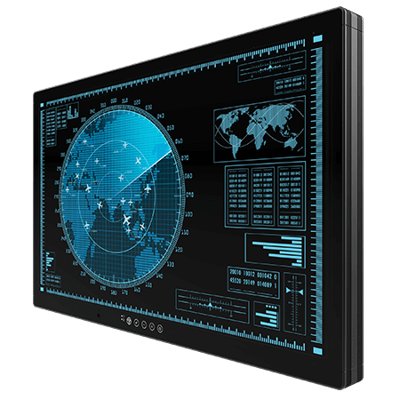

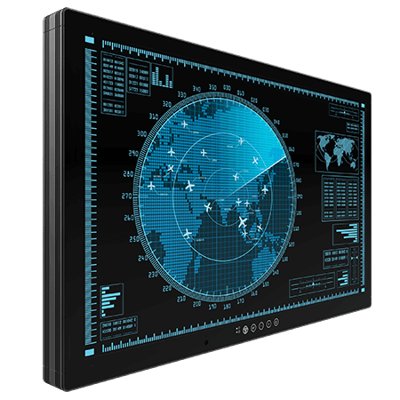

32" 4K UHD Chassis Defence Display
Vlastnosti:
- 32" 4K UHD Chassis Defence Display (3840 x 2160) native resolution for video display and other on-site applications
- Thin and Compact Design with impact resistant screen
- AR glass, PCAP touch optional , 4K UHD Chassis Defence Display
- Fanless and ventless design, easy-to-clean
- Compatible with existing imaging systems
- Build-in Light Sensor for Auto Brightness Control
Display
| Touch / Glass | AR Glass Projected Capacitive Multi Touch Screen (Optional) EMI Touch/Glass (Optional) |
| Resolution | 3840×2160 |
| Size | 32 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350 nits 700 nits(Optional) |
| Display Color | 1.07B Colors |
| View Angles | 89,89,89,89 |
| Active Area | 708.48 x 398.52 mm |
Certification
| Certification | CE, FCC |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
Compliance
| MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810F/G | Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
IO Ports
| USB Port | 1 x USB for Touch Screen (Optional) |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA 1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In |
Mechanical
| Dimension | 777.58 x 477.62 x 48 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual(Hardcopy) VESA Mounting Screws (M4 x10 /M4 x 12) Power Cord 1.8M AC Adaptor Power Convert Cable VGA Cable 1.8M(Male to Male) Dual Link DVI Cable 1.8M (Male to Male) COM Cable 1.8M (Male to Female) |
| Optional Accessory | USB cable for Touch (Optional) |
Power
| Power Rating | 24V DC in |
