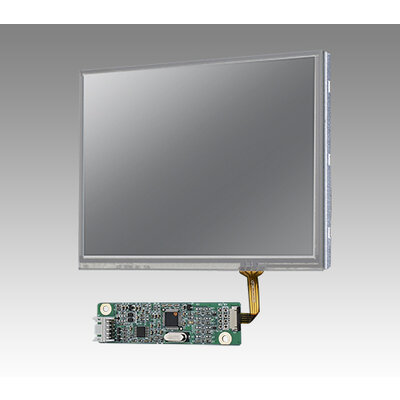

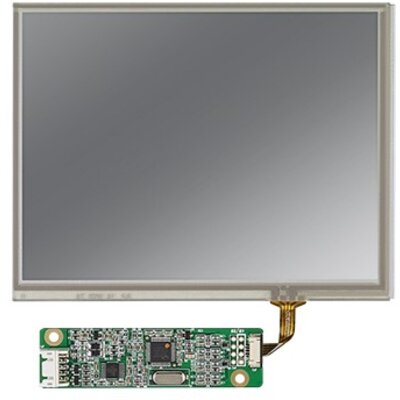

5.7" VGA Industrial Display kit with Touch Solution and LVDS Interface
The Advantech IDK-1105 series comes with a 5.7" industrial grade LCD display with 4-wire resistive touch. IDK-1105 series supports 4-wire resistive touch with low power consumption at the maximum of 2.1 Watt.
Vlastnosti:
- 5.7" LCD supports 640 x 480 pixels and wide operating temperature (-20 ~ 70° C)
- Brightness of 500 cd/m2
- 4-wire resistive touch solution
- LVDS signal interface
- Low power consumption 1 Watt (panel only)
- LED driver board built in
- Touch controller included (USB)
- Note: The panel kits need extra LVDS and backlight cable to connect to single board computer.
