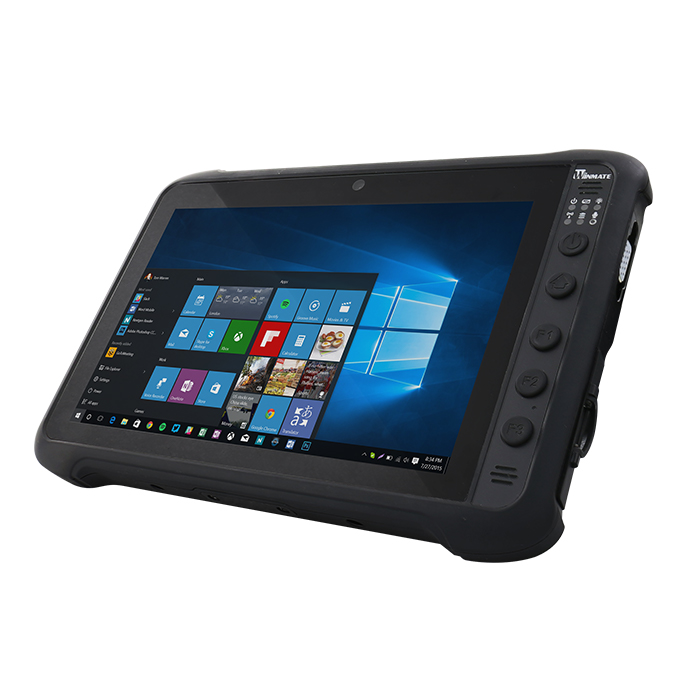

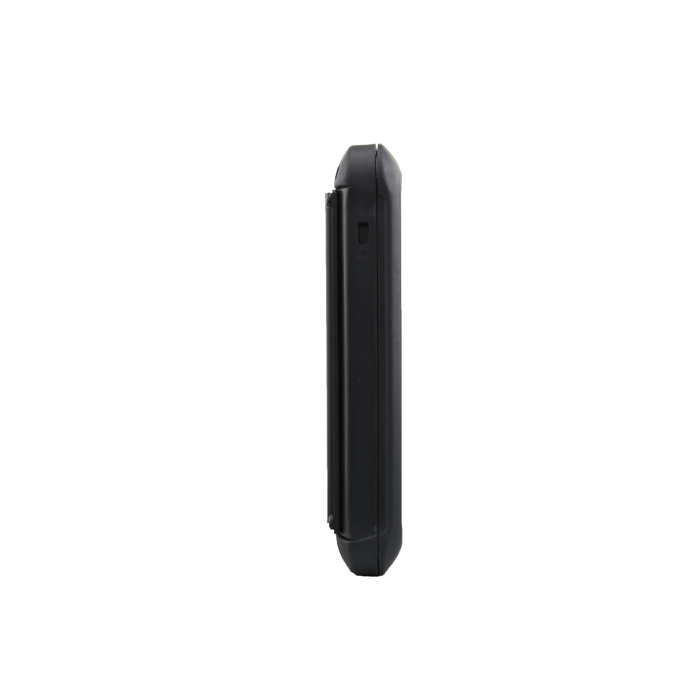

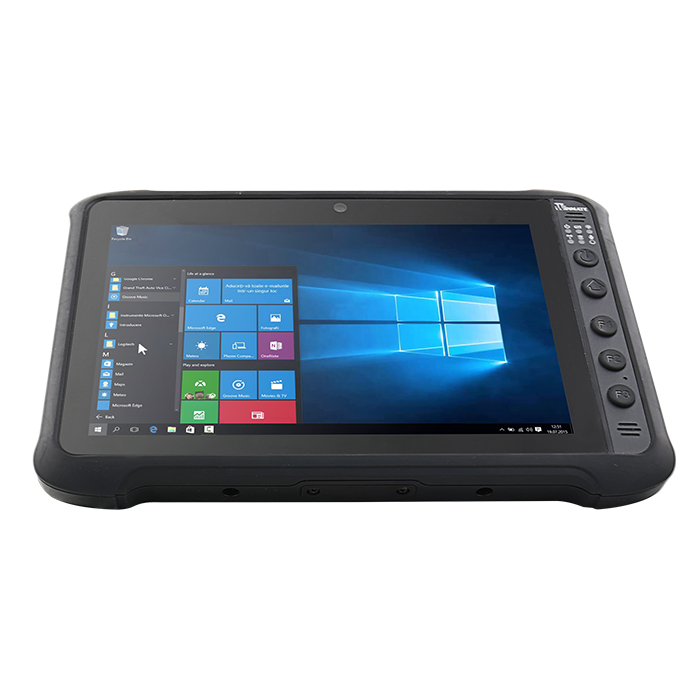

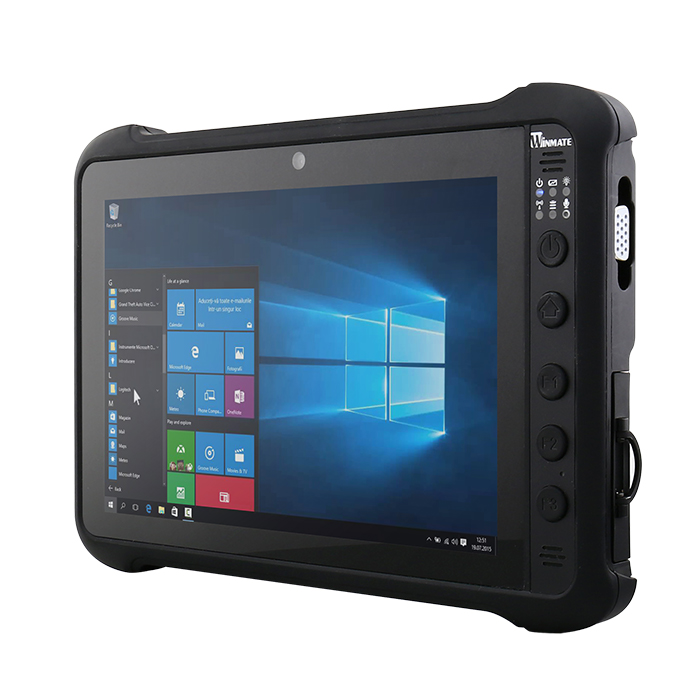

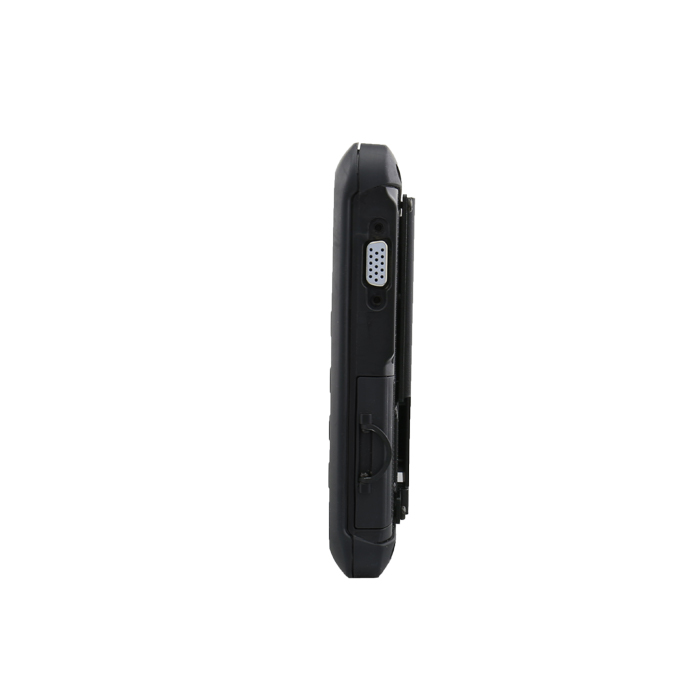

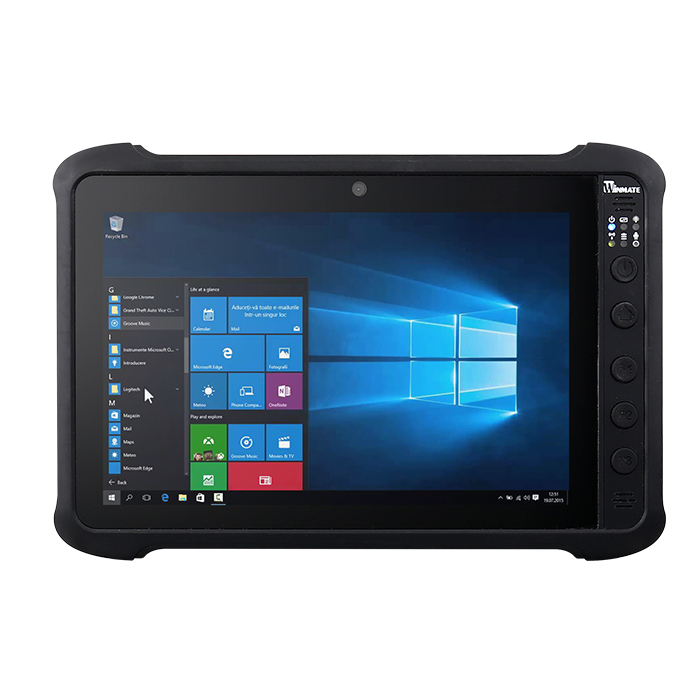

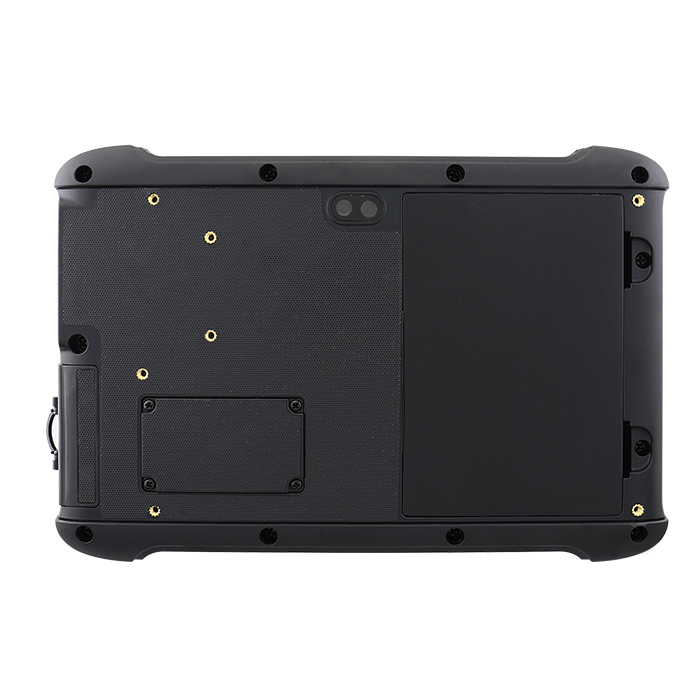

M900P 8″ Windows Rugged Tablet
Features:
- Intel® Pentium® N4200 Apollo Lake processor
- 8” 1280 x 800 IPS LED Panel with direct optical bonding
- Projected Capacitive (P-Cap) multitouch
- Default D-sub for vehicle gateway connection
- USB 3.0 Type A, USB 3.0 Type C connectors
- IP65 waterproof and dustproof Display
Display
| Size | 8.0 inches |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280×800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80/80/80/80 |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Intel® Pentium® N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB LPDDR4 8GB LPDDR4 (Optional) |
| Storage | 128GB SSD 256GB / 512GB SSD (Optional) Micro SDXC slot supported |
| Operating System | Windows 10 IoT Enterprise (64 bit) |
| Security | TPM 2.0 |
| WLAN / BT | Supported |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID 13.56 MHz (Optional) LF RFID 125 KHz (Optional) Mutually exclusive with barcode reader |
| Sensors | Light sensor / G-sensor / Gyro |
| Smart Card Reader | Compliant with ISO7816-1.2.3 T=1 and T=O (Optional) |
Camera
| Front | 2 MP |
| Rear | 8 MP with Autofocus and LED Light |
Mechanical
| Dimensions | 225 x 148 x 20.5 mm |
| Weight | 0.9 kg with battery |
| Cooling System | Fanless design |
IO Ports
| USB | 1 x USB 3.0 Type A 1 x USB 3.0 Type C |
| Audio | 3.5mm combo jack, dual digital mics, dual speakers |
| SD Slot | 1 x Micro SDXC slot |
| SIM Slot | 1 x Micro SIM card slot |
| Expansion | 1 x 15-pin D-sub for Power Input, USB 2.0, Audio Out, Tx/Rx |
| Indicators | 4x LED (Power, Battery, HDD, RF) |
| Docking | 1 x 19-pin docking connector |
Environment
| Operating Temp | -20°C to 60°C |
| Storage Temp | -30°C to 70°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G, 5 ft |
| IP Rating | IP65 |
Certification
| Certifications | CE, FCC, E-Mark |
Security Function
| SOTI MobiControl | Compliance Supported |
Control
| Buttons | 1 x Power, 1 x Menu, 3 x Programmable Function Keys |
Power
| Battery | 7.6V, typ. 4200 mAh Li-Polymer Battery (2S2P) |
| Battery Life | 8 hours |
| Power Adapter | 100–240V AC / 19V DC |
Accessory
| Included | Adapter and Power Cord, Standard Battery Pack |
| Optional | Desk Dock, Vehicle Dock, Vehicle Gateway, Vehicle Cradle, Battery Charger, Vehicle Charger, Hand Strap, Capacitive Stylus |
Barcode Scanner
| Scanner | 1D/2D barcode reader (Optional) |
