High Performance with Low Power Consumption
Powered by Intel’s processor, the M133 series ultra-rugged tablet offers high performance and low power consumption for some of the most demanding professional-grade applications.
Brilliant Sunlight Readable Display
The 13.3″ TFT-LCD panel with the 1920 x 1080 resolution with its sunlight-readable transflective solution, the M133 series ultra-rugged tablet, offers a premium viewing experience both indoors and outdoors.
Capacitive Multi-Touch with Switchable Modes
The M133 series ultra-rugged tablet uses projected capacitive multi-touch, the effortless touch technology the world has come to love and demand due to the effortless tapping, panning, zooming, and pinching the technology allows. Support use with gloves and in the rain, as well as more precise stylus operation.
Ultra Rugged Design Built to Survive
The M133 series ultra-rugged tablet is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G test withstand the rigors of outdoor environments – water, dust, weather changes, strong.
Ergonomic Design

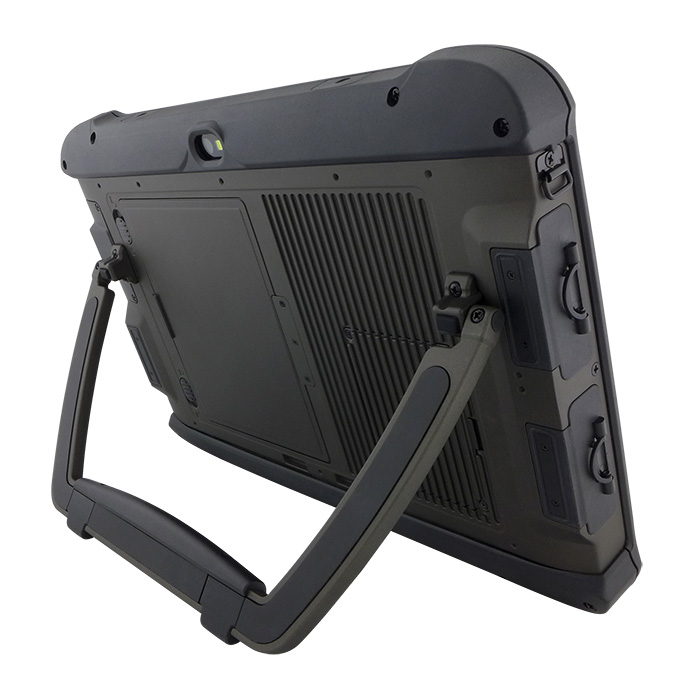

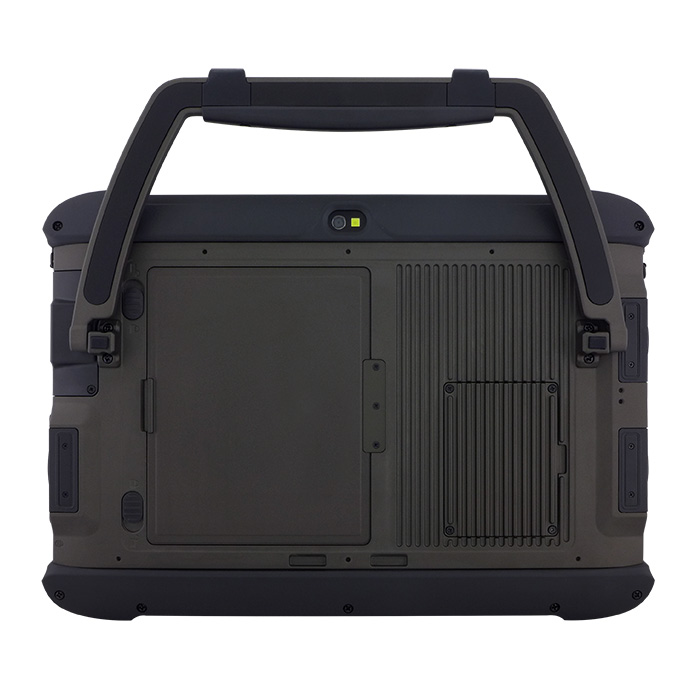

Despite the ruggedness, the M133 Series ultra-rugged tablet is handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.
Features:
- Intel® Core™ i5-8265U Whiskey Lake processor
- 13.3″ 1920 x 1080 IPS wide viewing angle LED Panel
- Magnesium alloy housing with all-around elastomeric rubber
- Built-in kickstand usable as carrying handle(indefinitely adjustable)
- Cold swap Battery Pack
- IP65 waterproof and dustproof
- Optical bonding technology
- TPM 2.0
Display:
| Size | 13.3 inches |
| Resolution | 1920×1080 |
| Panel Brightness | 500 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification:
| Processor | Intel® CoreTM i5-8265U, 1.60 GHz (up to 3.90 GHz) |
| Memory | 4GB SODIMM DDR4-2400 8GB SODIMM DDR4-2400 (Optional) 16GB SODIMM DDR4-2400 (Optional) |
| Storage | Storage 1: 1 x 128GB M.2 SSD Storage 1: Up to 512GB M.2 SSD (Optional) Storage 2: Up to 512GB M.2 SSD (Optional) |
| Ethernet controller | 1 x RJ45-10/100/1000 Mbps LAN |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |

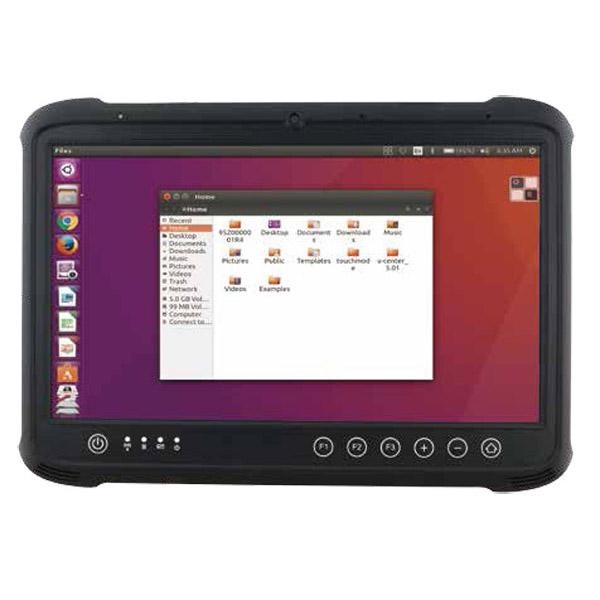

| Operating System | Ubuntu 18.04 |
| WLAN | 802.11 a/b/g/n/ac |
| BT | BT Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS/GLONASS (Optional) |
| Sensors | Light sensor/ g-sensor / Gyro / E-compass |
Mechanical:
| Dimension | 338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches) |
| Weight | 2.2kg (w/ kickstand) |
| Cooling System | Fanless thermal design |

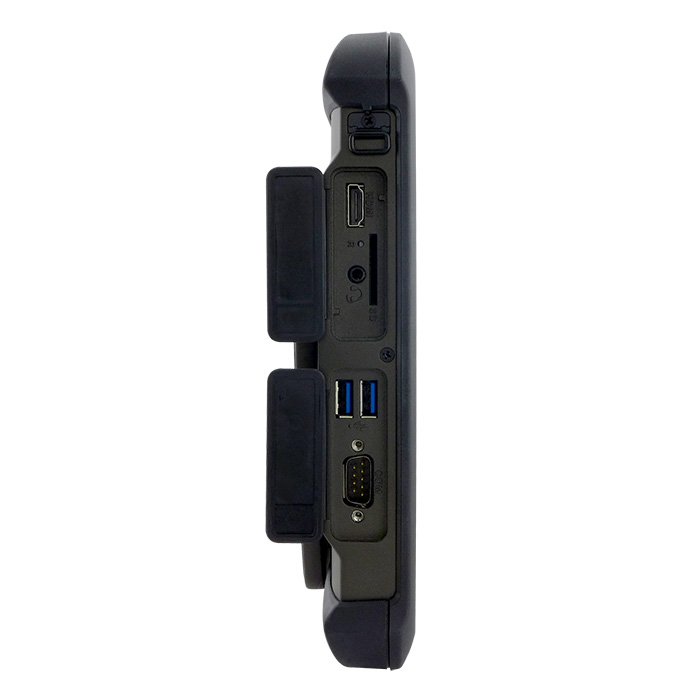

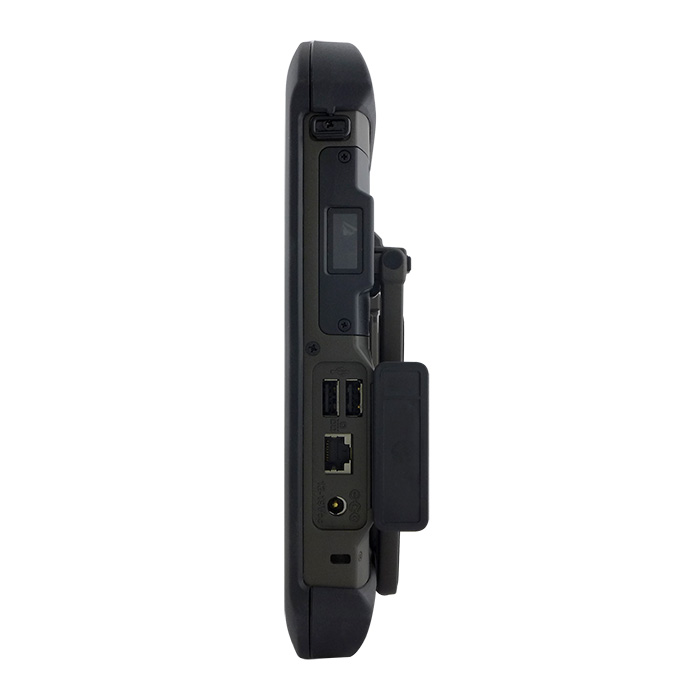

IO Ports:
| USB Port | 4 x USB 3.0 Type A, 1 x USB 3.1 Type C |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 1 x built-in Digital Mic with Noise Cancellation 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
Environment:
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
| IP rating | IP65 certified, dustproof and waterproof |
Certification:
| Certification | CE, FCC |
Security Function:
| Kensington Lock | Kensington Lock Support |
Control:
| Button | 1 x Power, 1 x menu, 3 x Programmable Function Keys |
Power:
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory:
| Accessory | Adapter and Power Cord Standard Battery Stylus Stand with Integrated Handle |
| Optional Accessory | VESA Mounting Kit VESA Mounting Kit 2 RAM Mounting Kit Vehicle Charger |
