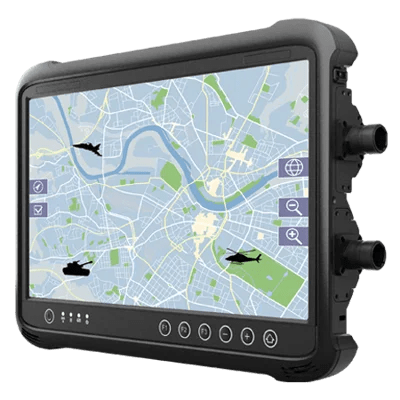

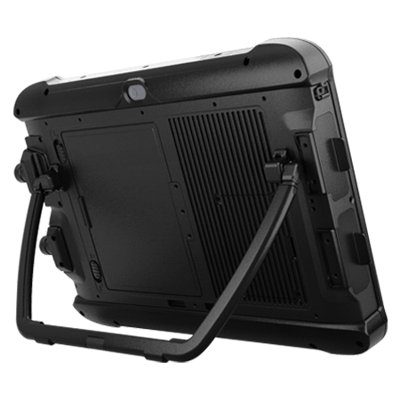

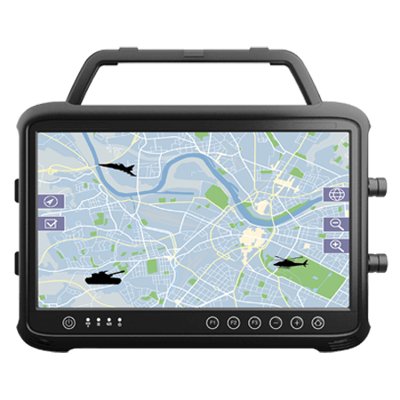

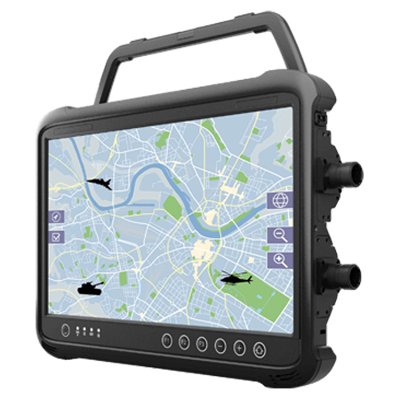

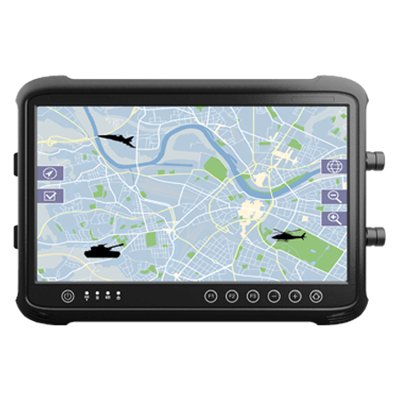

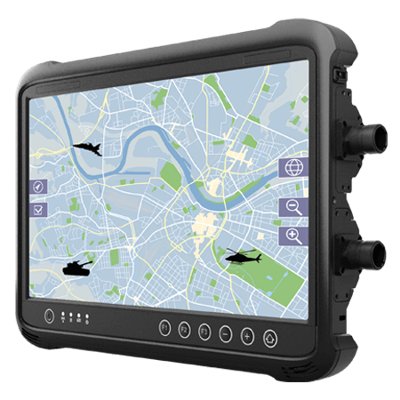

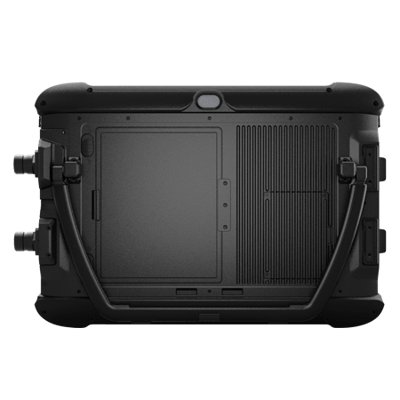

13.3″ IntelR Core i5-1135G7 Defence Ultra Rugged Tablet
Vlastnosti:
- 13.3”, 1920 x 1080, 500 nits with optical bonding (optional high brightness 800 nits)
- MIL-STD-38999 connector for LAN/ USB2.0 and Power/ RS232 input
- Projected capacitive multi-touch screen
- Supports Glove/ Rain/ Stylus modes, active stylus
- High efficiency cooling system with fanless design
- MIL-STD-810G Compliant
- With IP65 dust and water-resistant certification
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920×1080 |
| Size | 13.3 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 500 nits 800 nits(Optional) |
| View Angles | 89,89,89,89 |
System Specification
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB DDR4 SDRAM 8GB DDR4 SDRAM (Optional) 16GB DDR4 SDRAM (Optional) 32GB DDR4 SDRAM (Optional) |
| Storage | 128GB M.2 SSD up to 2TB M.2 SSD (Optional) Storage 2 up to 1x 2TB M.2 SSD (Optional) |
| Ethernet controller | 1 x RJ45-10/100/1000 Mbps LAN |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 10 IoT Enterprise 64 bit |
| WLAN | Support |
| BT | BT Support |
| WWAN | 4G/ LTE(optional) |
| GNSS | GPS, GLONASS |
Camera
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
Mechanical
| Dimension | 338.2 x 239.8 x 47.3 mm |
| Weight | 2.4 Kg (Without Kickstand), 2.8 Kg (With Kickstand) |
| Enclosure | Rear Magnesium Alloy Die-Casting Design |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 3 x USB 3.0(Type A), 1 x USB 2.0(MIL-STD-38999 connector),1 x USB 3.1(Type C) |
| Serial Port | 1 x RS-232 Serial COM Port(MIL-STD-38999 connector) |
| SD Card Slot | 1 x Micro SD Card Slot |
| Audio | 2 x 1 watt speaker Integrated Digital Mic With Noise Cancellation |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
Environment
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65, Dustproof and Waterproof |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
| ESD | ESD (Contact/Air) : 12kV/12kV |
Compliance
| MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810G/H | Vibration Method 514.6 Humidity Method 507.5 Transit Drop Method516.6 |
Certification
| Certification | CE,FCC |
Security Function
| Kensington Lock | Kensington Lock Support |
Control
| Button | 1 x Power,1 x menu,2 x volume key 3 x Programmable Function Keys |
Power
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Power Rating | 24V DC(MIL-STD-38999/1 connector) |
| Adapter | 100-240V, 50-60Hz / 24V DC |
Accessory
| Accessory | Adapter and PowerCord Standard Battery Stylus Stand with Integrated Handle Power/RS232 External Cable LAN/USB2.0 External Cable |
| Optional Accessory | Shoulder Strap (Optional) Battery Charger (Optional) Active Pen (Optional) |
