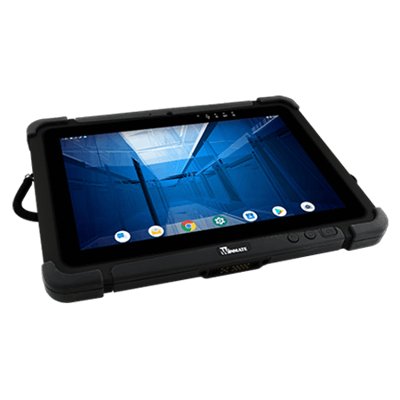

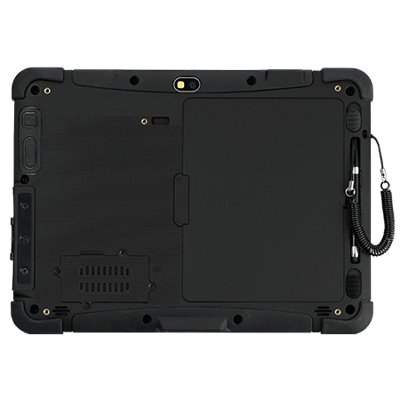

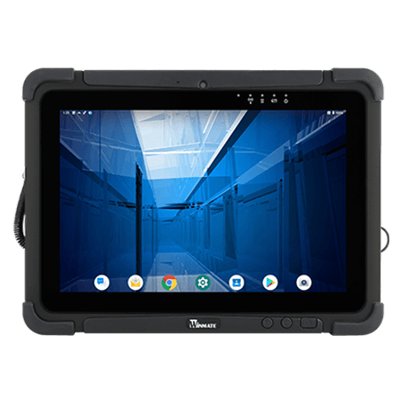

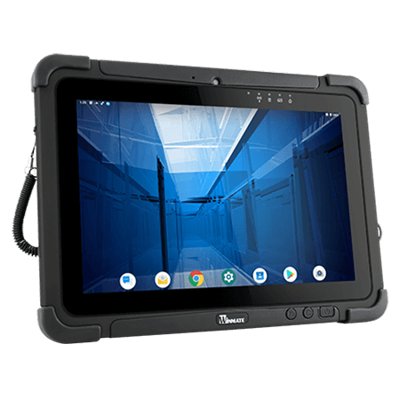

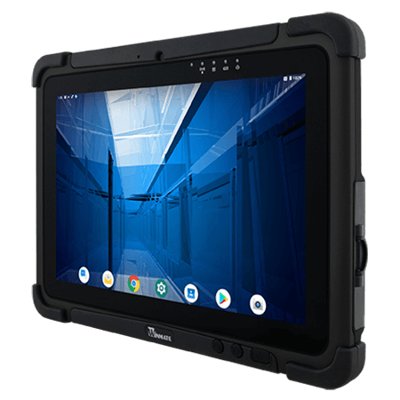

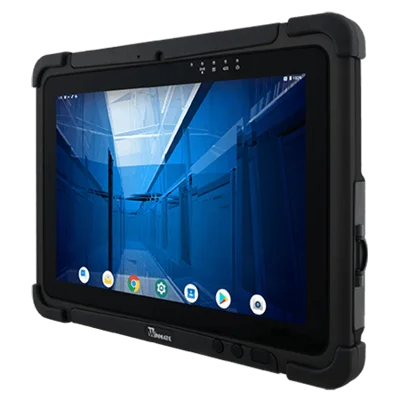

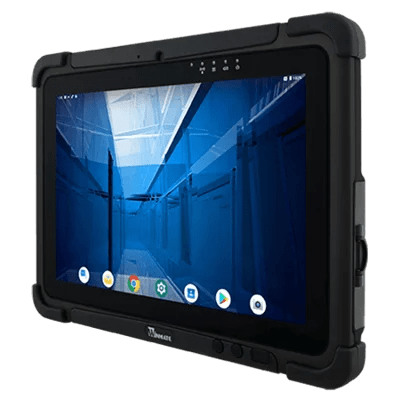

10.1 QualcommR 6490 Android Rugged Tablet
Vlastnosti:
- 10.1” 1920×1200 LED Panel with PCAP Touch
- Android 13.0
- Qualcomm® 6490 (Octa-core 2.7 GHz)
- Support Wi-Fi 6E
- Optional WWAN 4G and 5G
- MIL-STD-810H Shock / Drop / Vibration Compliant
- Optional Barcode Reader and NFC Reader
Display
| Resolution | 1920×1200 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Type | Projected Capacitive Multi Touch |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
System Specification
| Processor | Qualcomm® 6490 (Octa-Core 2.7GHz) |
| Memory | 8GB |
| Storage | 128GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional) 5G (Optional) |
| GNSS | GPS/GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
Camera
| Front Camera | 8MP Camera |
| Rear Camera | 16MP Camera with LED Auxiliary Light (Auto Focus) |
Mechanical
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 1 x USB 3.0 Type C OTG (Type C support Power Delivery) 1 x USB 2.0 Type A |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM Card Slot |
| Audio | 1 x Audio Combo connector (Mic in or Line Out) 1 x Built-in Mic 2 x Speaker |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Volume +/-, 1 x Home Button, 1 x ,Return Button, 1 x Power Button, 1 x Function Button |
Power
| Battery | 7.7V, typ. 5900 mAh LiPolymer Battery (2S1P) 7.4V, typ. 10280 mAh LiPolymer Battery (2S2P) (Optional) Warm swappable function (Optional) |
| Battery Operating Time | 8Hr |
| Power Rating | 19V |
| Adapter | 19V 3.42A Adapter |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock |
Accessory
| Accessory | Adapter and Power Cord Standard Battery Capacitive Stylus |
| Optional Accessory | High Capacity Battery Desk Dock Vehicle Dock Vehicle Cradle Battery Charger Vehicle Charger Metal Vehicle Dock Hand Strap VESA Mount Kit Shoulder Strap Carry Bag Micro SD Card HDMI Adapter Stand with Integrated Handle Micro USB Cable |
Barcode Scanner
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
