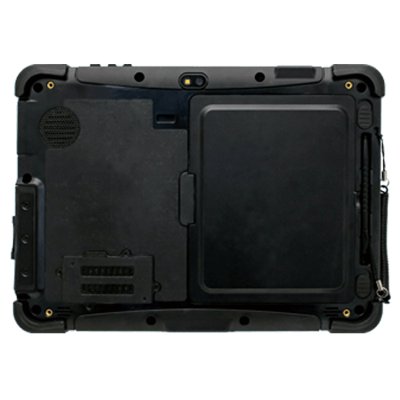

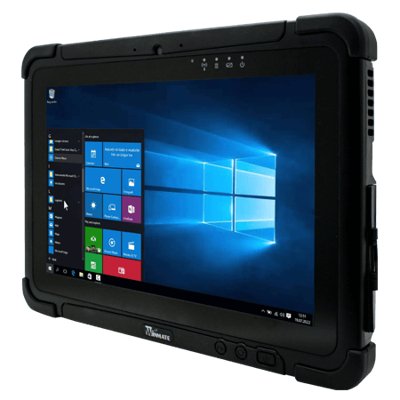

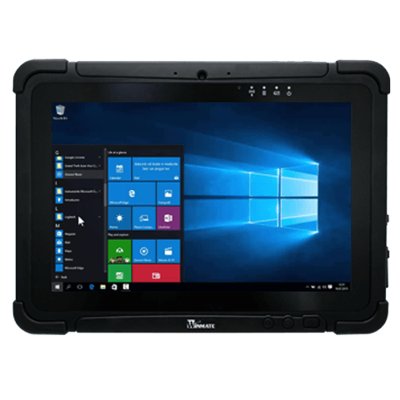

10.1 Windows ATEX Rugged Tablet with IntelR Core i5-1235U
Vlastnosti:
- Intel® Core™ i5-1235U Alder Lake processor
- 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
- Sunlight readable with antiglare solution
- Allows cross-zone operations in hazardous and explosive environments
- Ex Certificate: Class I Division 2 (CID2), ATEX/IECEx Zone 2
- USB Type C port support PD 3.0 and ALT mode
Display
| Resolution | 1920×1200 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 85,85,85,85 |
| Type | Projected Capacitive Multi Touch |
| Viewability | Anti-Glare touch treatment |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Intel Core i5-1235U (up to 4.4GHz) |
| Memory | 8GB DDR5 SDRAM 16GB DDR5 SDRAM (Optional) 32GB DDR5 SDRAM (Optional) |
| Storage | 256GB M.2 NVMe SSD Additional storage available with micro SDXC card slot 512GB M.2 NVMe SSD (Optional) 1TB M.2 NVMe SSD (Optional) 2TB M.2 NVMe SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
Camera
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
Mechanical
| Dimension | 271.5 x 198.2 x 23.3 mm |
| Weight | 1.2 kg |
| Cooling System | Fan Design |
IO Ports
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In and ALT mode) |
| SD Card Slot | 1 x Micro SDXC slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Audio | 1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker |
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810H Method 516.8 4 ft |
Certification
| Certification | CE, FCC Hazardous Location Safety: IECEx Class I, Zone 2, Ex ic IIC T4 Gc ATEX Class I, Zone 2, II 3G Ex ic IIC T4 Gc Class I, Division 2, Groups A, B, C, D, T4 |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
Control
| Button | 1 x Power, 1 x Home 2 x volume key 2 x Programmable function Keys |
Power
| Battery | Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P) |
| Battery Operating Time | Standard. Battery: 8 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
| Accessory | Adapter and Power Cord Capacitive Stylus Standard Battery |
| Optional Accessory | Desk Dock (Optional) Vehicle Dock (without VGA output) (Optional) Vehicle Cradle (Optional) Vehicle Charger (Optional) Hand Strap (Optional) Shoulder Strap (Optional) Carry Bag (Optional) |
Barcode Scanner
| Barcode Scanner | 1D/2D barcode reader (Optional) |
