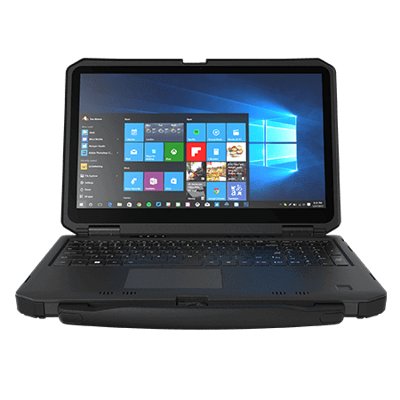

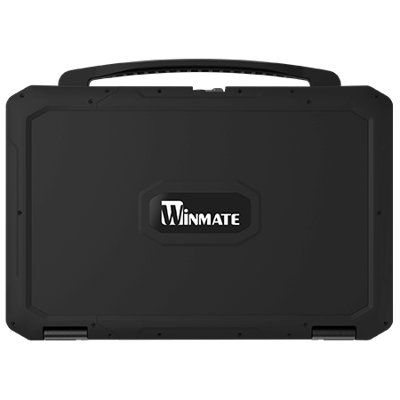

15.6inch Rugged Laptop with Intel® Raptor Lake Processor
Vlastnosti:
- 13th generation Intel® Processor Family – Raptor Lake Processor
- 15.6” FHD Panel resolution with PCAP touch

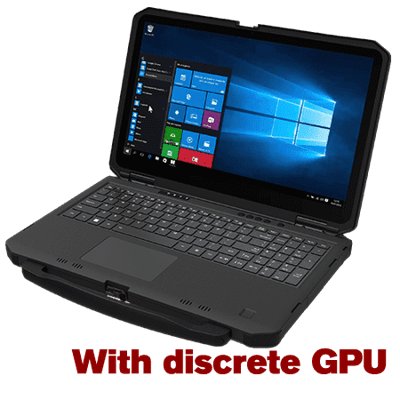

- Optional discrete Nvidia Graphic card
- Dual battery with hot-swappable design for whole-day-work
- Anti-glare technology for sunlight readability
- Magnesium alloy enclosure with double injection for drop protection
- IP65 waterproof and dustproof
- Utilizing Nvidia T1000 and A2000 Graphic Cards
Display
| Bonding | Optical Bonding for Sunlight Viewability |
| Type | Projected Capacitive Multi Touch |
| Resolution | 1920×1080 |
| Size | 15.6 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 85,85,85,85 |
System Specification
| Processor | Intel Core i5-12500H (up to 4.5GHz) Intel Core i7-13700H (up to 5.0GHz) (Optional) Intel Core i9-13900H (up to 5.4GHz) (Optional) |
| Memory | 8+8GB DDR5 SDRAM 16+16GB DDR5 SDRAM (Optional) 32+32GB DDR5 SDRAM (Optional) |
| Storage | 256GB M.2 NVMe SSD 512GB M.2 NVMe SSD (Optional) 1TB M.2 NVMe SSD (Optional) 2TB M.2 NVMe SSD (Optional) 2nd storage available with up to 2TB M.2 NVMe SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise SAC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Smart Card Reader | Smart Card Reader |
| Fingerprint Scanner | Fingerprint scanner (Optional) |
Camera
| Front Camera | 2MP front camera |
Mechanical
| Dimension | 387.6 x 256 x 38.8 mm |
| Weight | 2.8kg |
| Cooling System | Fan design |
IO Ports
| USB Port | 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) |
| Serial Port | 1 x DB9 (RS232 / RS422 / RS485, software switchable) |
| SD Card Slot | 1 x Micro SDXC Slot |
| SIM Card Slot | 1 x Nano SIM card slot |
| Video | 1 x HDMI 4K Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack Dual Digital Mic With Noise Cancellation Dual Speaker |
| LAN | 2 x RJ45-10/100/1000 GigaLAN port |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810H Method 516.8, 3 ft |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default) MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
Certification
| Certification | CE, FCC |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
Control
| Button | 1 x Power, 4 x Programmable Function Keys |
Power
| Battery | Hotswappable 2 x 11.55V typ. 3220 mAh LiIon Battery (3S1P) |
| Battery Operating Time | Standard. Battery: 11 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz, 230W / 19V DC |
Accessory
| Accessory | Adapter and Power Cord Standard Battery |
