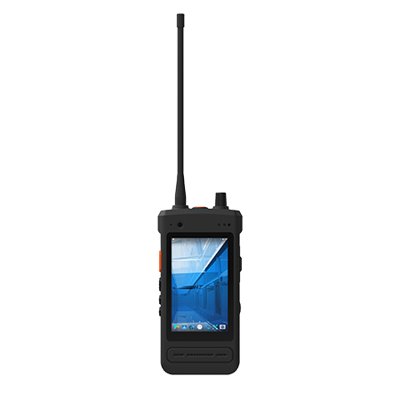

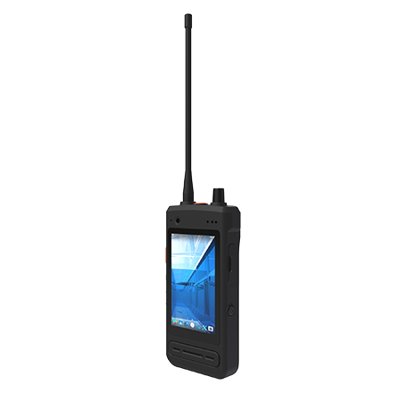

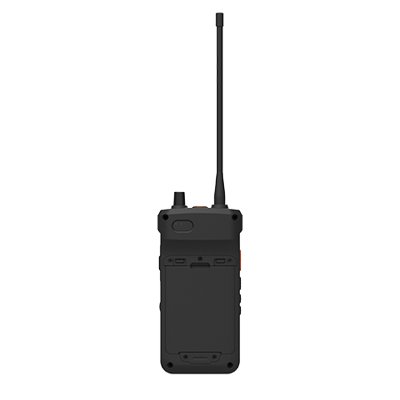

4" Multi-mode PoC Radios
Vlastnosti:
- Multi-mode PoC Radios
- Cortex-A73 + Cortex-A53 (Octa-core up to 2.0 GHz)
- 4" 800 x 480 Panel with direct optical bonding
- Supports Android 11
- Support DMR and optional VHF / UHF Radio
Display
| Bonding | Optical Bonding for Sunlight Viewability |
| Resolution | 480×800 |
| Size | 4 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 400 nits |
| View Angles | 80,80,80,80 |
| Type | Projected Capacitive Multi Touch |
System Specification
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
Radio Transceiver
| Channel Spacing | DMR: 12.5kHz, Analog: 12.5/25kHz |
| TX Power | 4W/0.5W |
| RX Sensitivity | ≤-121dBm |
| Audio Power Output | 4W/0.5W |
| Digital Vocoder Type | AMBE |
| Frequency Range | VHF：136~174MHz or UHF：400~480 MHz |
Camera
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
Mechanical
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 350g |
IO Ports
| USB Port | 1 x USB Type C OTG (support charging) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out) 1 x Built-in Mic 1 x Speaker |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
Power
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 12V |
| Adapter | 12V PD Adapter with USB TypeC |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | UHF/VHF Antenna Universal Adapter Battery |
| Optional Accessory | USB Type-C Cable Micro SD Card Battery Charging Dock 2 bay Battery Charging Dock 6 bay |
