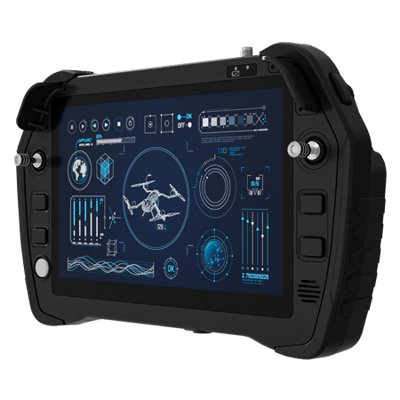

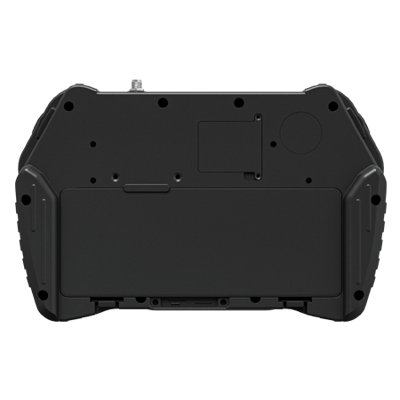

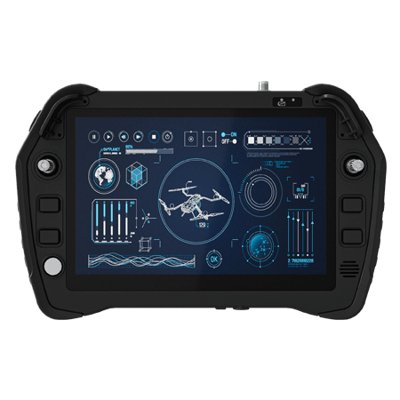

8″ Intel® Core i5-1235U Rugged Robotic Controller
Vlastnosti:
- 8” 1920 x 1200 IPS LED Panel with direct optical bonding
- Intel® Core™ i5-1235U processor
- Sunlight readable with antiglare solution
- Supports WIFI, BT and optional 4G/5G
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
Display
| Bonding | Optical Bonding for Sunlight Viewability |
| Type | Projected Capacitive Multi Touch |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Resolution | 1920×1200 |
| Size | 8.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 85,85,85,85 |
System Specification
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) Intel Core i3/i7 Processor (Optional) |
| Memory | 8GB DDR5 SDRAM, up to 32GB |
| Storage | 256GB SSD 512GB SSD (Optional) 1TB SSD (Optional) 2TB SSD (Optional) |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) (Optional) Windows 11 IoT Enterprise LTSC (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) 5G (Optional) |
| GNSS | GPS/GLONASS |
Mechanical
| Dimension | 259.8 x 166.1 x 44.2 mm |
| Cooling System | Fan Design |
IO Ports
| USB Port | 1 x USB 3.0 (Type-A) 1 x USB 3.2 Gen 2 x 1 (Type C) |
| Video | 1 x micro HDMI output |
| Audio | 1x Speaker |
| LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
Control
| Button | 2 x joystick 2 x Roller switch 6 x buttons |
Power
| Battery | 11.4V, typ. 3500 mAh LiIon Rechargeable Internal Battery (3S1P) 11.4V, typ. 4750 mAh LiIon Rechargeable Secondary Battery (3S1P) |
| Power Rating | 1 x USB (Type C) (Charging) |
| Adapter | PD Adapter 100W |
Accessory
| Accessory | 1 x PD Adapter 100W 1 x M8 LAN external cable(2M) 1 x Power Cord |
| Optional Accessory | shoulder strap(Optional) |
