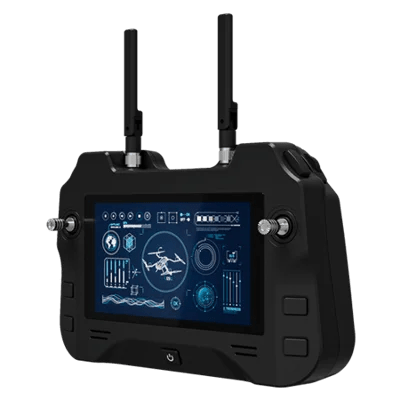

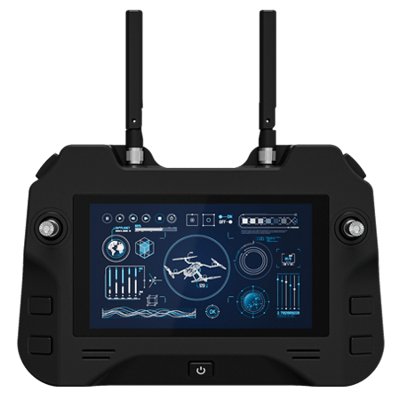

5.5″ ARM A78 + A55 Rugged Robotic Controller
Vlastnosti:
- 1920 x 1080 TFT LCD Panel with direct bonding
- Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
- Compact and ergonomic design
- Supports WIFI/BT
Display
| Bonding | Optical Bonding for Sunlight Viewability |
| Resolution | 1920×1080 |
| Size | 5.5 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 80,80,80,80 |
| Type | Projected Capacitive Multi Touch |
| Viewability | Anti-Glare touch treatment |
| Touch Mode | Support Hand / Gloves and Rain Mode |
System Specification
| Processor | Genio 510 2 x A78 2.2GHz + 4 x A55 2.0GHz |
| Memory | 4GB |
| Storage | 64GB eMMC |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
Mechanical
| Dimension | 205.34 x 135.1 x 46 mm |
| Cooling System | Fan Design |
IO Ports
| USB Port | 1 x USB 3.0 (Type C) |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 2TB) |
| Video | 1 x micro HDMI output |
| Audio | 2x Speaker |
| LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
Control
| Button | 2 x joystick 2 x Roller switch 6 x buttons |
Power
| Battery | 7.4V, typ. 2950mAh LiIon Rechargeable Internal Battery (2S1P) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
| Accessory | 1 x Adapter 19V/65W 1 x M8 LAN external cable(2M) 1 x Power Cord |
| Optional Accessory | shoulder strap(Optional) |
