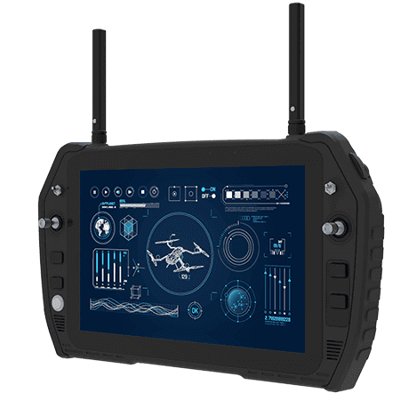

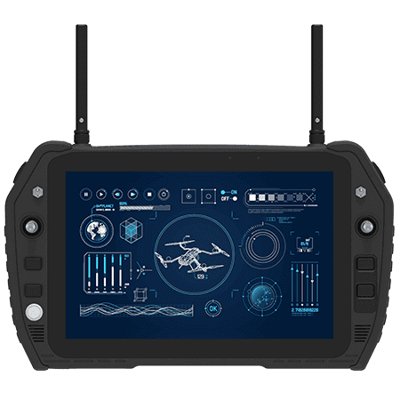

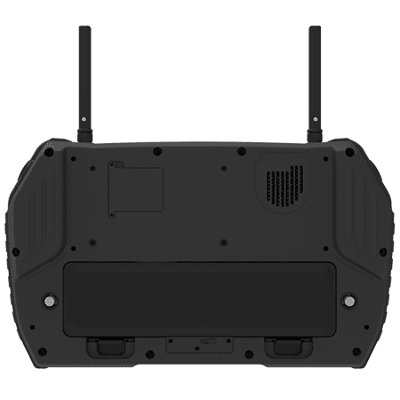

10.1? Qualcomm® 6490 Rugged Robotic Controller
Vlastnosti:
- 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
- Qualcomm® 6490 (Octa-core2.7 GHz) processor
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
- Supports WIFI, BT and optional 4G/5G
- With one removable battery
Display
| Resolution | 1920×1200 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Type | Projected Capacitive Multi Touch |
| Viewability | AG+AF touch treatment |
System Specification
| Processor | Qualcomm® 6490 (Octa-Core 2.7GHz) |
| Memory | 6 GB |
| Storage | 128GB |
| Operating System | Android 13.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) 5G (Optional) |
| GNSS | GPS/GLONASS |
Mechanical
| Dimension | 317.75 x 188.87 x 35.8 mm |
| Cooling System | Fan Design |
IO Ports
| USB Port | 1 x USB 3.0 (Type-A) 1 x USB 3.1 (Type C) |
| Video | 2 x micro HDMI output |
| Audio | 2x Speaker |
| LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
Control
| Button | 2 x Toggle Switch 2 x joystick 2 x Roller switch 6 x buttons |
Power
| Battery | 11.1V, typ. 6400 mAh LiIon Removable Battery (3S2P) |
| Power Rating | 1 x USB (Type C) (Charging) |
| Adapter | PD Adapter 100W |
Accessory
| Accessory | 1 x PD Adapter 100W 1 x M8 LAN external cable(2M) 1 x Power Cord |
| Optional Accessory | shoulder strap(Optional) |
Vyhrazujeme si právo na chyby v popisu. Parametry produktu si prosíme vždy zkontrolujte v datasheetu.
