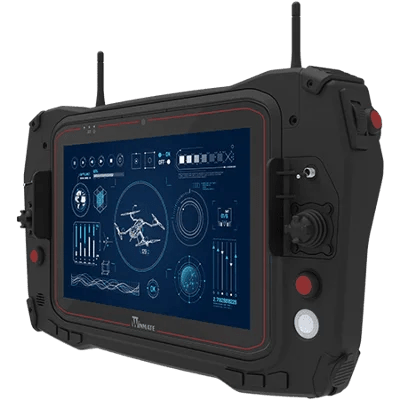

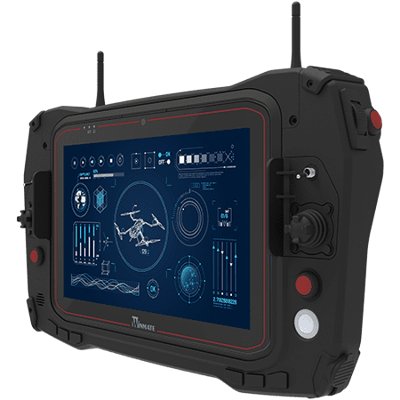

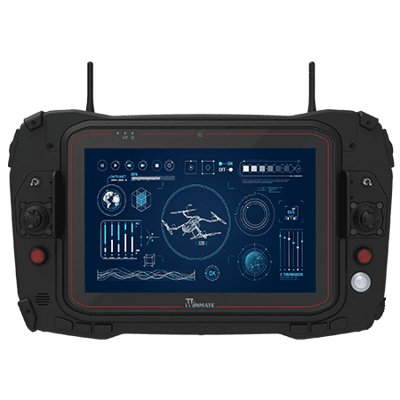

10.1 ARM A73 + A53 Rugged Handheld Controller
Vlastnosti:
- Low Latency video SW decoder for real-time high-resolution video viewing
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
- Supports optional WIFI, BT and 4G
- With dual antennas, providing improved wireless connectivity and stability
- With a removable second battery and a battery life of over 10 hours is a must-have tool for serious UAV pilots
Display
Resolution | 1920×1200 |
Size | 10.1 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 800.0 nits |
View Angles | 85,85,85,85 |
Bonding | Optical Bonding for Sunlight Viewability |
Type | Projected Capacitive Multi Touch |
Viewability | Anti-Glare touch treatment |
Touch Mode | Support Hand / Gloves and Rain Mode |
System Specification
Processor | ARM A73 x 4 (2.0 GHz)+A53 x 4 (2.0 GHz) |
Memory | 4GB |
Storage | 32GB |
Operating System | Android 11.0 |
WLAN | Support |
BT | Support |
WWAN | 4G/LTE (Optional) |
GNSS | GPS/GLONASS |
Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
Camera
Front Camera | 8MP Camera |
Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
Mechanical
Dimension | 366 x 219 x 49.5 mm |
Cooling System | Fan Design |
IO Ports
USB Port | 1 x USB 2.0 |
Video | 1 x HDMI output |
Audio | 1x Speaker |
Environment
Operating Humidity | 10% to 90% RH, non-condensing |
Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
Shock | MIL-STD-810H Method 516.8 Procedure I |
Vibration | MIL-STD-810H Method 514.8 Procedure I |
IP rating | IP65 |
Certification
Certification | CE, FCC |
Security Function
SOTI MobiControl | SOTI MobiControl Compliance |
Kensington Lock | Kensington Lock Support |
Control
Button | Left Side: 1x joystick 2x roller switch 1x 2 band toggle switch 1x button (front side) 1x control button (rear side) Right Side: 1x joystick 1x roller switch 1x camera button 1x power button 1x 2 band toggle switch 1x button (front side) 1x control button (rear side) |
Power
Battery | 11.4V, typ. 3500 mAh LiIon Rechargeable Internal Battery (3S1P) 11.4V, typ. 3500 mAh LiIon Rechargeable Secondary Battery (3S1P) |
Power Rating | 19V DC |
Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
Accessory | Adapter and Power Cord |
Optional Accessory | Battery Charger (Optional) Stylus (Optional) |
Communication Link
Antenna | 2x 3dBi Antennas |
Frequency | 2.4GHz |
Output Power | 1W, Adjustable |
