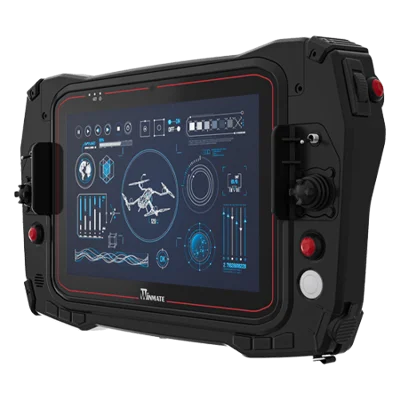

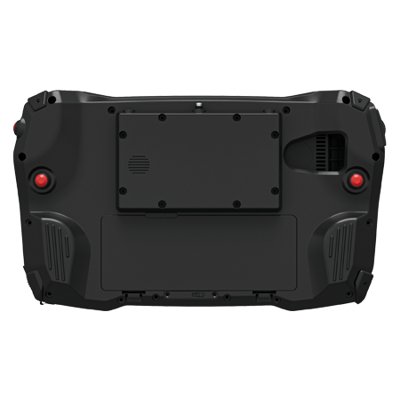

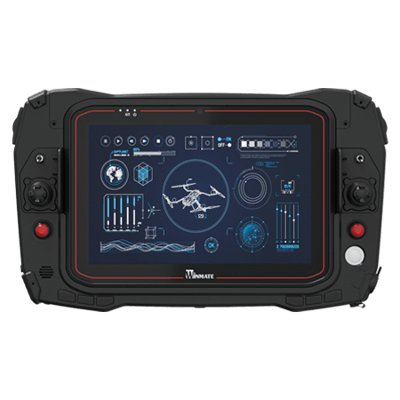

10.1 ARM A78 + A55 Rugged Robotic Controller
Vlastnosti:
- 10.1” 1920×1200 LED Panel with PCAP Touch
- Android 13.0/Linux Ubuntu
- 4G RAM + 64G eMMC
- ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz
- Supports WIFI, BT and optional 4G
- All-weather, dust, and water-resistant design (IP65). MIL-grade drop, Shock and vibration
Display
Resolution | 1920×1200 |
Size | 10.1 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 800.0 nits |
View Angles | 85,85,85,85 |
Type | Projected Capacitive Multi Touch |
Viewability | Anti-Glare touch treatment |
Touch Mode | Support Hand / Gloves and Rain Mode |
System Specification
Processor | Genio 510 2 x A78 2.2GHz + 4 x A55 2.0GHz |
Memory | 4GB |
Storage | 64GB eMMC |
Security | Trusted Platform Module (TPM) 2.0 |
Operating System | Android 13.0 Linux Ubuntu |
WLAN | Support |
BT | Support |
WWAN | 4G (Optional) |
GNSS | GPS/GLONASS |
Sensors | Light Sensor |
Camera
Front Camera | 2MP Front Camera |
Mechanical
Dimension | 369.35 x 221.5 x 67.3 mm |
Weight | 2.4kg |
Cooling System | Fan Design |
IO Ports
USB Port | 1 x USB 2.0 |
SD Card Slot | 1 x Micro SD Card Slot (Max to 2TB) |
Video | 2 x micro HDMI output |
Audio | 1x Speaker |
LAN | 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps) |
Environment
Operating Humidity | 10% to 90% RH, non-condensing |
Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
Shock | MIL-STD-810H Method 516.8 Procedure I |
Vibration | MIL-STD-810H Method 514.8 Procedure I |
IP rating | IP65 |
Certification
Certification | CE, FCC |
Control
Button | Left Side: 1x joystick 2x roller switch 1x 2 band toggle switch 4x button (front side) 1x control button (rear side) Right Side: 1x joystick 1x roller switch 5x button (front side) 1x power button 1x 2 band toggle switch 1x control button (rear side) |
Power
Battery | 11.4V, typ. 3500 mAh LiIon Rechargeable Internal Battery (3S1P) 11.4V, typ. 3500 mAh LiIon Rechargeable Secondary Battery (3S1P) |
Power Rating | 19V DC |
Adapter | 100-240V, 50-60Hz / 19V DC |
Accessory
Accessory | 1 x Adapter 19V/65W 1 x M8 LAN external cable(2M) 1 x Power Cord |
Optional Accessory | Battery Charger (Optional) Stylus (Optional) shoulder strap(Optional) |
