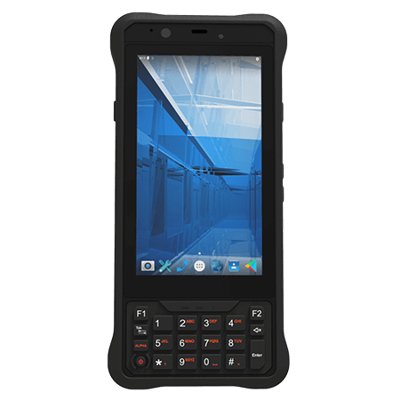

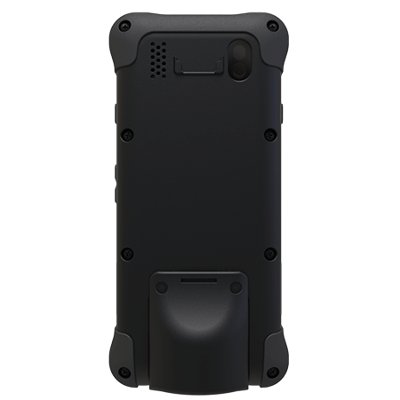

5" Qualcomm® Snapdragon™ 660 Defence Rugged Handheld Computer
Vlastnosti:
- Qualcomm® Snapdragon™ 660 (Octa-core 2.2 GHz), Defence Rugged Handheld Computer
- 5” 1280 x 720 Panel with direct optical bonding
- IP67 waterproof and dustproof
- 8MP Front(Default) / 13MP Rear Camera(Optional)
- With 19 keypad include power key
- With Defence Standard Connector (USB + Power, Optional LAN & Audio)
Display
| Resolution | 1280×720 |
| Size | 5 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 500 nits |
| View Angles | 80,80,80,80 |
| Type | Projected Capacitive Multi Touch |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 9.0 |
| WLAN | Support |
| BT | Support |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
Camera
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
Mechanical
| Dimension | 192 x 92 x 29.25 mm |
| Weight | 370g |
IO Ports
| USB Port | 1 x USB 3.0 Type C OTG (support charging) |
| SD Card Slot | 1 x Internal non-accessible Micro SD Card Slot |
| Audio | 1 x Built-in Mic 1 x Speaker |
| Expansion Port | Military Connector (Optional) |
| Indicator | 1 x LED Indicator |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67, Compliance IEC60592 |
| Drop | MIL-STD-810G Method 516.6, 5 ft |
Certification
| Certification | CE, FCC |
Control
| Button | On-screen QWERTY Keyboard 1 x 19 Physical Keypad Include Power Key 1 x Volume +/-, 2 x Function Button |
Power
| Battery | 3.7V 3900mAh Nonremovable Battery |
| Battery Operating Time | 20Hr |
| Power Rating | 5V |
| Adapter | 5V 1A Adapter with USB TypeC |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | Universal Adapter USB Type-C Cable |
| Optional Accessory | Micro SD Card |
