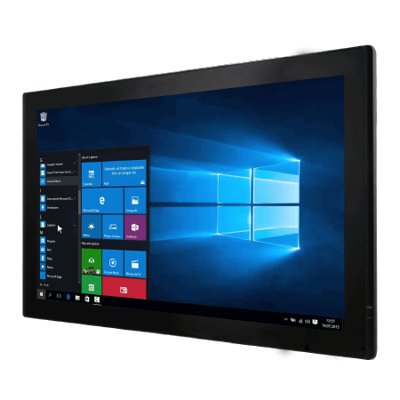

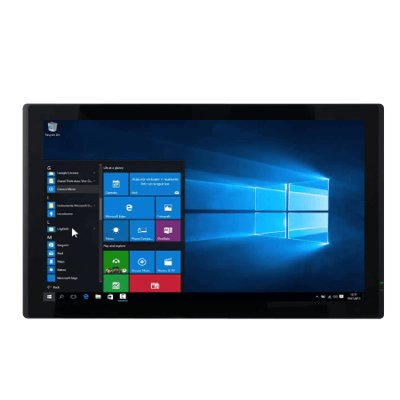

32" Intel® Core™ i5 -8265U Standalone Panel PC HMI
Vlastnosti:
- 32” 1920 x 1080 with PCAP touchscreen, Standalone Panel PC
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 2 x LAN, 1 x COM, 2 x USB 3.0, 1 x HDMI
Display
| Resolution | 1920×1080 |
| Size | 32 inches |
| Contrast Ratio | 4000:1 |
| Panel Brightness | 400 nits |
| View Angles | 89,89,89,89 |
| Active Area | 698.4×392.85 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 64GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
| Ethernet controller | Intel® Ethernet Controller I210-AT + Intel® Ethernet Connection I219-LM |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 799 x 478 x 63.7 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fan Design |
IO Ports
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| LAN | 2 x RJ45-10/100/1000 Mbps |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/120W Power Cord |
Power
| Power Rating | 12V DC in |
Control
| Button | 5 key: Power Up Down Left Right |
