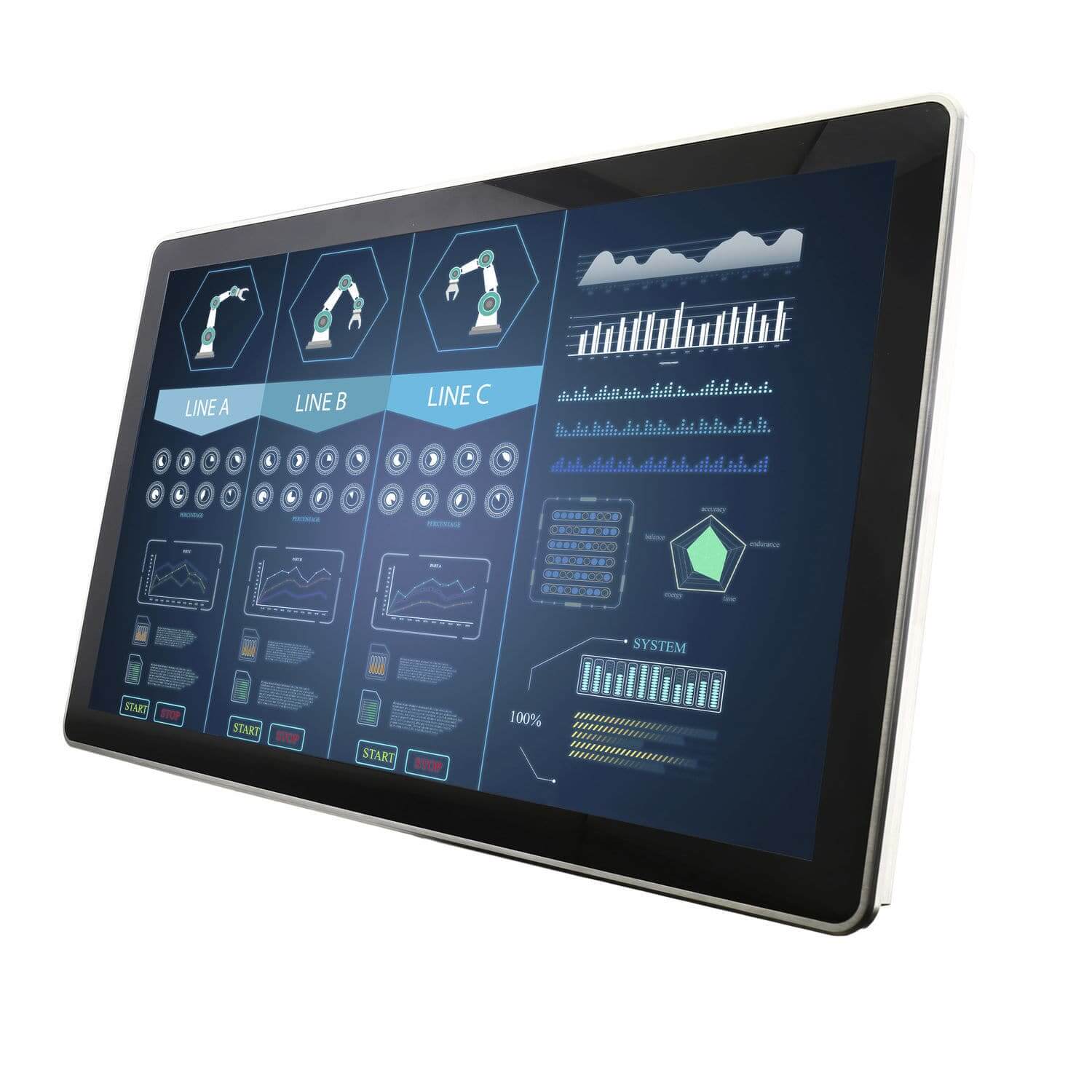

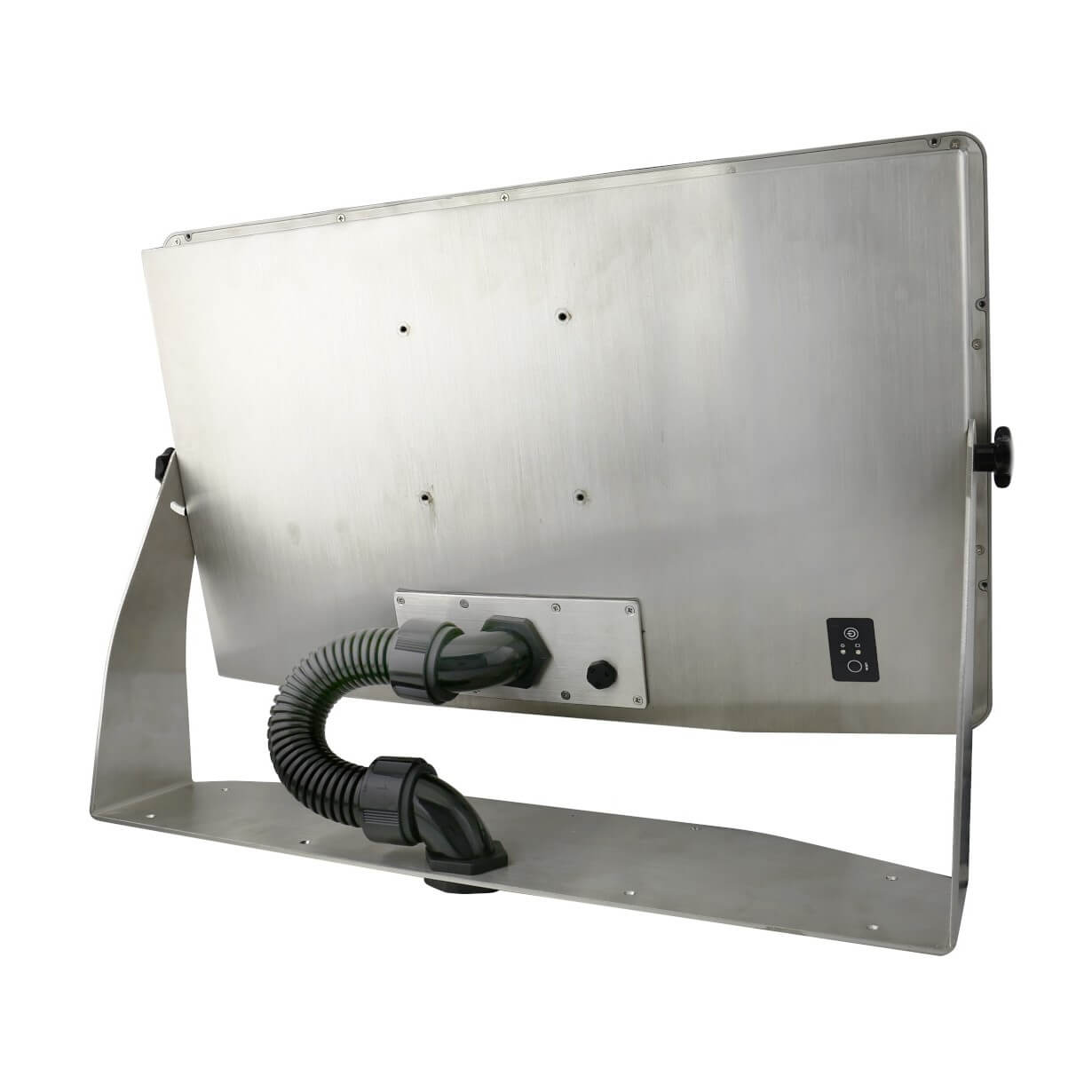

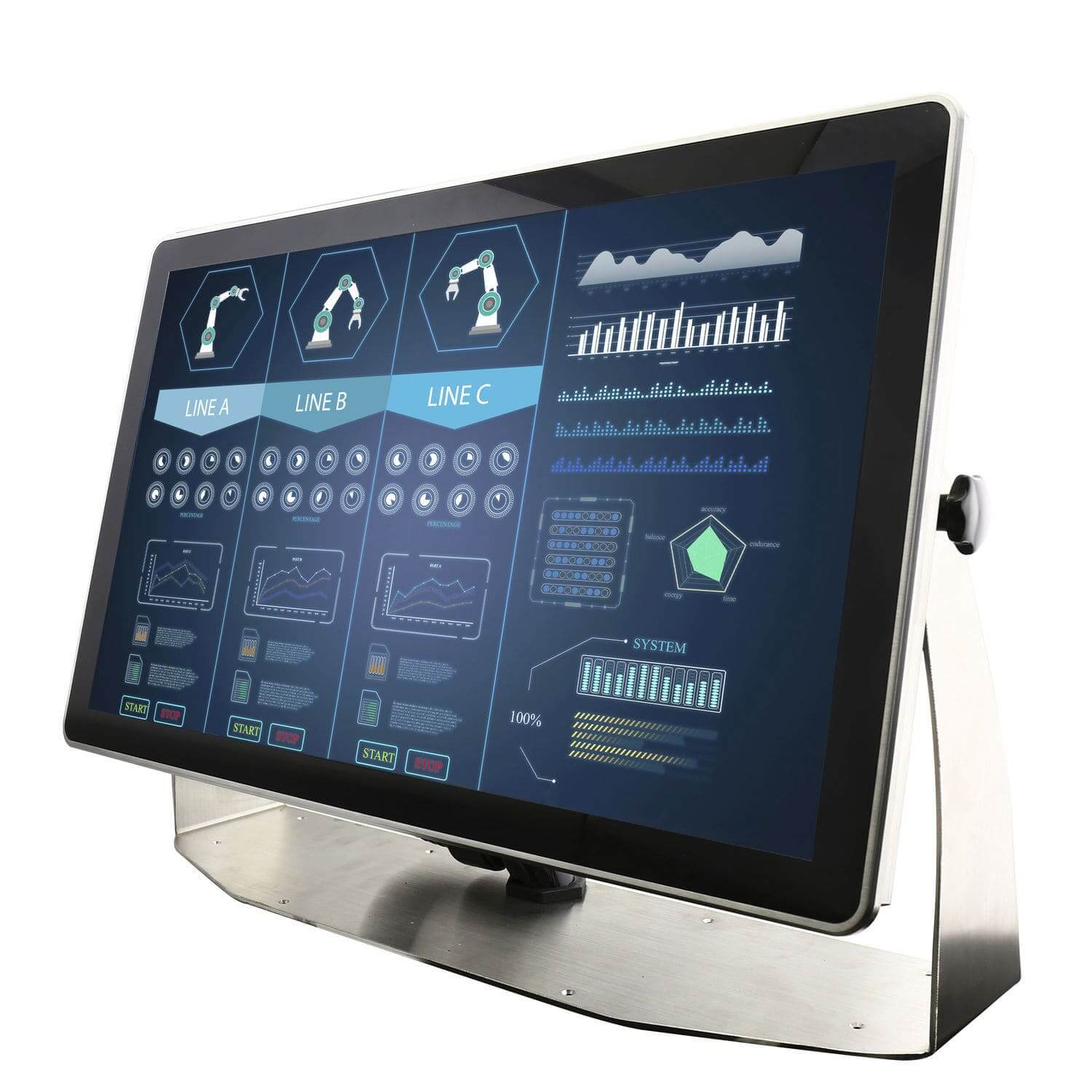

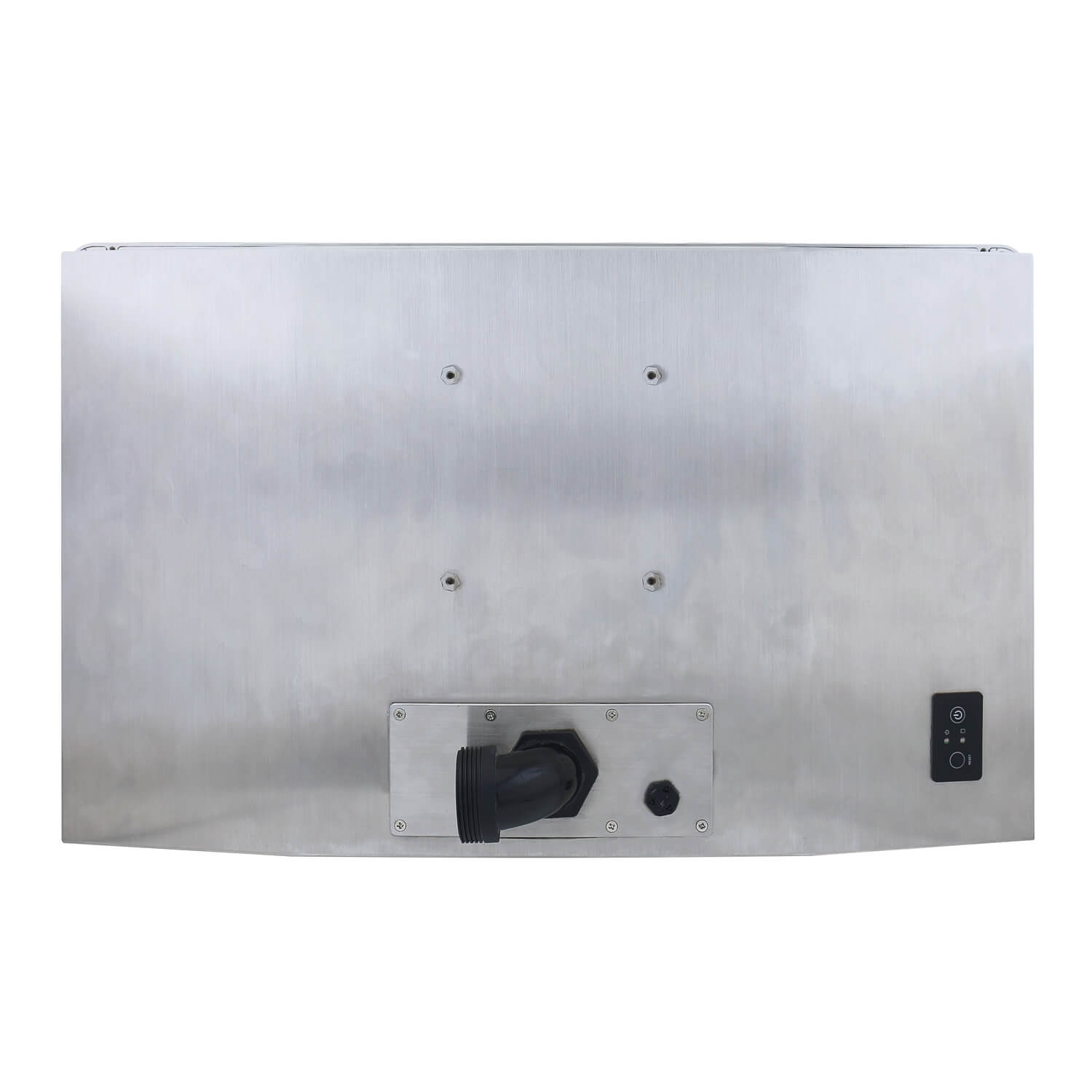

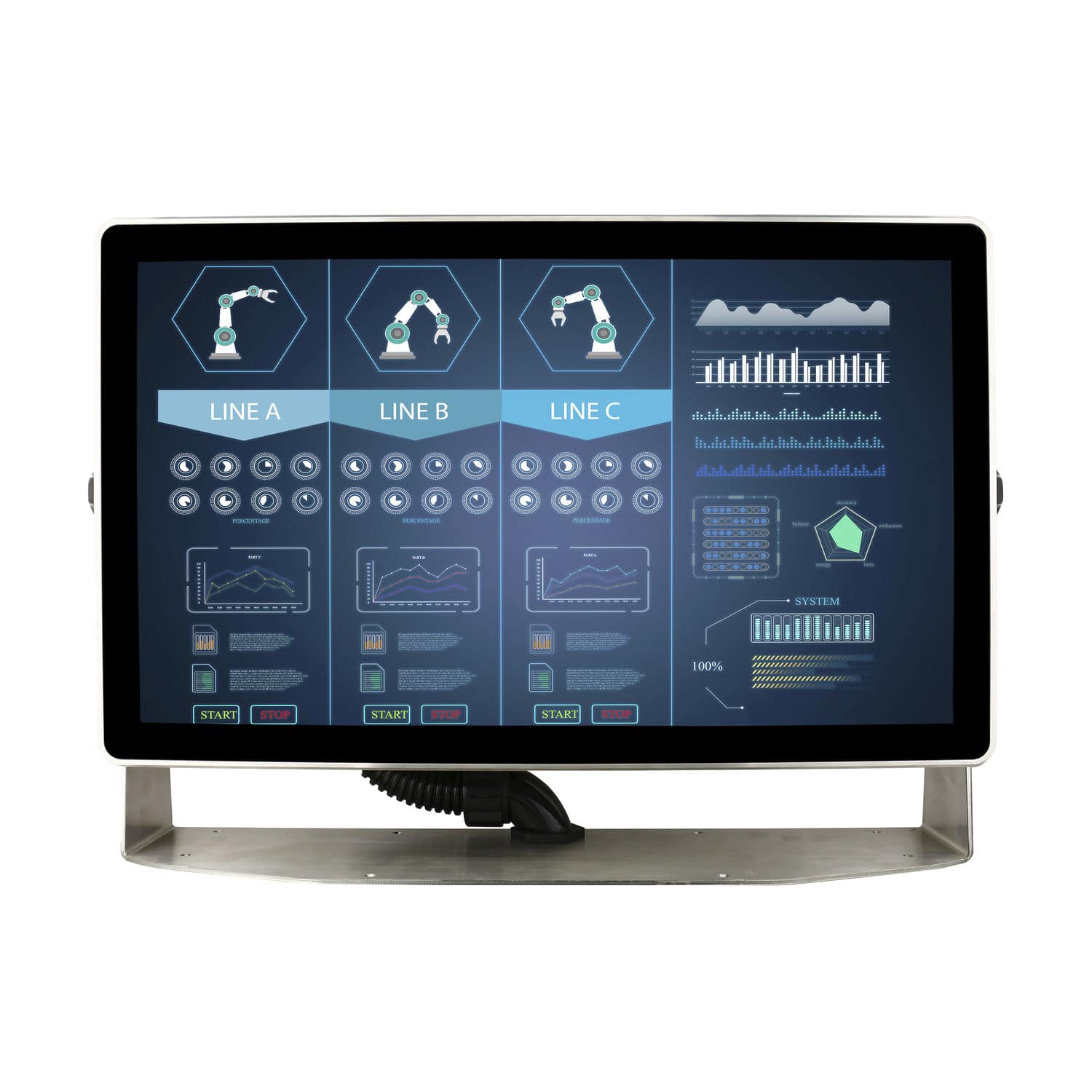

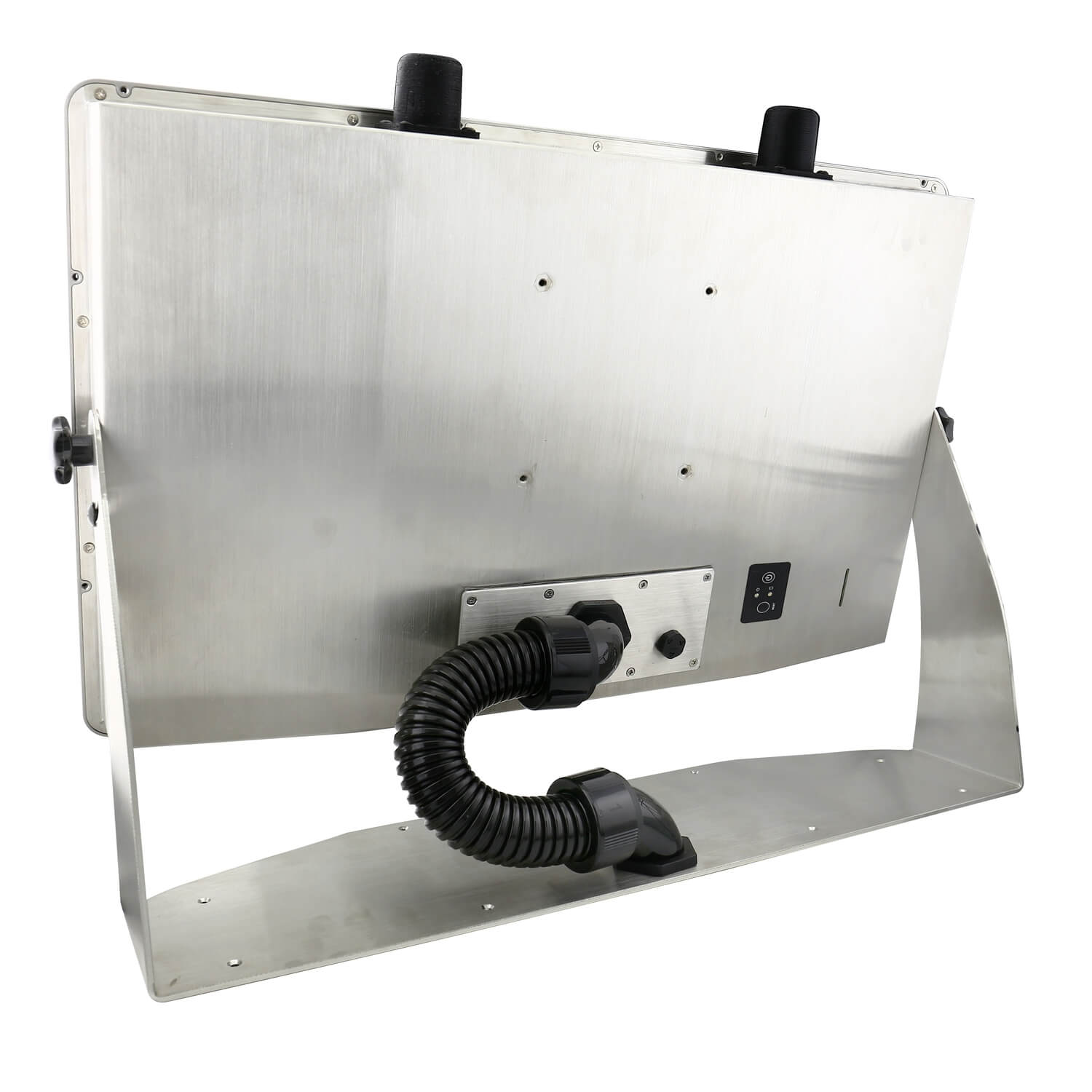

W24L100-SPA269-P, IP69K 23.8-inch Stainless P-Series Display
Features
LCD Panel Specification
| Size | 23.8″ |
| Pixel Pitch | 1920 x 1080 |
| Contrast Ratio | 3000:1 (typ.) |
| Panel Brightness | 250 nits (typ.) |
| Viewing Angle | -89~89(H);-89~89(V) |
| Touch Screen | Projected Capacitive Multi-Touch (P-CAP) Optional anti-glare coating |
| Maximum Colors | 16.7M |
I/O Connectors
| USB Port | 1 x USB for Touch |
| VGA | 1 x VGA |
| HDMI | 1 x HDMI input |
Mechanical and Environment
| Operating Temperature | 0 …C to 45 …C |
| Operating Humidity | 10% to 95% (non condensing) |
| Cooling System | Fanless design |
| Dimension (W x H x D) | 600 x 369 x 56mm |
| IP Proof | IP69K |
Power
| Power Input | 12V DC input with AC to DC Adapter Optional 9~36V DC input with 3 pin phoenix connector |
| Power Consumption | 26W (typ.)(Max.backlight and high CPU load) |
Standard and Certification
| Certification | CE, FCC |
