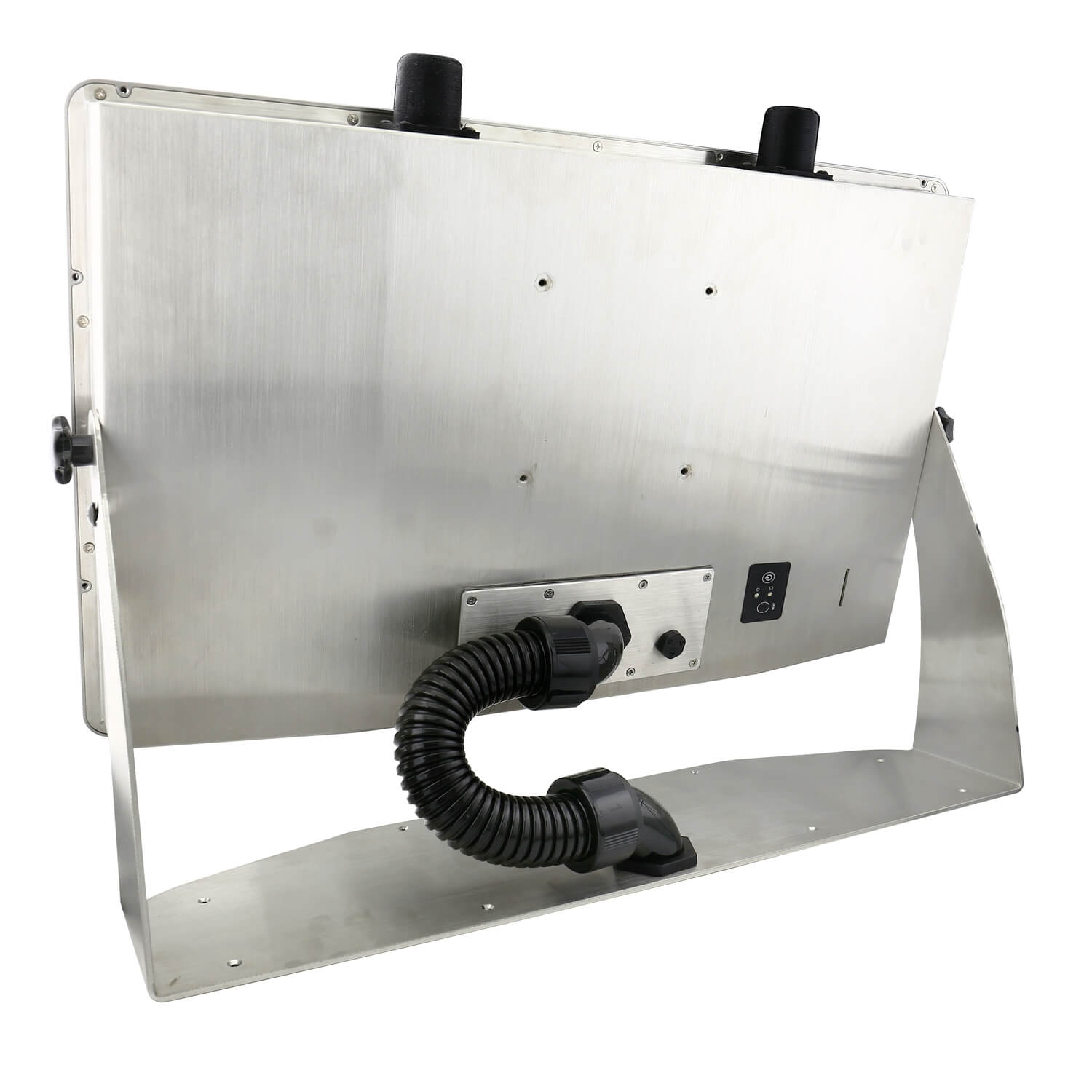

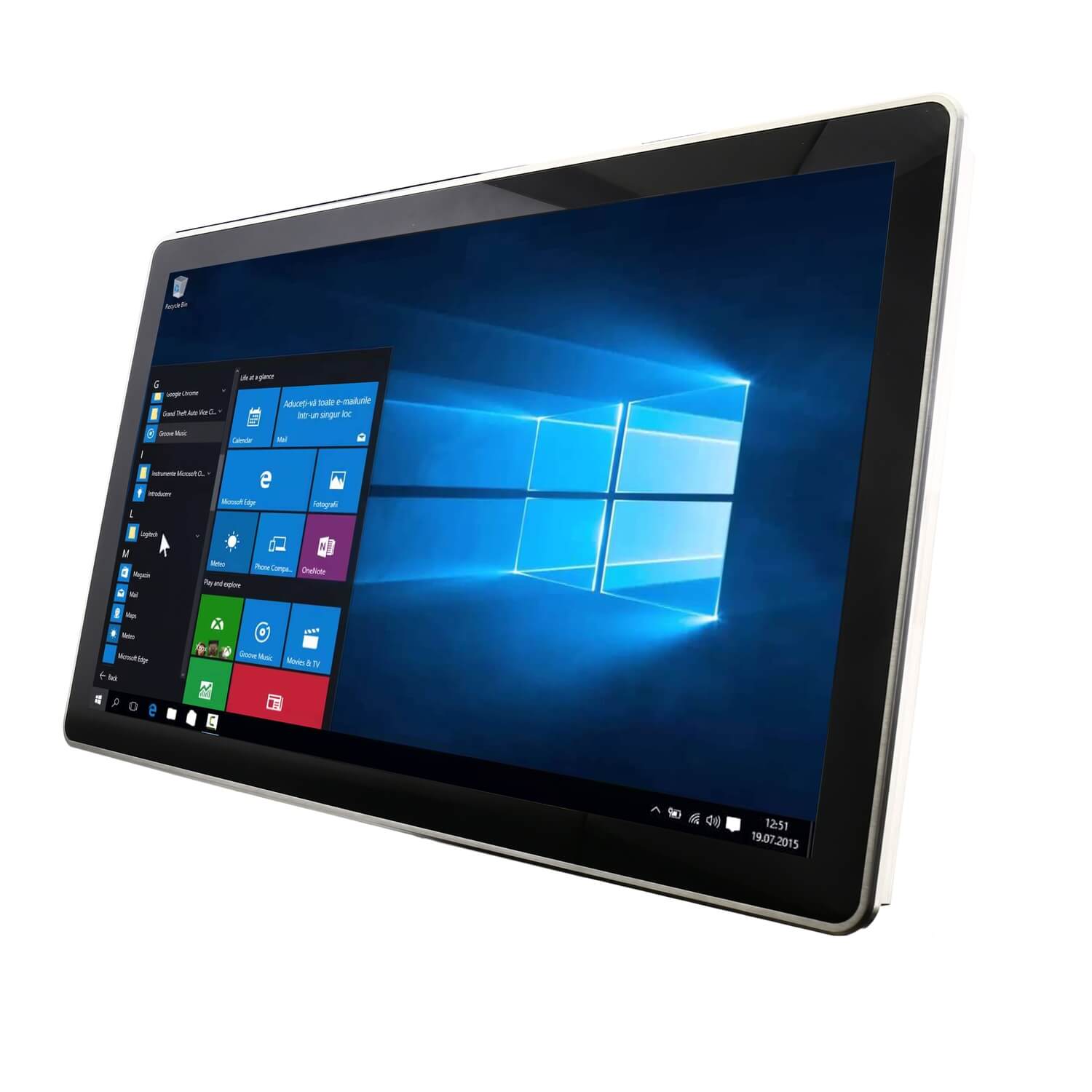

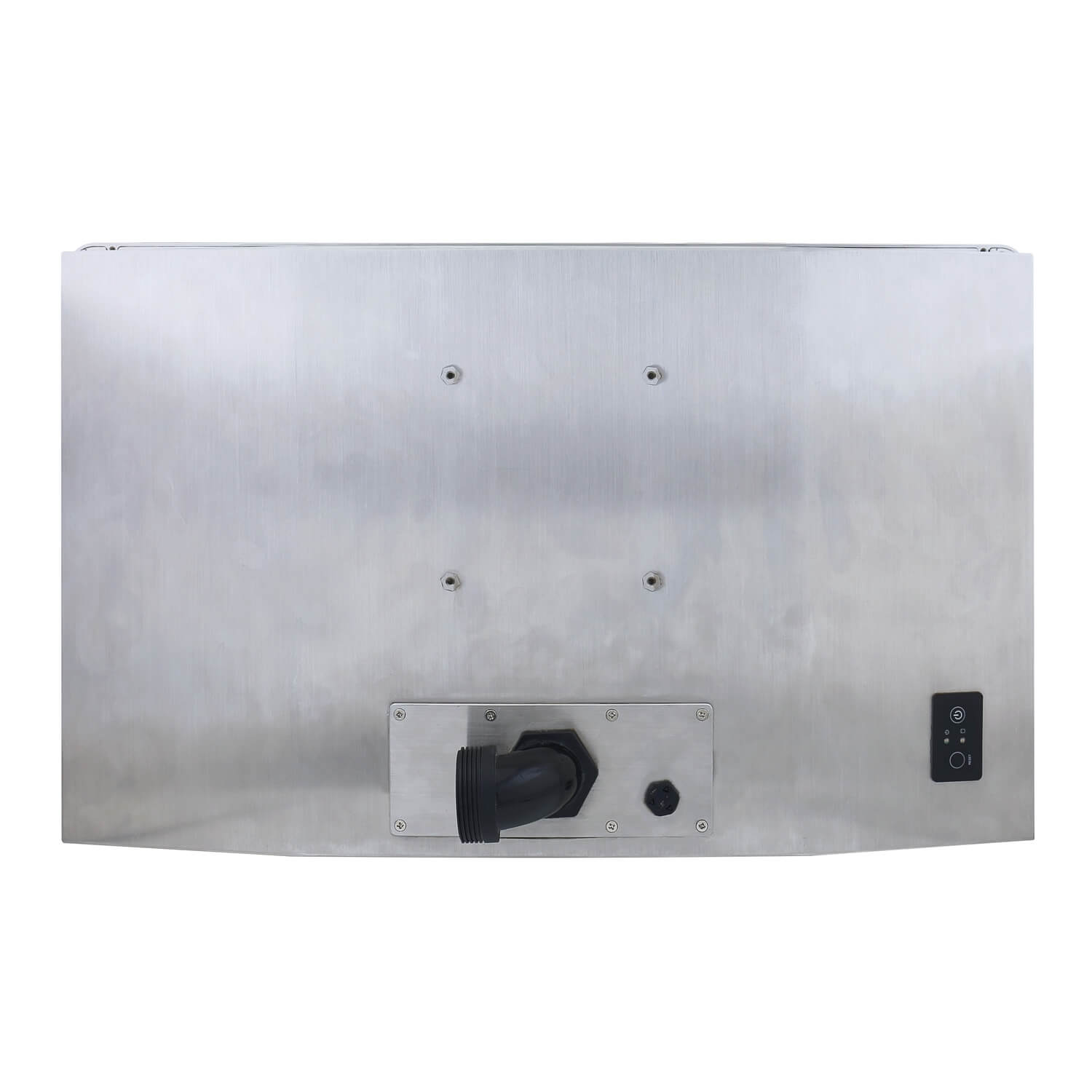

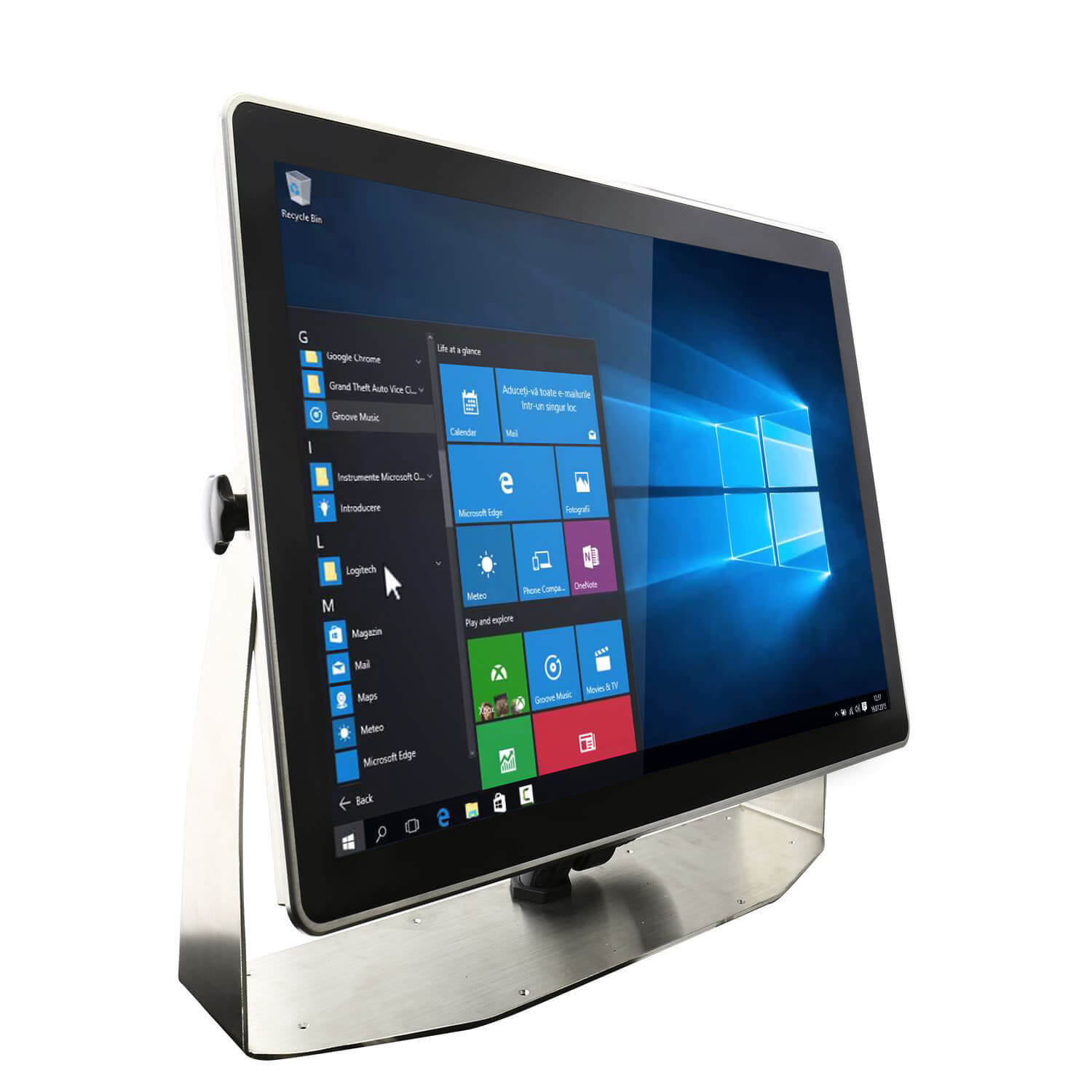

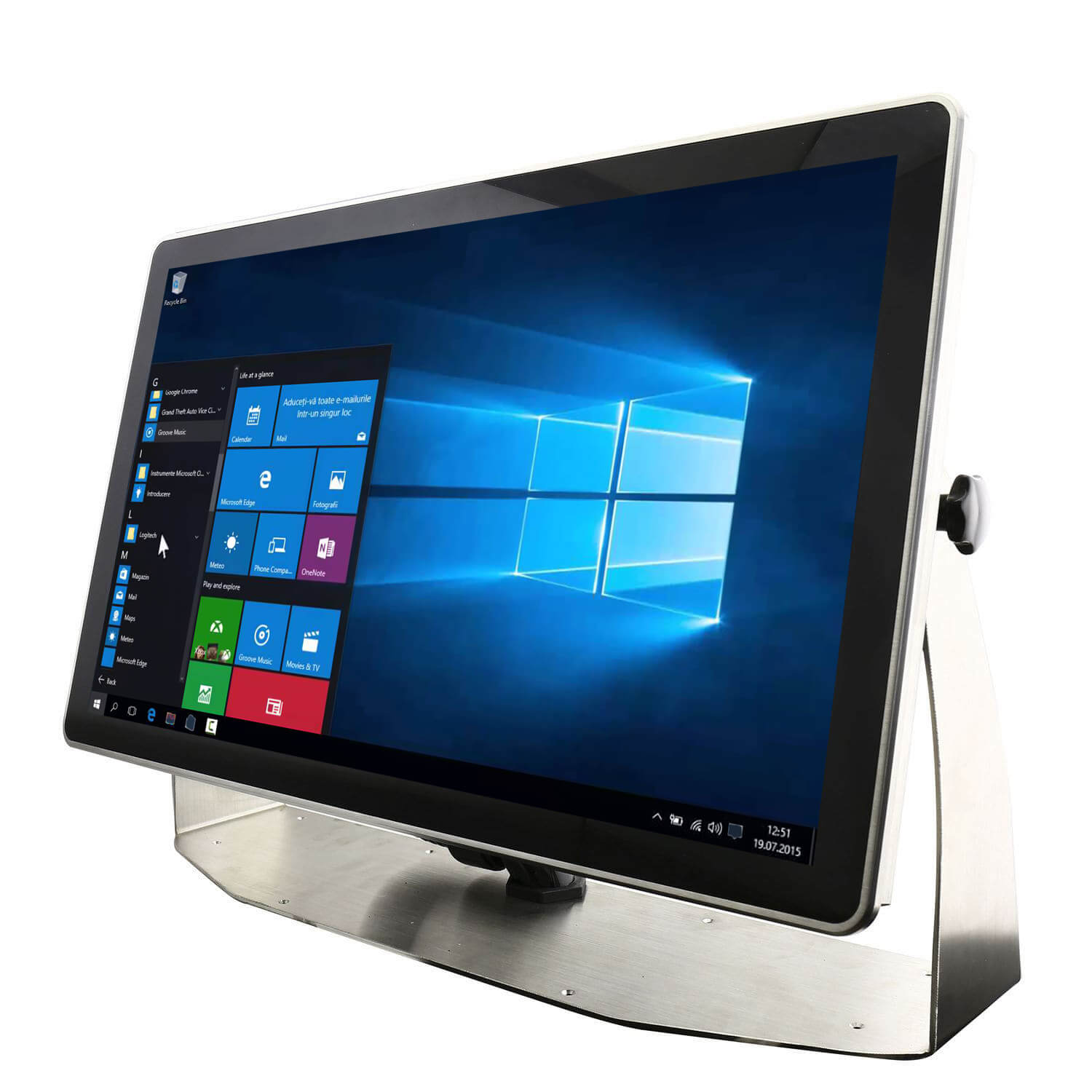

W22IK3S-SPA369-P,IP69K 21.5-inch Stainless P-Series Panel PC
Features
LCD Panel Specification
| Size | 21.5″ |
| Contrast Ratio | 1000:1 (typ.) |
| Panel Brightness | 250 nits (typ.) |
| Viewing Angle | -89~89(H);-89~89(V) |
| Recommend Resolution | 1920 x 1080 |
| Touch Screen | Projected Capacitive Multi-Touch (P-CAP) Optional anti-glare coating |
| Maximum Colors | 16.7M |
System Specification
| Processor | Intel®Core i5-7200U Kaby Lake 2.5GHz |
| Chipset | Intel® SoC Integrated |
| Memory | 4GB DDR4 2133 (Optional up to 16GB) |
| BIOS | Insyde BIOS |
| Ethernet | Intel® Gigabit-LAN Controller I211AT + PHY I219LM |
| Audio | Realtek HD Audio Codec |
| Storage | 64GB B-key M.2 2242 (Optional up to 512GB) |
| OS | Windows 10 IoT Enterprise (Option) Ubuntu 18.04 (Option) |
| Other | Trusted Platform Module (TPM 1.2) |
I/O Connectors
| Serial | 1 x RS-232/422/485 |
| USB Port | 2 x USB 3.0 |
| Ethernet | 2 x RJ 45-10/100/1000 Mbps |
| HDMI | 1 x HDMI 1.4 output |
Mechanical and Environment
| Power Input | 1x 2.5 DC jack |
| Operating Temperature | 0 …C to 45 …C |
| Operating Humidity | 10% to 95% (non condensing) |
| Cooling System | Fanless design |
| Dimension (W x H x D) | 531 x 322 x 56mm |
| IP Proof | IP69K |
Power
| Power Input | 12V DC input with AC to DC Adapter Optional 9~36V DC input with 3 pin phoenix connector |
| Power Consumption | 65W (typ.)(Max.backlight and high CPU load) |
Standard and Certification
| Certification | CE, FCC |
