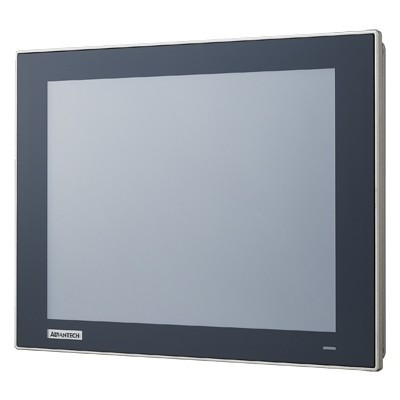

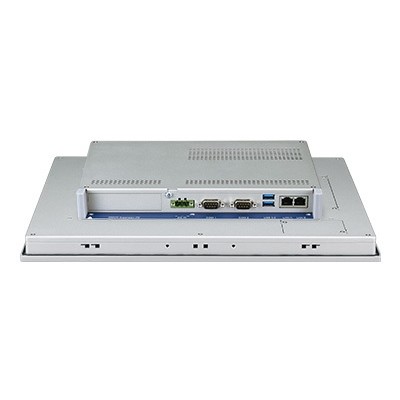

Modular Industrial Thin Client with 12″ XGA LED LCD and Intel(R) Celeron(R)
TPC-2000 series is the first modular model in industrial thin client family. With industrial grade LCD and low power consumption embedded Intel(R) Celeron(R) J3455 1.50GHz processor and 4GB DDR3L SO-DIMM, it provides sufficient display area and ideal computing performance in a compact fanless system. Modular design further gives users the flexibility to expand and configure the system and is effortless to maintain and upgrade. Front panel IP66 compliant for wide array of user environments, glass surface with 6H or above harness for P-Cap or robust 5-wire resistive touch and die-cast Aluminate Alloy front bezel provides robust and reliable enclosure of the system. User-friendly Wi-Fi and NFC antenna are integrated in the front panel with optimal reception and sensitivity for optional Wi-Fi & NFC module. In addition, through the Mini-PCIe slot, Advantech iDoor technology (optional) can provide more I/O connectors, Isolated Digital I/O, the Fieldbus Protocol, 3G/GPS/GPRS Communication and MRAM to fulfill various demands of diverse applications in industrial automation.
Vlastnosti:
- Intel(R) Celeron(R) J3455 1.50GHz Quad-core Processor with 4GB DDR3L SO-DIMM
- Modular design for flexible configuration and easy maintenance and upgrade
- Multiple sizes front panel module offering with P-Cap Multi-touch sensor(12.1″ w/ robust 5-wire resistive touch)
- Industrial grade LED LCD with 50K Lifetime
- Built-in Intelligent Home-key and i-Key for Intuitive UI for P-Cap touch
- Front LED Indicator for system status
- Default supports Full-size mini PCIe, iDoor technology and HDD bay
- IP66 compliant Front Protection & Panel Mounting
- Ready-to-use built-in Wi-Fi antenna and NFC reader in front panel (optionalWi-Fi/ NFC module)
- Integrated Power Isolation to Minimize Field Interference
- AC/DC support (optional power adapter)
- Supports Advantech WISE-PaaS/RMM Remote Device Management Software
- Optional 3 levels of logo customization
