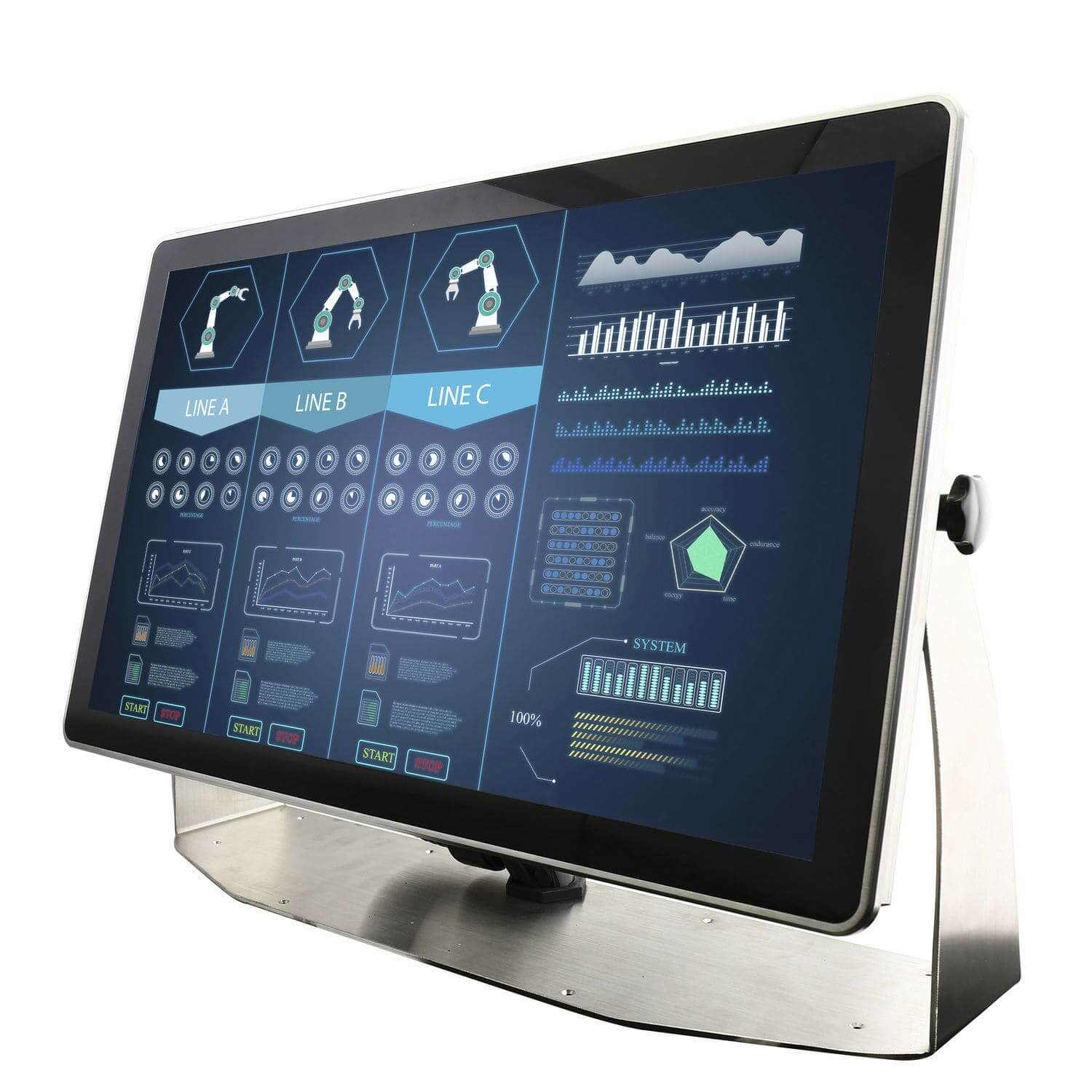

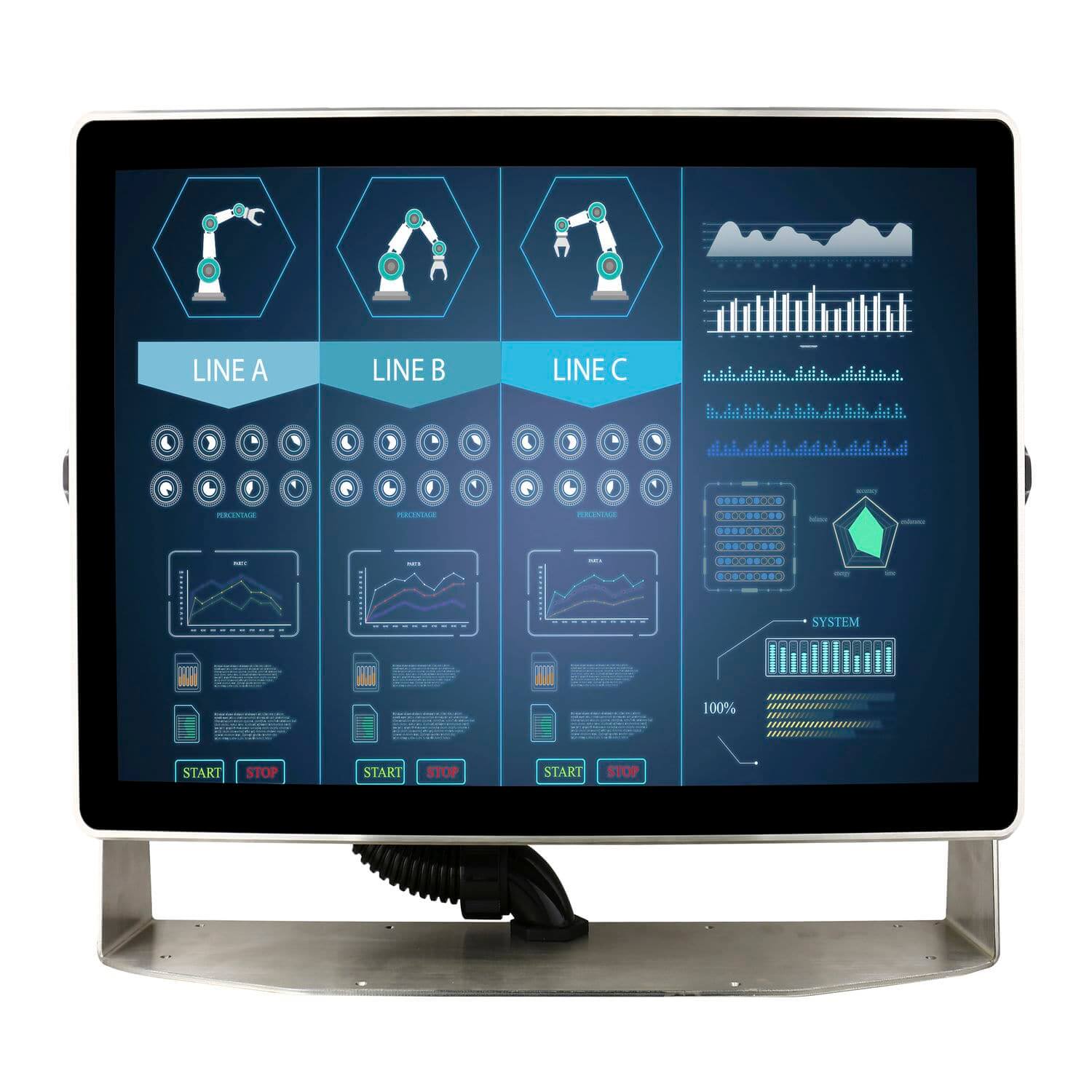

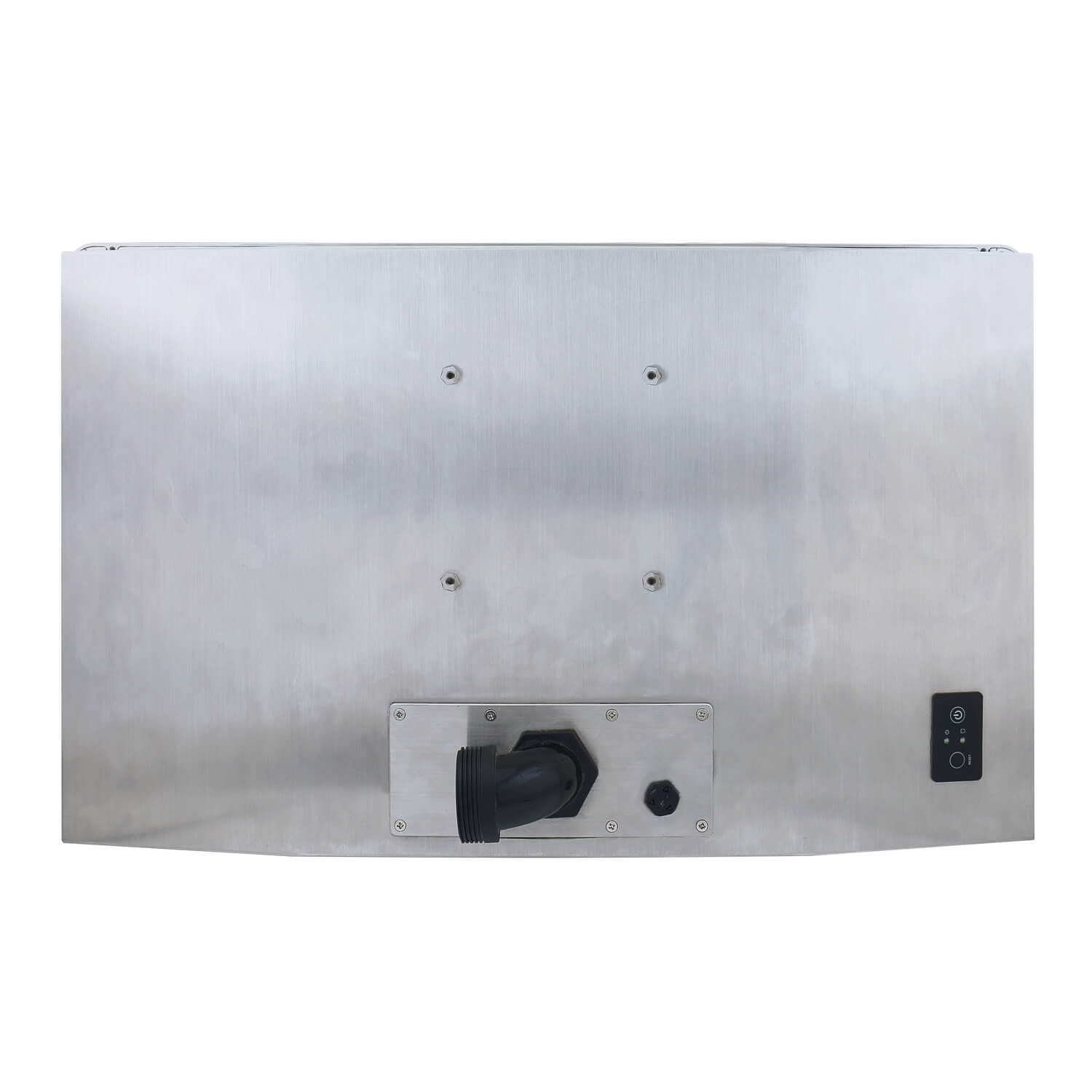

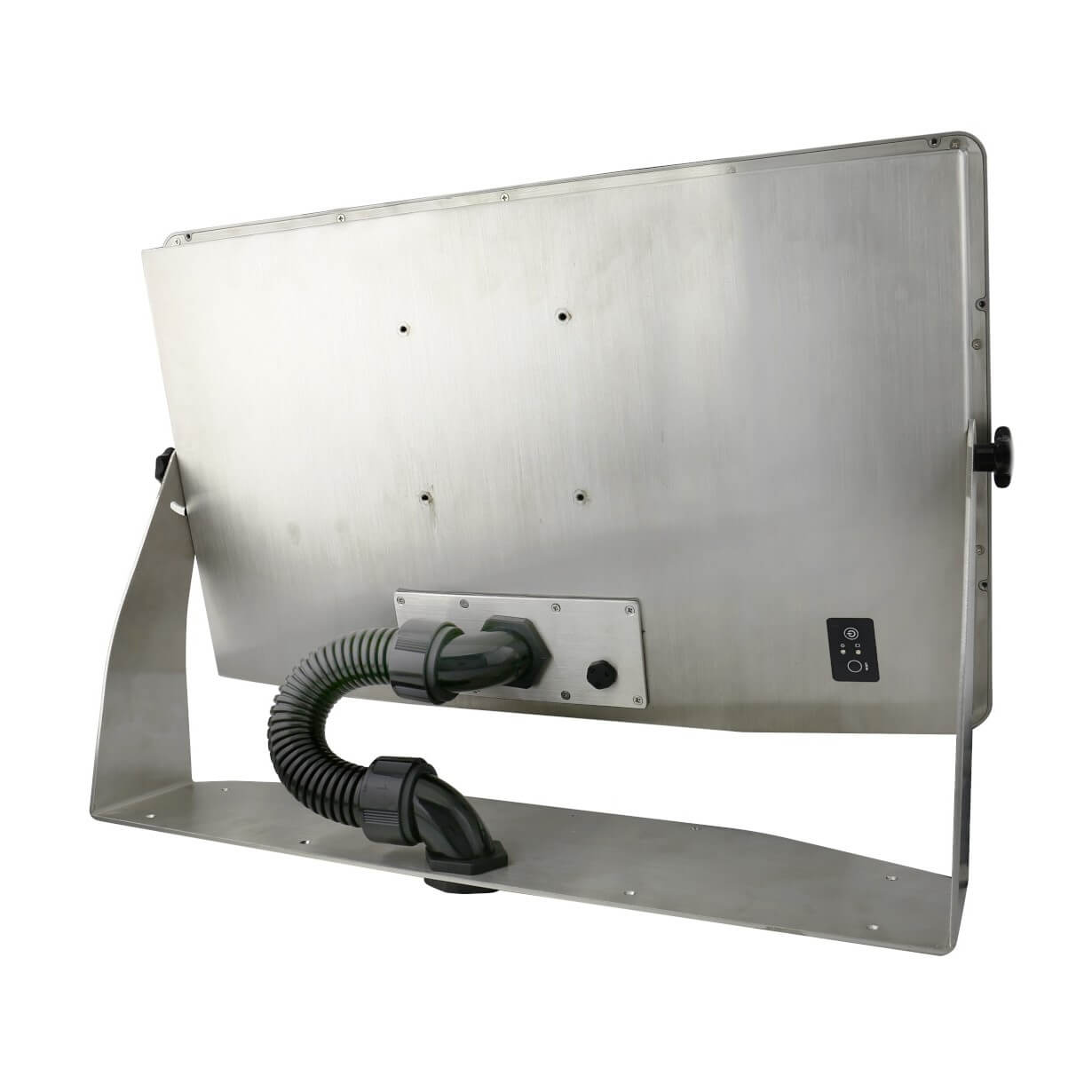

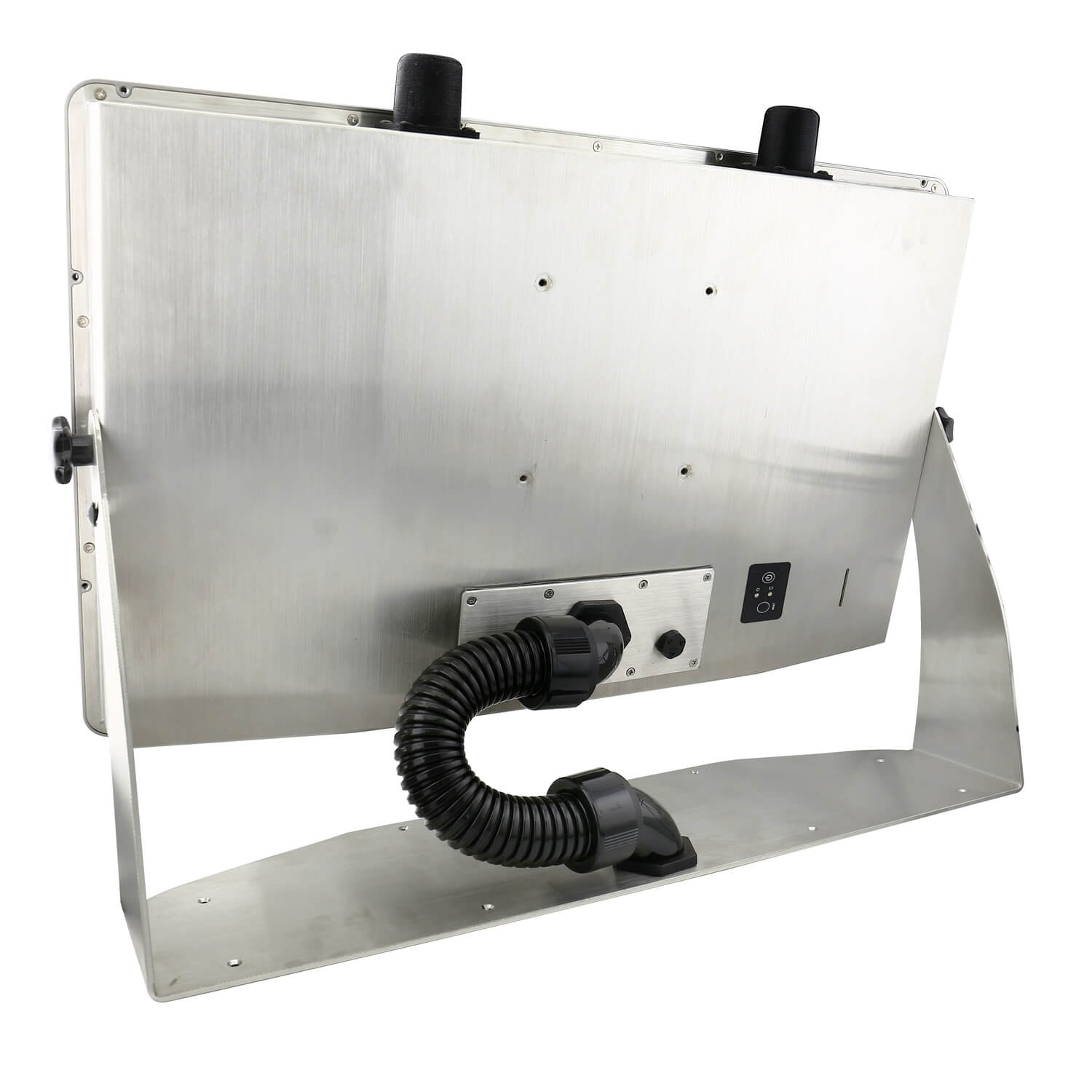

R19L100-SPM169-P, IP69K 19-inch Stainless P-Series Display
Features
19″ 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP) Fanless cooling system SUS 316/ AISI 316 stainless steel for food and chemical industries Full IP69K waterproof enclosure, good corrosion resistance A true flat, easy-to-clean front surface with edge-to-edge design Waterproof sealed conduit pipe for cable protection Supports VESA mount and Yoke mount stand LCD Panel Specification
| Size | 19″ |
| Pixel Pitch | 1280 x 1024 |
| Contrast Ratio | 1000:1 (typ.) |
| Panel Brightness | 250 nits (typ.) |
| Viewing Angle | -85~85(H);-80~80(V) |
| Touch Screen | Projected Capacitive Multi-Touch (P-CAP)
Optional anti-glare coating |
| Maximum Colors | 16.7M |
I/O Connectors
| USB Port | 1 x USB for Touch |
| VGA | 1 x VGA |
| HDMI | 1 x HDMI input |
Mechanical and Environment
| Operating Temperature | 0 …C to 45 …C |
| Operating Humidity | 10% to 95% (non condensing) |
| Cooling System | Fanless design |
| Dimension (W x H x D) | 445 x 370 x 56mm |
| IP Proof | IP69K |
Power
| Power Input | 12V DC input with AC to DC Adapter
Optional 9~36V DC input with 3 pin phoenix connector |
| Power Consumption | 23W (typ.)(Max.backlight and high CPU load) |
Standard and Certification
