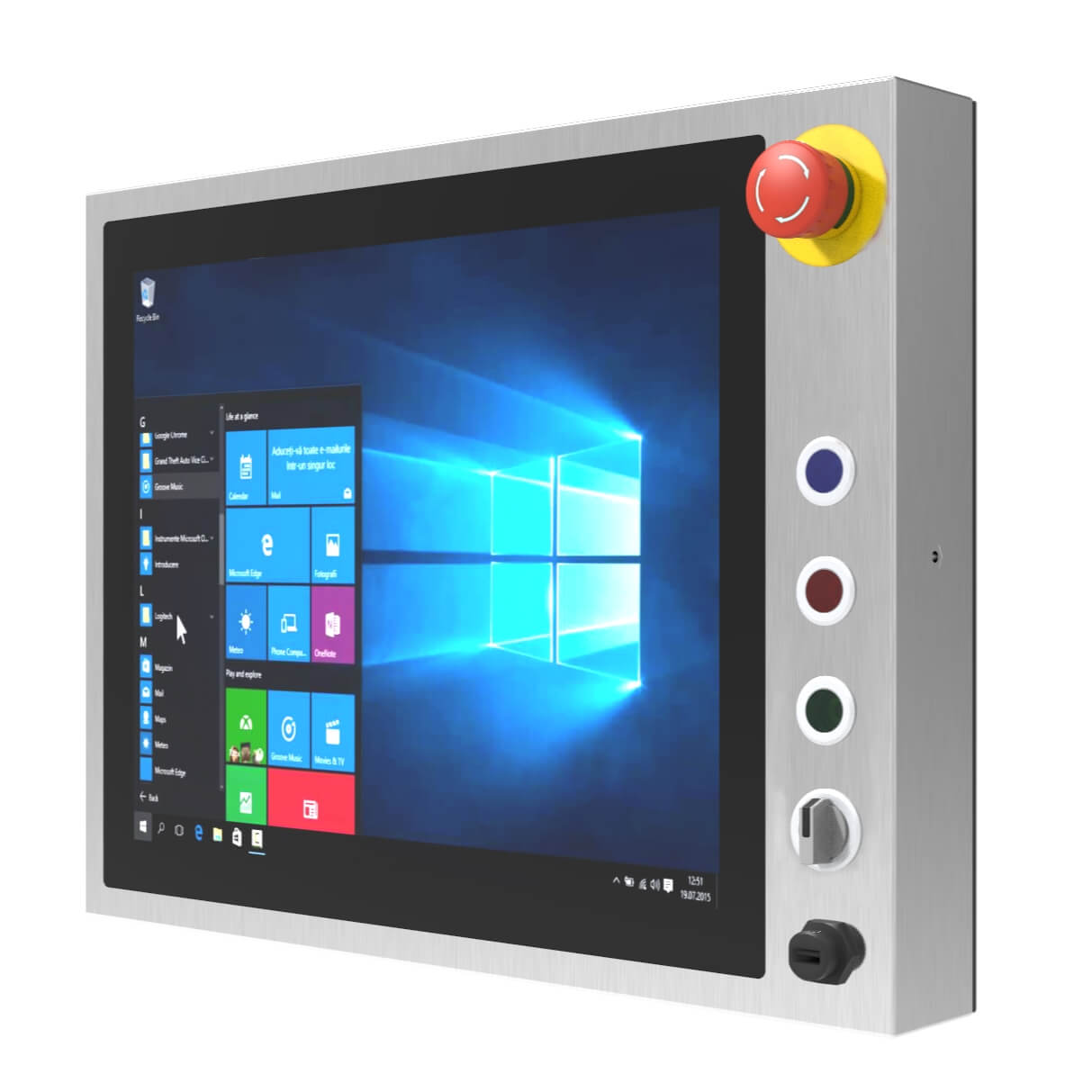

R19L100-SPM1-B 19-inch Stainless B Series Display
Features
Technical Description
| Model Name | R19L100-SPM1-B |
| Panel Size | 19″ |
| Resolution | 1280 x 1024 |
| Panel Brightness | 250(typ.) |
| Contrast Ratio | 1000:1(typ.) |
| Viewing Angle | -85~85 (H); -80~80 (V) |
| Number of Colors | 16.7M |
| Keyboard and Key Pad | Physical Buttons- Rear side: 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode (Optional) LED Indicators- 1 x LED Indicator for power 1 x LED Indicator for status |
| Touch | PCAP touchscreen |
Mechanical Description
| Dimensions (W x L x H) (mm) | 516 x 395 x 69mm |
| Housing | Stainless Housing |
| Mounting | VESA Mount |
Power Information
| Power Input | Default 12V DC input Optional 9~36V DC input |
| Power Adapter | 100~240V AC to DC Adapter with waterproof connector |
Environment & Certification
| Operating Temperature (C) | 0~45C |
| Operating Humidity Range | 10% to 90% (Non-condensing) |
| IP Rating | IP65 |
| Storage Temperature (C) | -20~60C |
