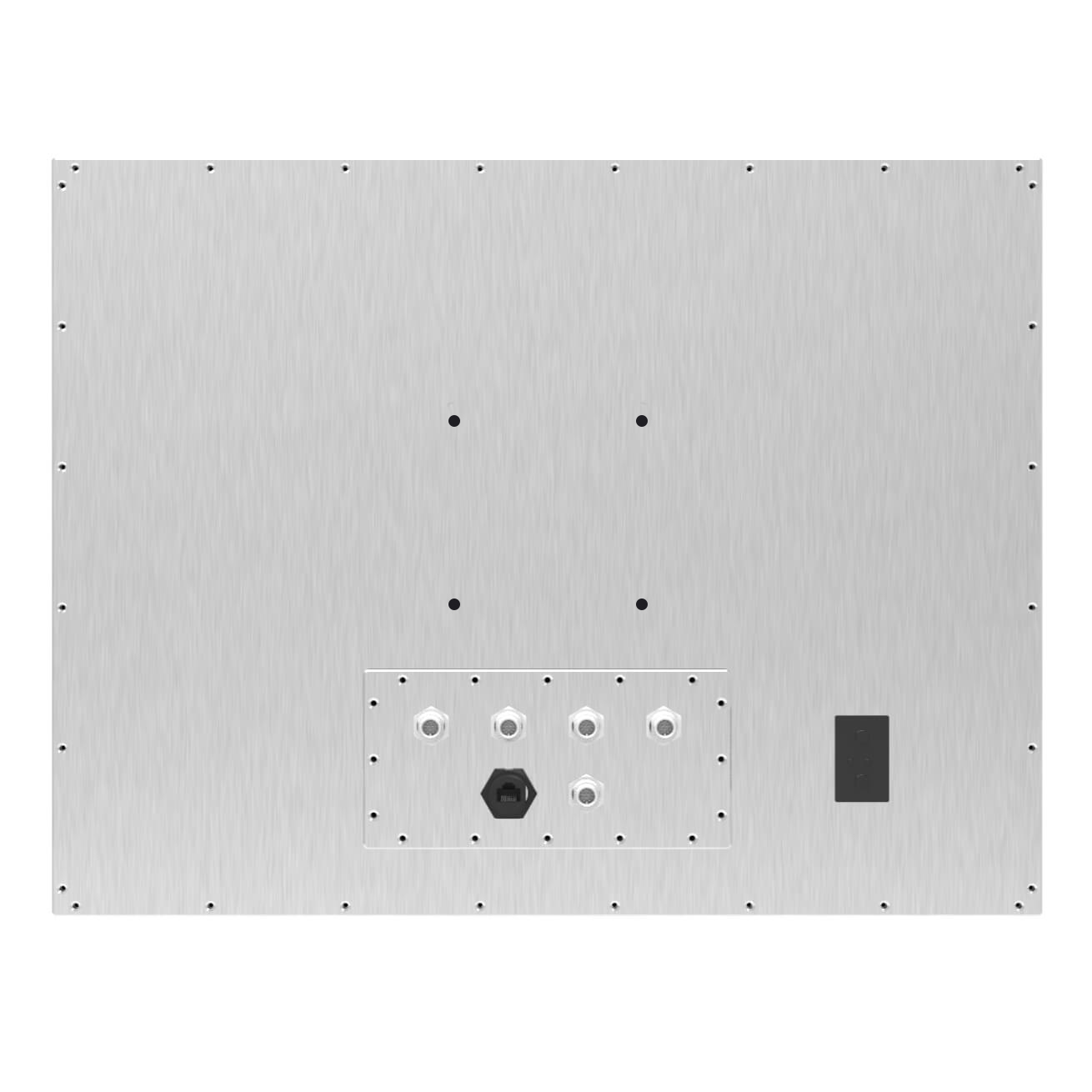

R15L100-SPC3-B 15-inch Stainless B-Series Display
Features
Technical Description
| Model Name | R15L100-SPC3-B |
| Panel Size | 15″ |
| Resolution | 1024 x 768 |
| Panel Brightness | 450(typ.) |
| Contrast Ratio | 2000:1(typ.) |
| Viewing Angle | -88~88 (H); -88~88 (V) |
| Number of Colors | 16.7M |
| Keyboard and Key Pad | Physical Buttons- Rear side: 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode (Optional) LED Indicators- 1 x LED Indicator for power 1 x LED Indicator for status |
| Touch | PCAP touchscreen |
Mechanical Description
| Dimensions (W x L x H) (mm) | 426 x 301 x 69 mm |
| Housing | Stainless Housing |
| Mounting | VESA Mount |
Power Information
| Power Input | Default 12V DC input Optional 9~36V DC input |
| Power Adapter | 100~240V AC to DC Adapter with waterproof connector |
Environment & Certification
| Operating Temperature (C) | 0~45C |
| Operating Humidity Range | 10% to 90% (Non-condensing) |
| IP Rating | IP65 |
| Storage Temperature (C) | -20~60C |
I/O Specification
| I/O Connectors | USB: 1 x M12 waterproof connector for touch screen control VGA: 1x M12 type connector for VGA input HDMI: 1x M21 type connector for HDMI input (Optional) Power Input: 1 x M12 waterproof connector for 12V DC Expansion Port: CN1 and CN2 for front button control COM Port: 1 x M12 waterproof RS232 connector for touch mode select (Optional) |
