• Supports LGA 1150 Intel® Xeon® E3-1200 v3 and 4th Generation Core i7/i5/i3 processors
• One Gen 3.0 PCIe x16 link or two PCIe x16 slots with x8 link, two PCIe x1 and three PCI slots
• DDR3 1600 MHz ECC/Non-ECC UDIMM up to 32GB
• Rackmount optimized placement with positive air flow design
• Support Intel vPro, AMT 9.0, IPMI (optional) and Embedded sofeware APIs and utilities
• Software APIs : SMBus / H/W Monitor / Watchdog

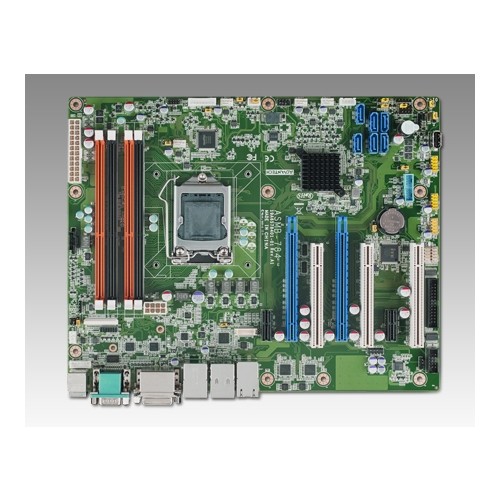

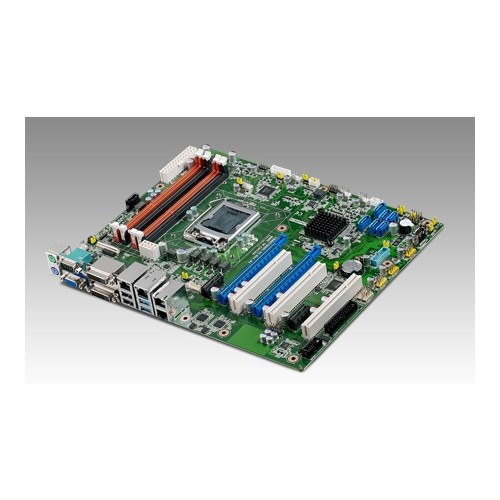

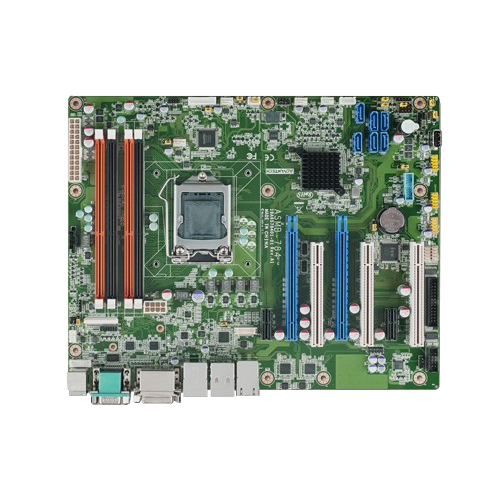

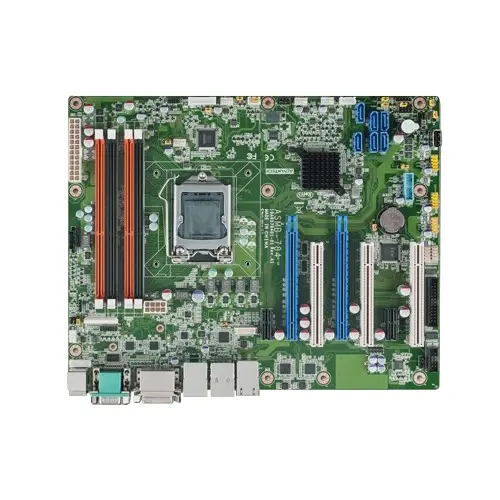

ASMB-784G2-00A1E
LGA 1150 ATX Server Board GbEx2
Dostupnost: Na objednávku (skladem u dodavatele)
Hmotnost | 1,34 kg |
---|---|
Rozměry | 395 × 325 × 65 mm |
Výrobce | Advantech |
Socket | LGA 1150 |
Typ | Serverové |
