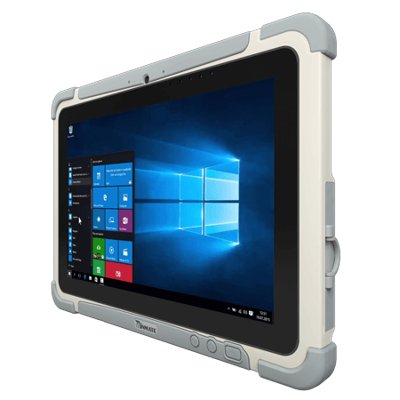

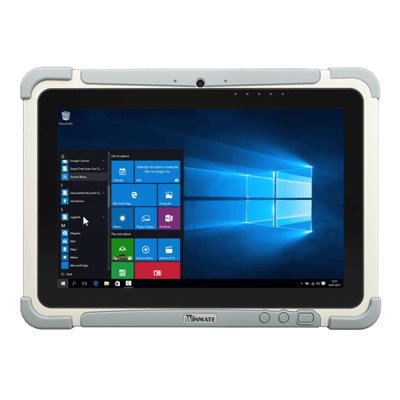

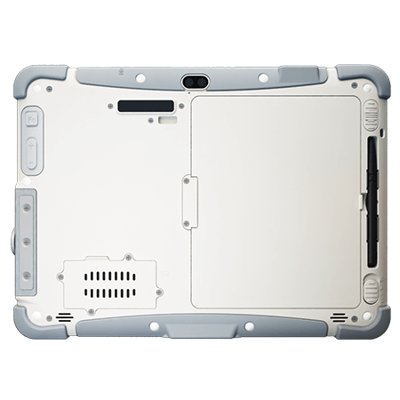

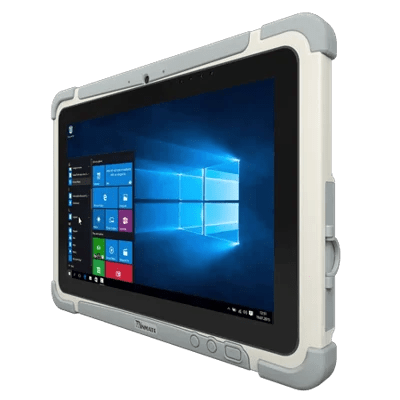

10.1″ Healthcare Rugged Tablet PC with IntelR CeleronR N6211
Vlastnosti:
- Intel® Elkhart Lake Celeron® N6211 Processor
- 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
- Lightweight, low power consumption, rugged, IP65 waterproof and dustproof
- Removable battery with hot-swap function for all day productivity
- Stylus, glove, and wet-touch modes fulfilling multiple medical operations
- In compliance with IEC/EN 60601-1, IEC/EN 60601-1-2, UL 60601-1
- Housing enhanced with antimicrobial properties
- USB Type-C port supports power delivery
Display
| Resolution | 1920×1200 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 800.0 nits |
| View Angles | 85,85,85,85 |
| Type | Projected Capacitive Multi Touch |
| Viewability | Anti-Glare touch treatment |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz) Intel Pentium N6415 @1.20 GHz (up to 3.00 GHz) (Optional) |
| Memory | 4GB LPDDR4 8GB LPDDR4 (Optional) |
| Storage | 128GB SSD Additional storage available with micro SDXC card slot 256GB SSD (Optional) 512GB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 10 IoT Enterprise LTSC (64 bit) Windows 11 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G (Optional) 5G (Optional) |
| GNSS | GPS, GLONASS, Galileo, BeiDou |
| RFID | HF RFID 13.56 MHz reader (Optional) add-on UHF RFID Reader (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
| Smart Card Reader | Add-on Smart Card Reader (Optional) |
Camera
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
Mechanical
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| Housing | Housing enhanced with antimicrobial properties |
IO Ports
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| SD Card Slot | 1 x Micro SD Card slot (Support SDXC) |
| SIM Card Slot | 1 x SIM card slot |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out) Dual Digital Mic With Noise Cancellation Dual Speaker |
| Expansion Port | 1 x Expansion connector (Optional) |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | 0 to 35°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
Certification
| Certification | CE, FCC, IEC/EN 60601-1, IEC/EN 60601-1-2, UL 60601-1 |
Control
| Button | 1 x Power, 1 x Home, 2 x Volume, 2 x Programmable Function Keys |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
Accessory
| Accessory | Adapter and Power Cord Capacitive Stylus Standard Battery |
| Optional Accessory | Desk Dock (Optional) Vehicle Dock (without VGA output) (Optional) Vehicle Cradle (Optional) Battery Charger (Optional) Smart Card Reader (Optional) High Capacity Battery (Optional) Hand Strap (Optional) VESA Mount Kit (Optional) Shoulder Strap (Optional) Carry Bag (Optional) Vehicle Charger (Optional) |
Barcode Scanner
| Barcode Scanner | 1D/2D barcode reader (Optional) |
Power
| Battery | Hot-swappable 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional) |
| Battery Operating Time | Standard Battery: 8 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz (19V DC) |
