HTB-100-HM170-i7/4G-R10

Medicínský počítač, Intel Core i7-6822EQ, 4GB RAM, 1-28VDC, PCIe x16 expan.

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G18852210 Produktové číslo: HTB-100-HM170-i7/4G-R10 Kategorie: Výrobce: IEI
Poptat produkt
  • Medical grade with high performance fanless embedded computing
  • 6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory
  • Triple independent display with high resolution support
  • Isolated COM ports for enhancing safety among devices
  • Optional PCIe x16 expansion slot supports more flexible functions

Smart & Friendly Design!
HTB-100 brings you more satisfaction

Isolated COM ports, rich I/O interface, and multiple expansions are built in to the HTB-100. The intelligent HTB-100 medical computing system will meet all demands from the medical applications.

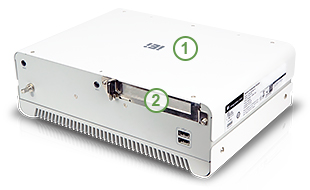

1. Compliant with medical standards

The HTB-100 is compliant with medical standards, including IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making the medical environment more reliable.



2. Flexible expansion

The flexible expansion is one of the advantages of the HTB-100 for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery.

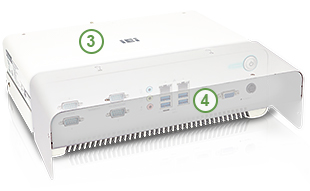

3. Waterproof top cover

The HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort.



4. Cable cover for easy cabling

The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment.

Powerful system design capability with innovative technology

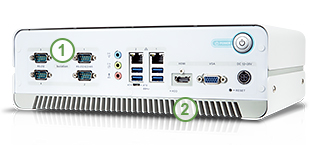

1. Isolated COM ports for safety protection

The COM ports support 2.5kV isolation that meets medical standard (IEC 60601-1-2 V4.0). The isolated ports can increase safety on device designed for medical environment, and provide comprehensive protection against electrical surges for patients and medical staffs.



2. Fanless and easy maintenance

The HTB-100 is a fanless embedded system, and the heatsink is situated on the bottom side. The design makes the HTB-100 an easyto-clean and reliable system for the medical environment.

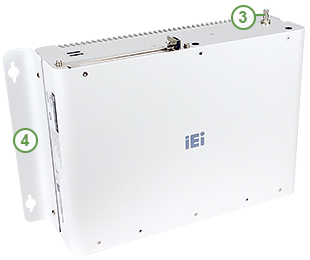

3. Ground pin to prevent harm to patients and medical staffs

The perfect grounding pin design can avoid current from the HTB-100 to vital devices which connect to patients, and to avoid the current damage from other devices.



4. Easy mounting design

Various mounting methods such as desktop and wall mount are supported for easy use in medical environment. The provided flexible mounting bracket can be oriented 180 degrees to change from desktop to wall mount.

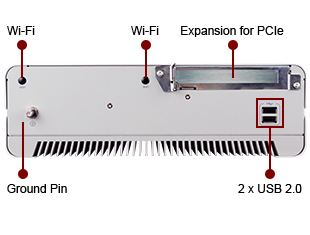

I/O Interface

Hmotnost 2.2 kg
Rozměry (produktu / balení) 294 × 90 × 209 mm
