• 1-port PROFIBUS-to-PROFINET gateways
• Protocol conversion between PROFIBUS and PROFINET
• Automatic scan of PROFIBUS devices, and easy configuration
• microSD card for configuration backup
• Built-in Ethernet cascading for easy wiring
• Redundant dual DC power inputs and relay output supported
• Embedded I/O monitoring and diagnostic tools
• Web-based GUI for I/O data visualization
• -40° to 75°C operating temperature
• Supports Moxa’s MXview industrial network management software via the MXview Plug-in

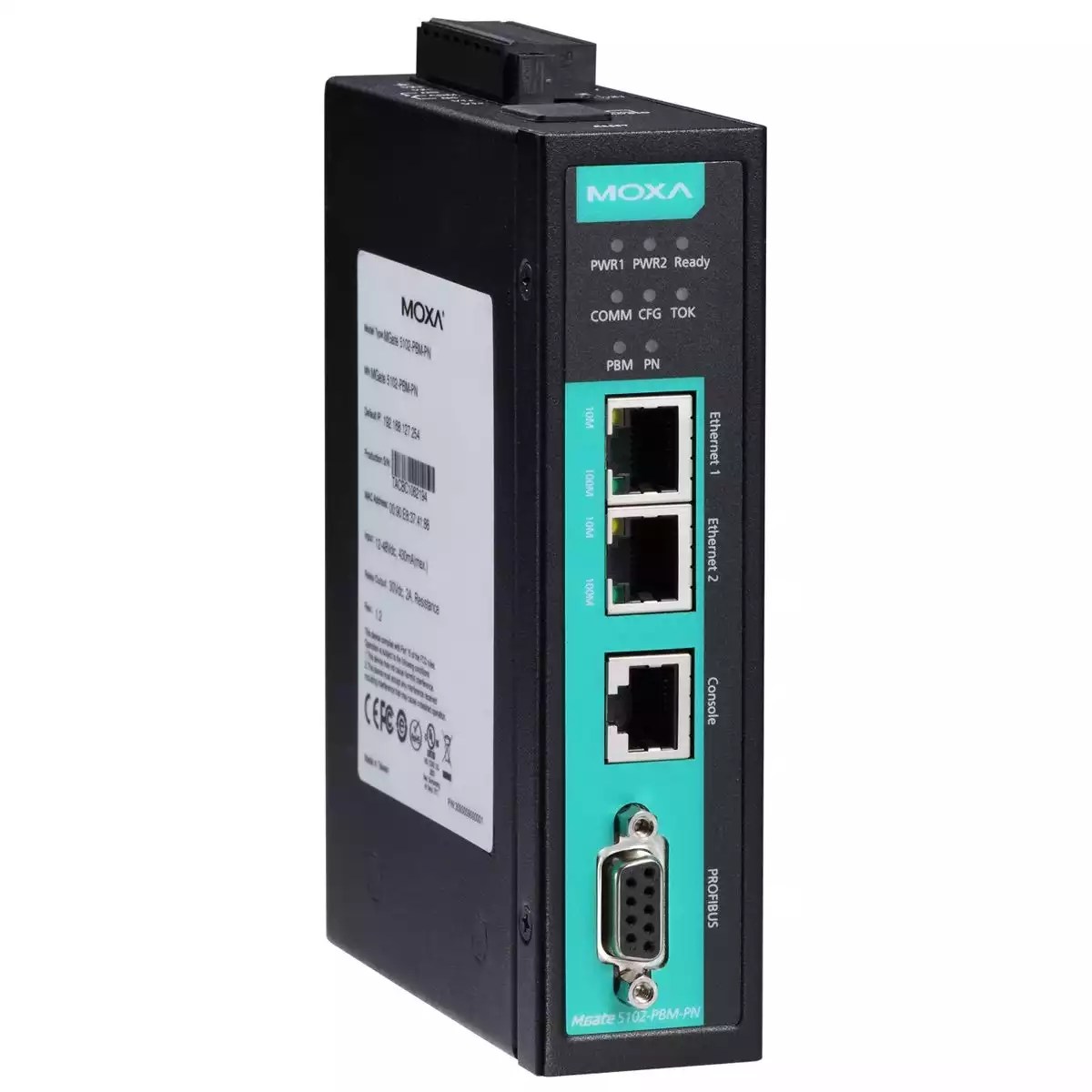

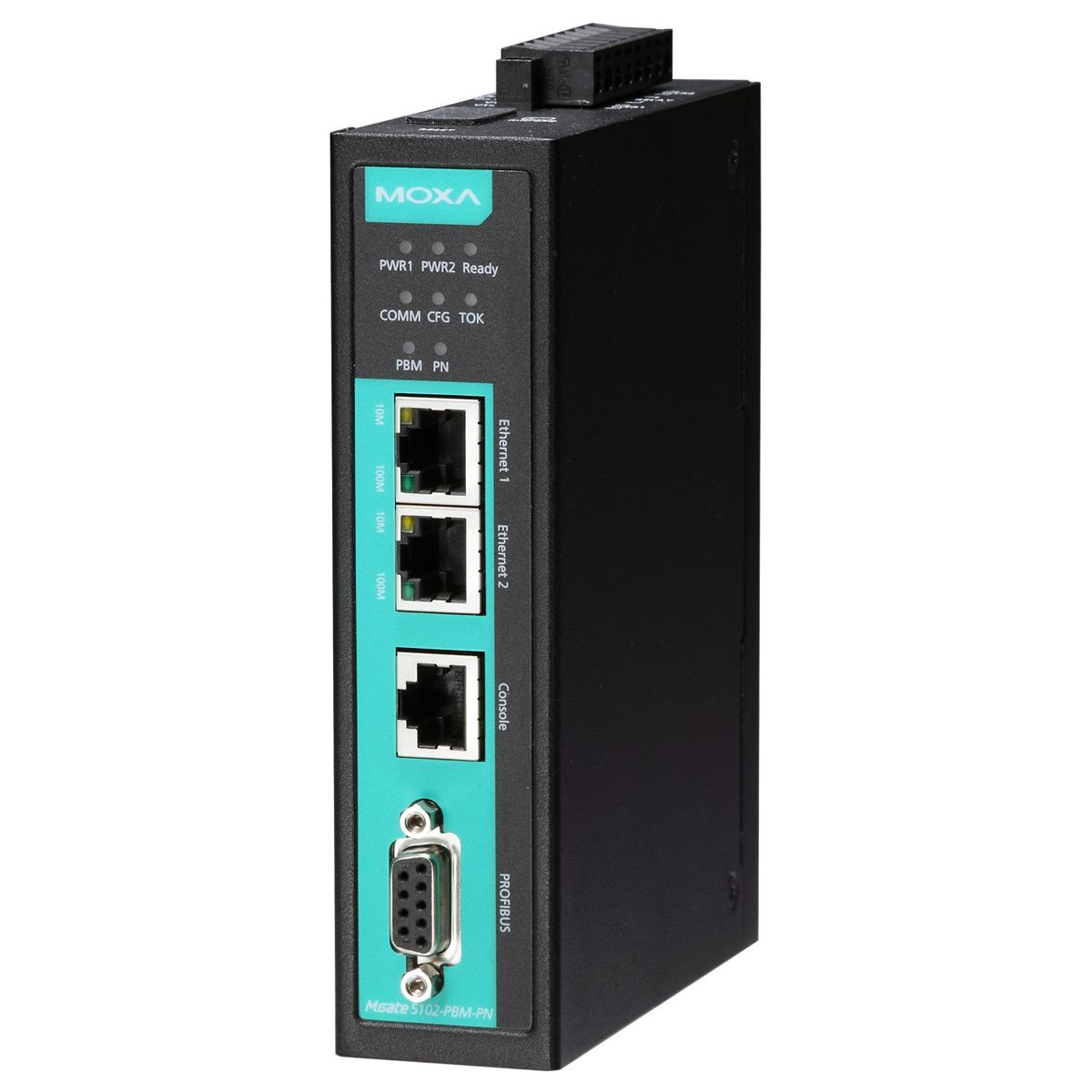

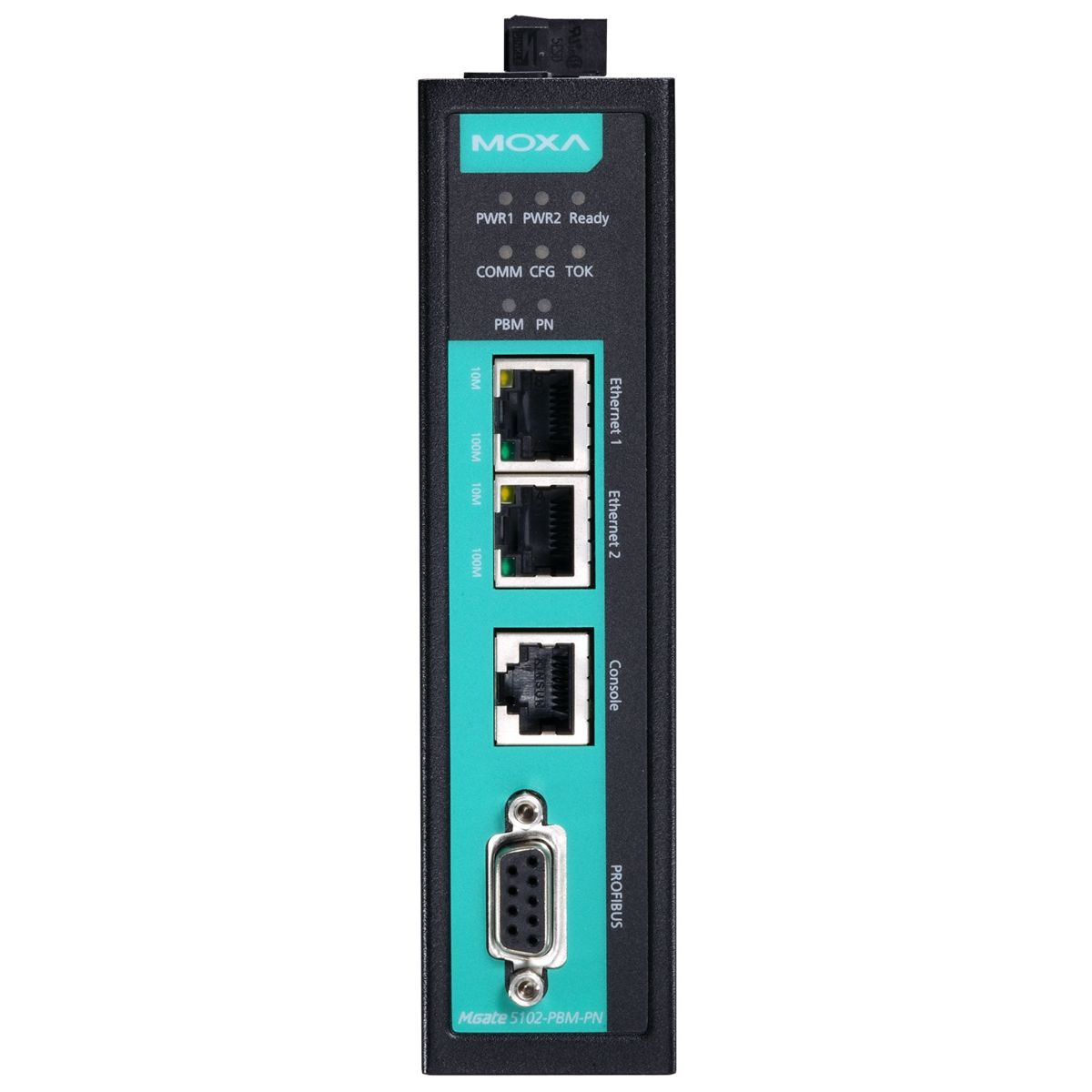

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected with a rugged metallic casing, are DIN rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil & gas, power, process automation, and factory automation.
