PCI-1680U-BE

2-port CAN Uni-PCI COMM Card w/I

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 8 ks

- +
Porovnat
Porovnat
Číslo zboží: GA55104011 Produktové číslo: PCI-1680U-BEKategorie: Výrobce: Advantech
Poptat produkt

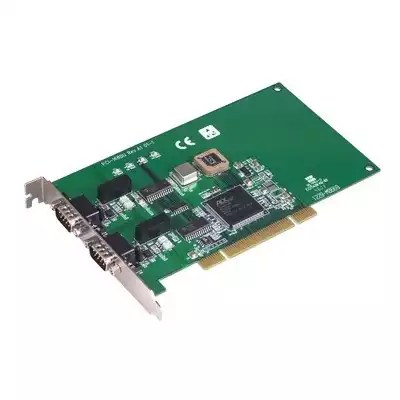

2-port CAN-bus Universal PCI Card with Isolation Protection

PCI-1680U is a special purpose communication card that offers the connectivity of the Controller Area Network (CAN) to your PC. With its built-in CAN controllers, the PCI-1680U provides bus arbitration and error detection with an automatic transmission repeat function. This drastically reduces the chance of data loss and ensures system reliability. The on-board CAN controllers are located at different positions in the memory, and you can run both CAN controllers independently at the same time. Besides, PCI-1680U has a universal PCI connector, which is compatible with both new 3.3 V signaling systems and traditional 5 V signaling systems. With high-compatibility, the PCI-1680U can be used in diverse systems.

Vlastnosti:
  • Operates two separate CAN networks simultaneously
  • High speed transmission up to 1 Mbps
  • Optical isolation protection of 1000 VDC
  • Windows DLL library and examples included
  • I/O address automatically assigned by PCI PnP
  • Supports Windows CE5/CE6/XP/7/8.1/10 and Linux drivers
Hmotnost0,22 kg
Rozměry227 × 159 × 40 mm
Výrobce

Advantech

Počet portů

2

Rozhraní

PCI

Datasheet

Stáhnout datasheet:
