• PROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60°C
• Fiber cable test function validates fiber communication
• Auto baudrate detection and data speed up to 12 Mbps
• PROFIBUS bus fail prevents corrupted datagram in functioning segment
• Fiber inverse feature
• Alarm by relay output
• 2 KV galvanic isolation protection
• Dual power inputs for redundancy (Reverse power protection)
• Extends PROFIBUS transmission distance up to 45 km
• Wide temperature model available for -40 to 75°C environments

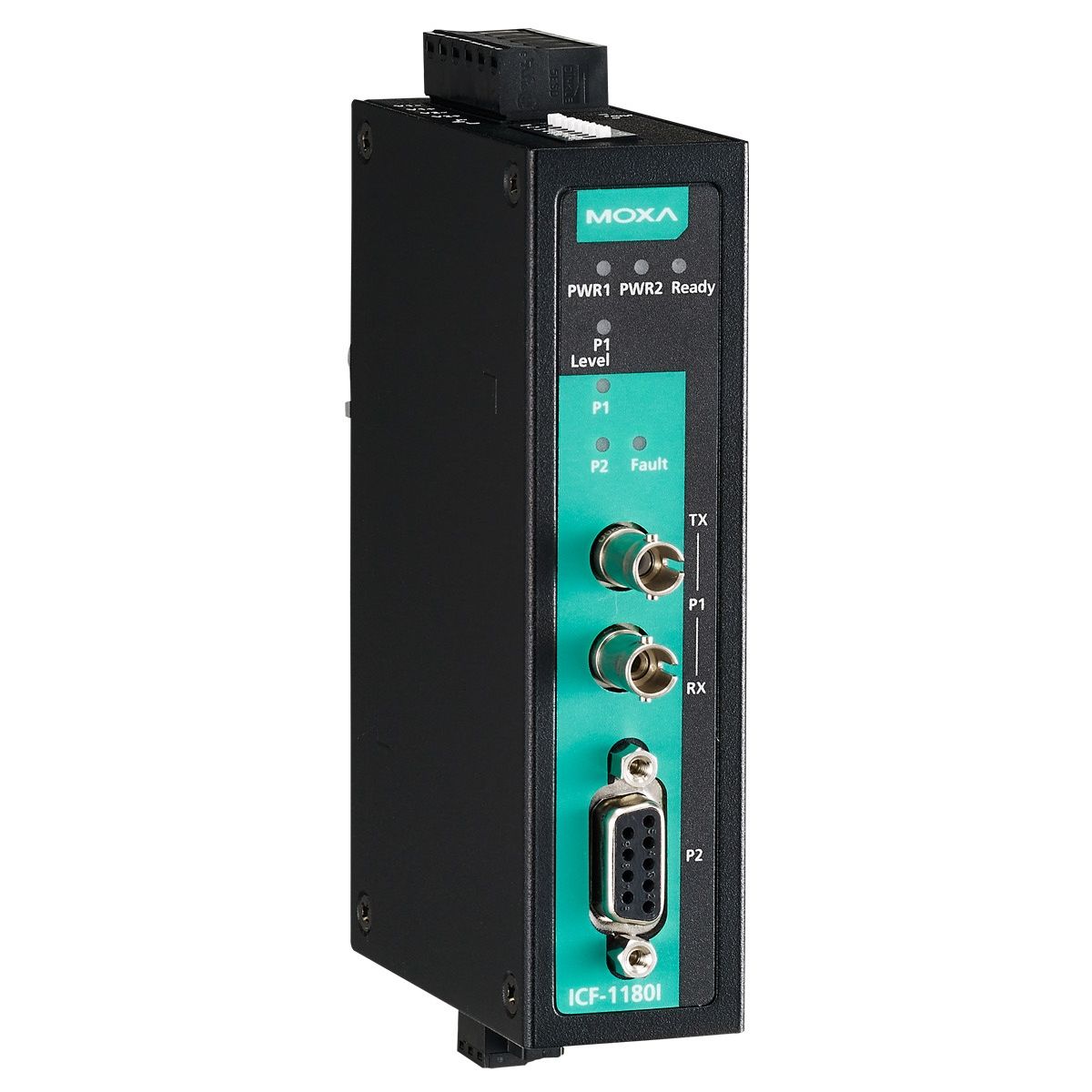

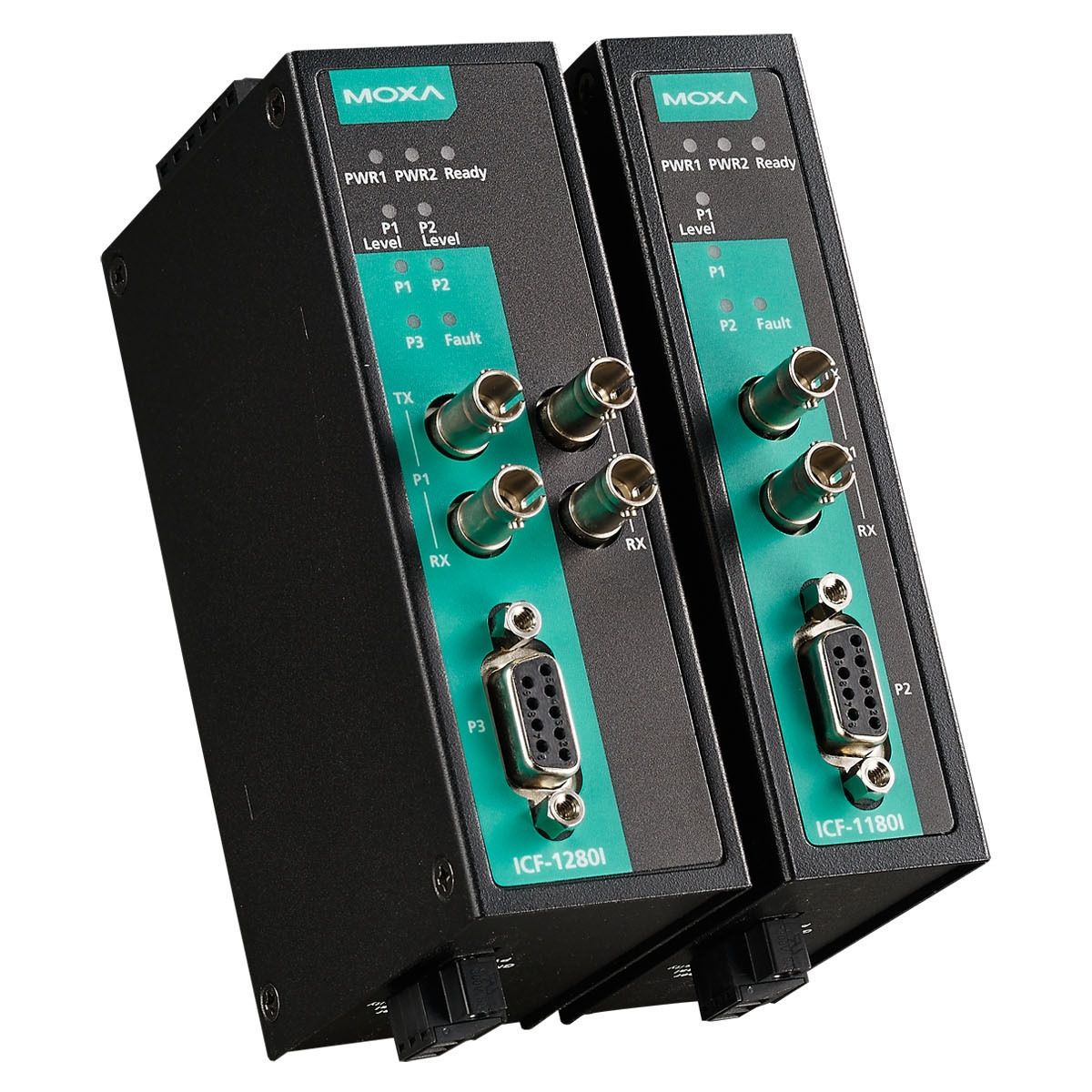

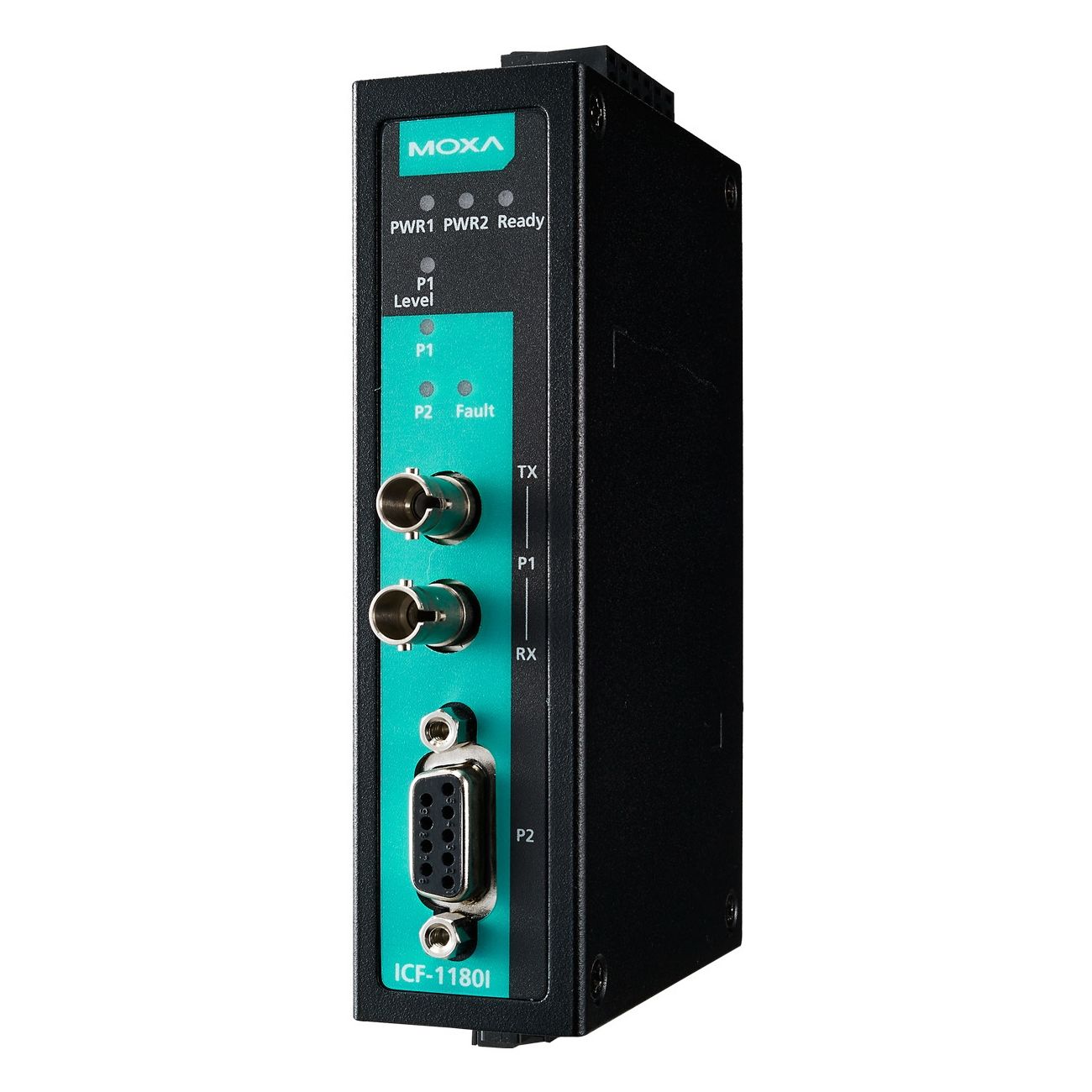

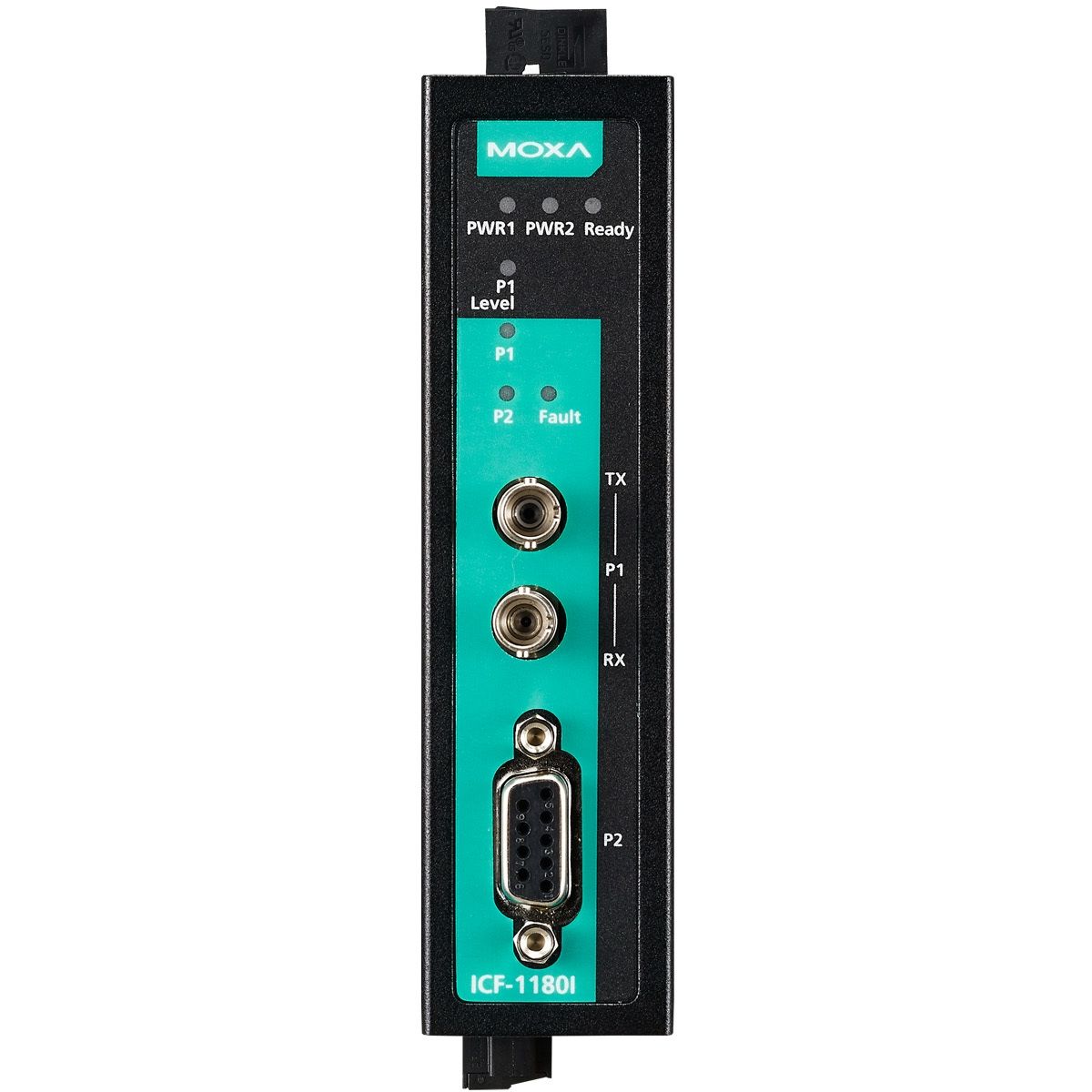

The ICF-1180I series industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multimode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 KV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.
