• Industrial CANbus to fiber converter, multi-mode, ST connector
• Transmits up to 2 km over optical fiber
• Converts CAN signals to fiber and fiber to CAN signals
• Baudrate up to 1 Mbps
• Dual power inputs for redundancy
• DIP switch for 120 ohm terminal resistance
• DIP switch for fiber test mode
• LEDs for Fiber TX, Fiber RX, Power 1, Power 2
• Fully compatible with the ISO 11898 standard
• 0 to 60°C operating temperature

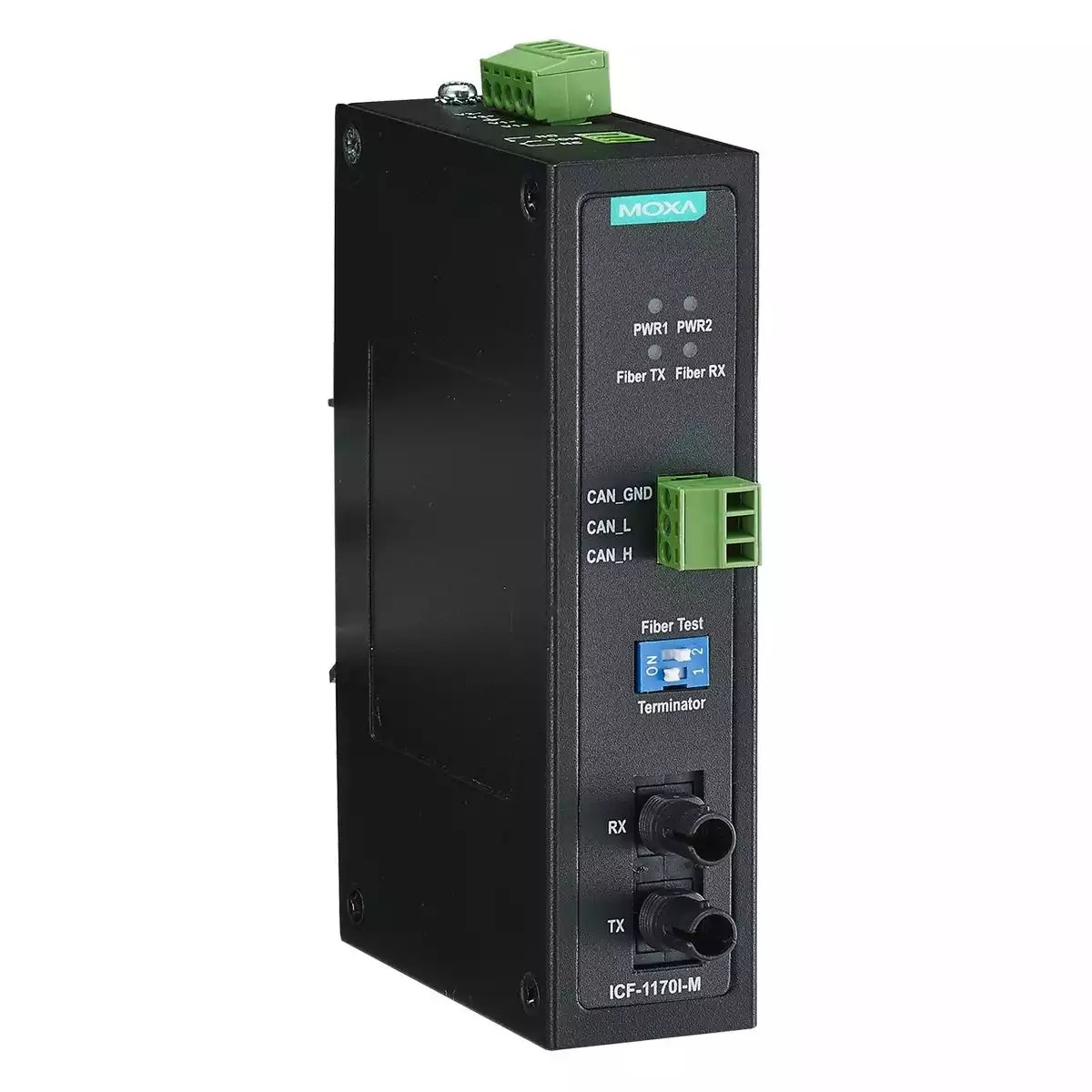

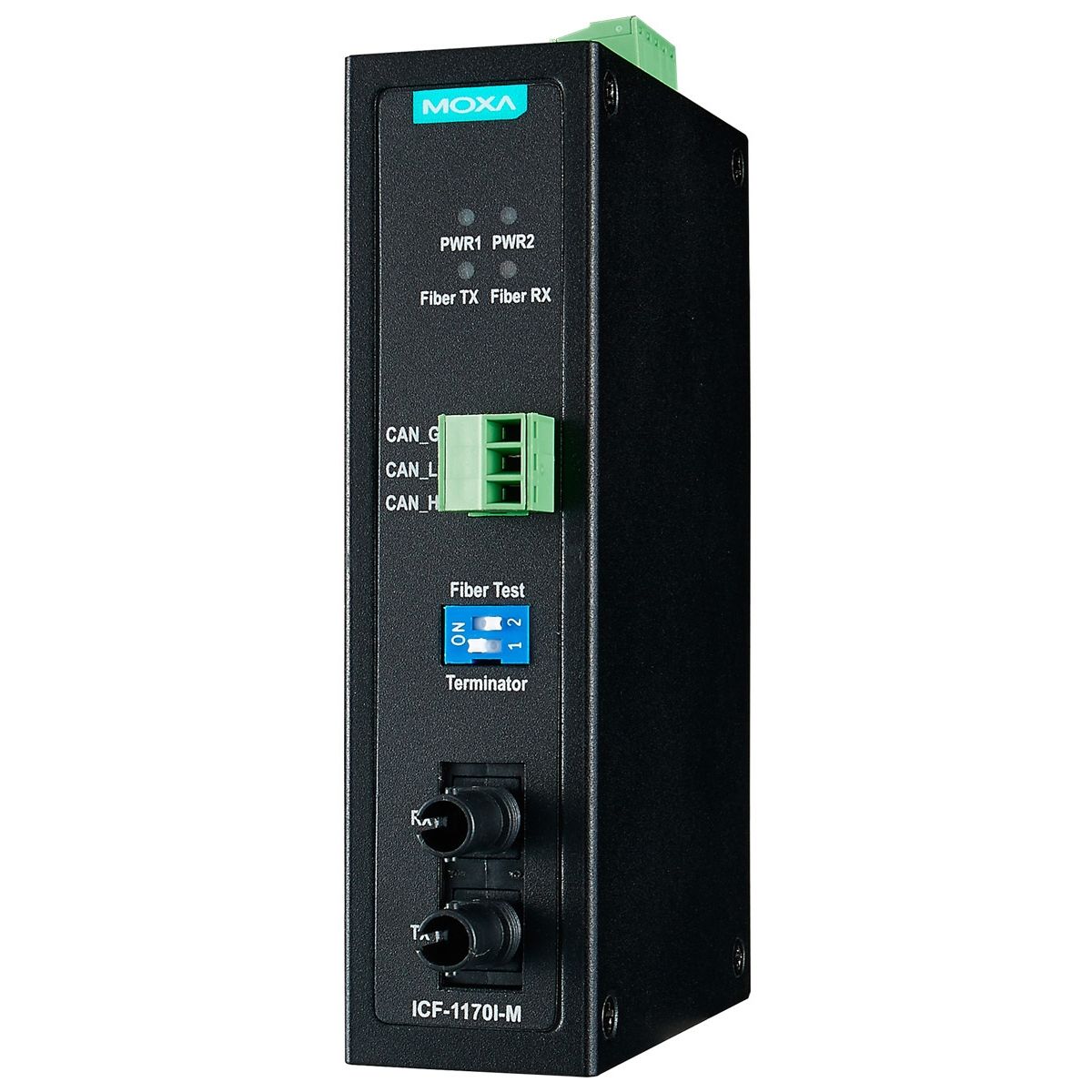

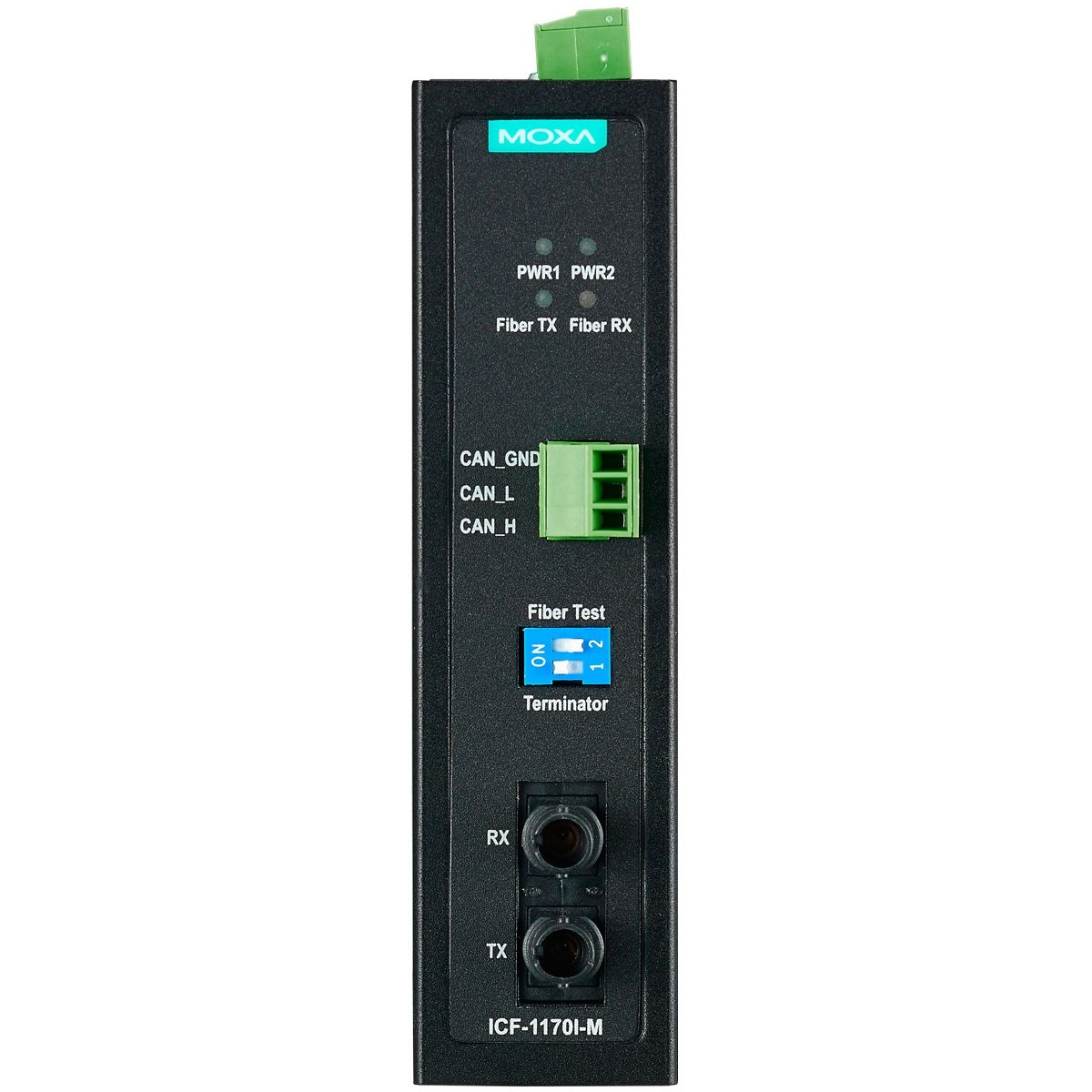

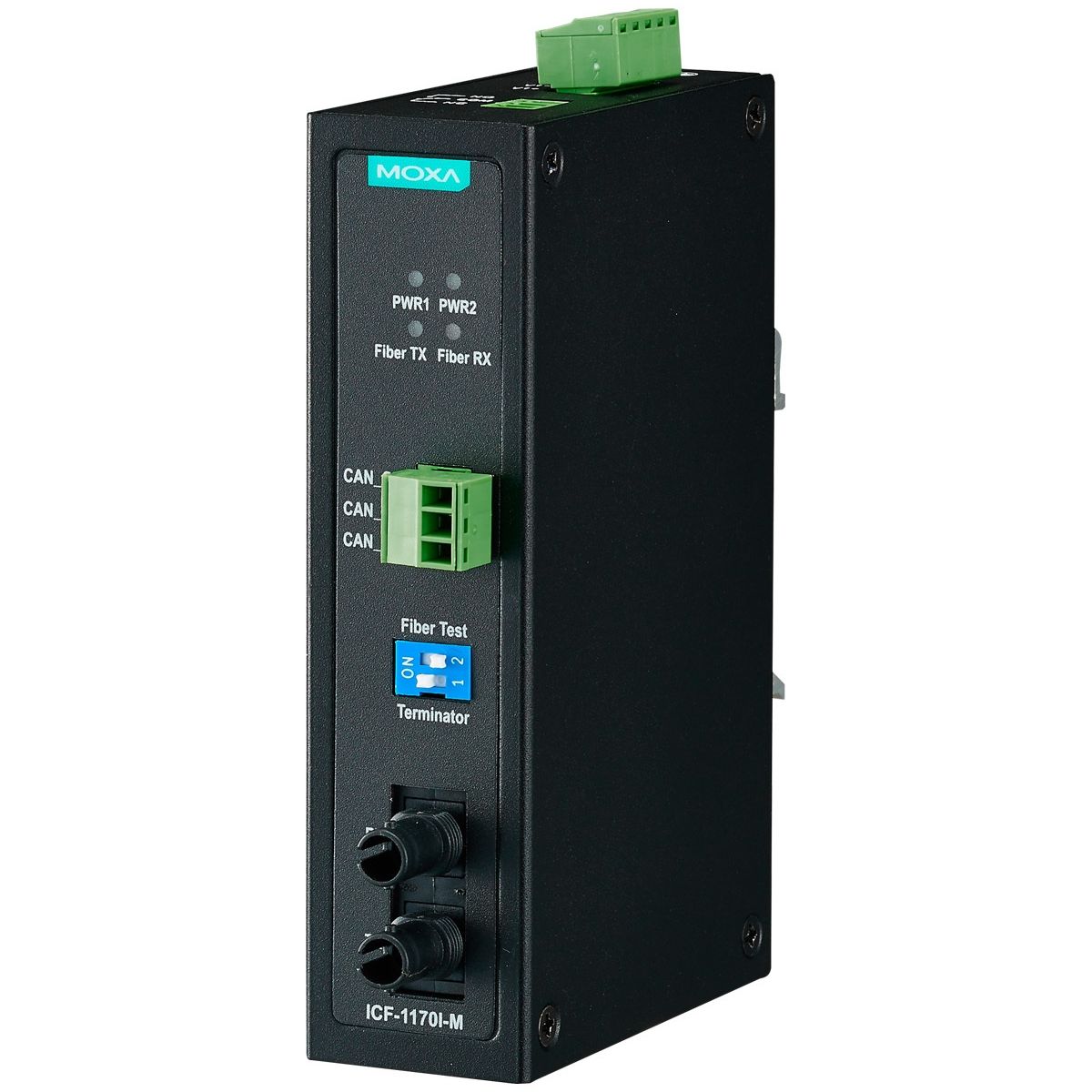

The ICF-1170I series CANbus-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 KV optical isolation for the CANbus system and dual power inputs with alarm contact relay to ensure that your CANbus system will remain online.
