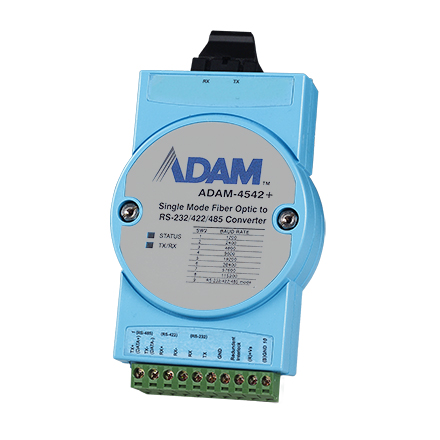

• Single-mode Fiber Optic to RS-232/422/485 Converter
• Easily mounted on a DIN-rail, panel or piggyback
• Transmission speeds of up to 115.2 kbps
• Half/Full-duplex, bidirectional transmission mode
• Avoids lightning strikes and EMI/RFI interference
• Prevents damage from electrostatic discharge
• Stable and error-free data transmission
• Automatic internal RS-485 bus supervision
• No external flow control signals required for RS-485
• Transient suppression and over-current protection on RS-422/485 data lines
• Reserved space for termination resistors
• LED for power and data flow indication
• Power requirement: +10 to + 30 VDC
Fiber optic transmission offers the benefits of wide bandwidth, immunity to EMI/RFI interference, and secure data transmission. ADAM-4542+ can be used as a RS-232/422/485 point-to-point or point-to-multipoint connection for transmitting and converting full/half-duplex signals and their equivalents within a fiber optic environment. Fiber optics is the perfect solution for applications where the transmission medium must be protected from electrical exposure, lightning, atmosphere. ADAM-4542+ is specifically designed to link various machinery equipped with a RS-232/422/485 communication port (such as computer systems or manufacturing machines). Using standard SC type fiber connector, the module’s fiber optic ports can accommodate a wide range of fiber optic cable sizes, including 62.5/125, 250/125, 100/140 mm.
