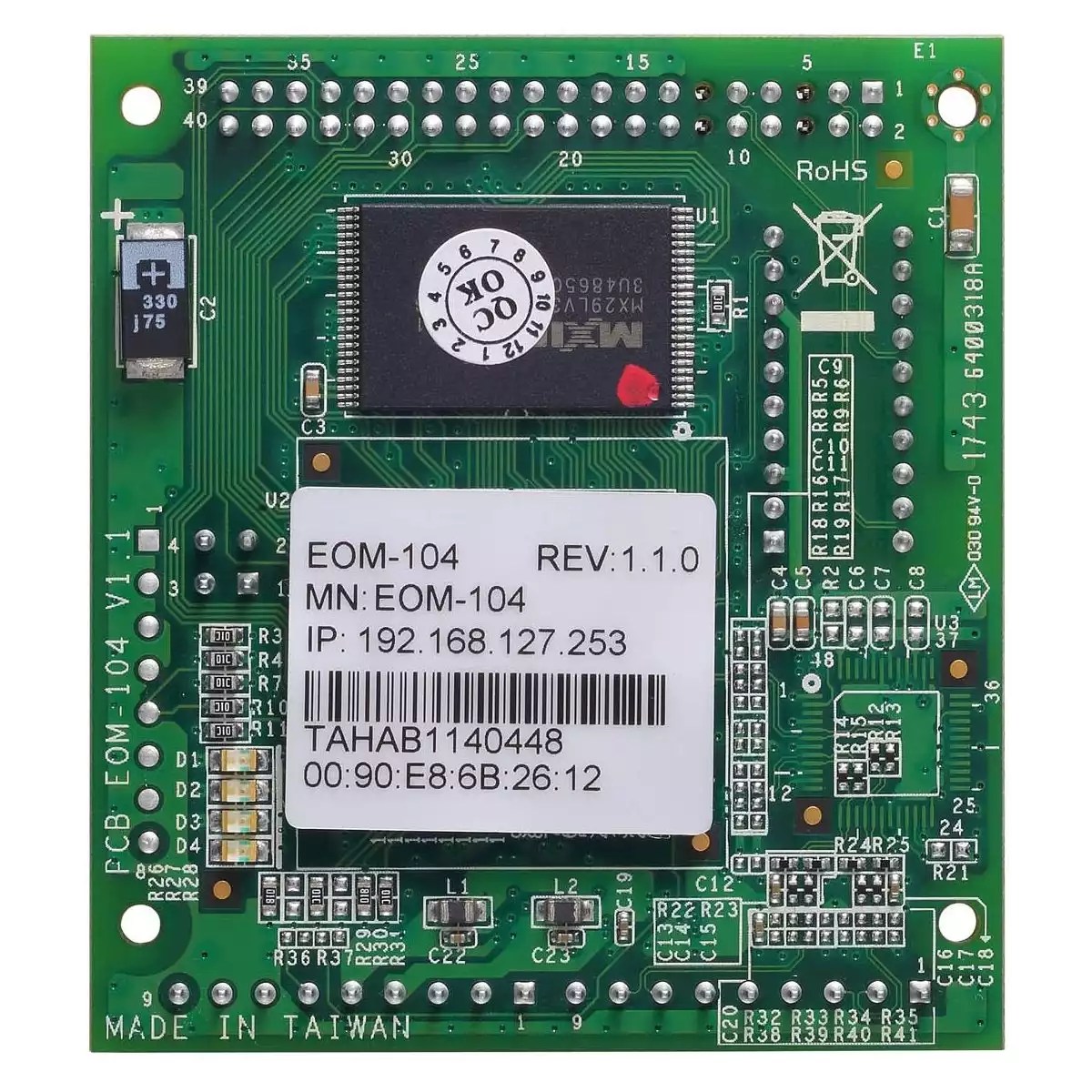

• Includes an EOM-104-FO switch module and evaluation board with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (SC connectors) for testing and application development
• 10/100BaseT(X) and 100BaseFX Ethernet interfaces
• Turbo Ring, RSTP/STP for Ethernet Redundancy
• SNMP and e-mail alerts for event trapping and notification
• Two-thirds the size of a business card
• Low power consumption
• -40 to 75°C operating temperature
The EOM-104 series Ethernet switch modules are designed for device manufacturers who would like to embed an Ethernet switch module in their products to enhance performance and reliability. The EOM-104 series modules provide an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product. The modules support 10/100M Ethernet transmission and comes with Turbo Ring’s fast recovery time of under 20 ms. The EOM-104 series also provide a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.
