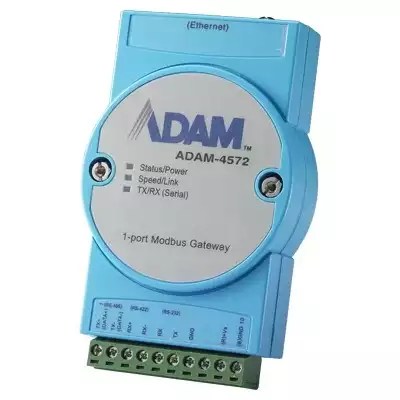

ADAM-4572-CE

1-port Modbus Gateway

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: GA55302012 Produktové číslo: ADAM-4572-CE Kategorie: Výrobce:
Poptat produkt
• 1-port Modbus Gateway
• Supports 10/100 Mbps communication speeds
• Allows up to 8 clients to access field data simultaneously
• Supports popular HMI software with Modbus/TCP driver or OPC server
• Up to 31 Independent serial ports if configured to RS-485 serial mode
• Provides auto-searching device ID Windows utility
• Surge protection for RS-485 and power line
• Automatic RS-485 data flow control
• Easy mounting on DIN-rail or panel
• Supports Modbus/ASCII, RTU Protocol to control devices

ADAM-4572 serves as an interface between Modbus serial devices and computer hosts running Modbus/TCP on an Ethernet network. Fully compliant with Modbus/TCP, it is idealfor those who looking for an easy way to connect their existing devices or controllers running Modbus serial protocols (Modbus/ASCII or Modbus/RTU) to Ethernet networks. Itworks like a bridge between Modbus serial devices and controllers over TCP/IP Ethernet networks. Benefits are also abundant for customers who want to expand their Ethernet-basedModbus (Modbus/TCP) applications.Networks have become increasingly vital for industrial automation applications, but many control devices today do not have a network port and can only communicate with a dedicatedlocal PC or control panel. Advantech’s revolutionary network-enabling technology is now allowing control devices with serial ports to connect to the Ethernet and share networksquickly and cost-effectively. The ADAM-4572 Modbus to Ethernet Data Gateway allows users to integrate new and existing Modbus/RTU and Modbus/ASCII serial devices to newerTCP/IP network-based devices. Manufacturers, system integrators, and end users can now use the ADAM-4572 to create networked applications to remotely manage and access datafrom control devices no matter where they are.
Hmotnost 0.13 kg
Rozměry (produktu / balení) 236 × 160 × 55 mm
Výrobce

Advantech

Protokol

Modbus TCP

Datasheet

Stáhnout datasheet:

3D Model

[canvasio3D width = ‚830‘ height = ‚600‘ border = ‚0‘ borderCol = ‚#F6F6F6‘ dropShadow = ‚0‘ backCol = ‚#FFFFFF‘ backImg = ‚/wp-content/themes/acipc-eshop/images/3D-background.jpg‘ mouse = ‚on‘ rollMode = ‚off‘ rollSpeedH = ‚0‘ rollSpeedV = ‚0‘ objPath = ‚https://eshop.autocont-ipc.cz/images/GA55302012/3dmodel/adam-4572-ce.stl‘ objScale = ‚0.5‘ objColor = ‚#5c5c5c‘ lightSet = ‚7‘ reflection = ‚custom1‘ refVal = ‚7‘ objShadow = ‚on‘ floor = ‚off‘ floorHeight = ’42‘ lightRotate = ‚off‘ vector = ‚off‘ mousewheel = ‚on‘ Help = ‚off‘ loadingText = ‚Načítání 3D modelu, prosím čekejte…‘][/canvasio3D]
* Upozornění: 3D model slouží pouze pro ilustrační účely. Některé detaily nemusí být vyobrazeny. Design zařízení se může kdykoliv bez předchozího upozornění změnit.
