500 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

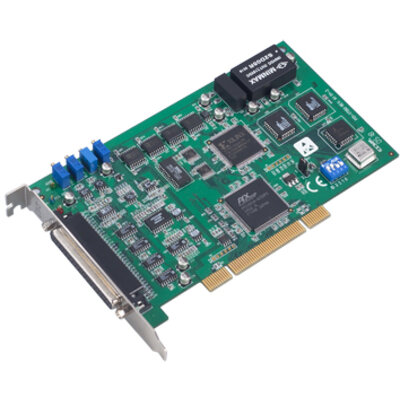

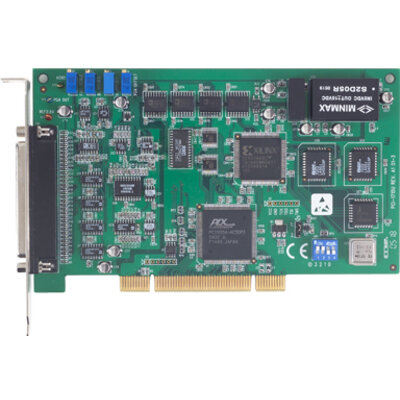

The PCI-1715U is an isolated high-speed analog input card for the PCI bus. It provides 32 analog input channels with a sampling rate up to 500 kS/s, 12-bit resolution and isolation protection of 2500 VDC.
Vlastnosti:
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 1,024 samples
- Universal PCI bus
- BoardID™ switch
