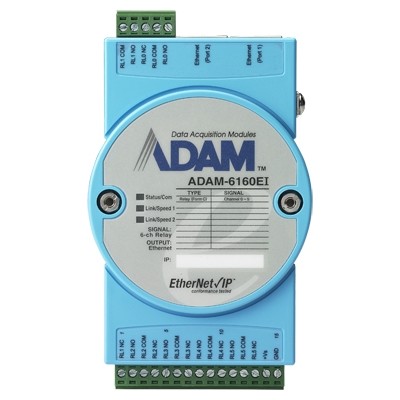

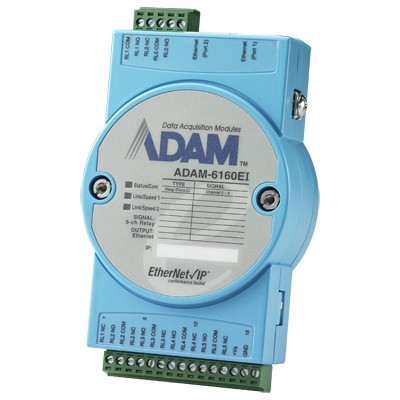

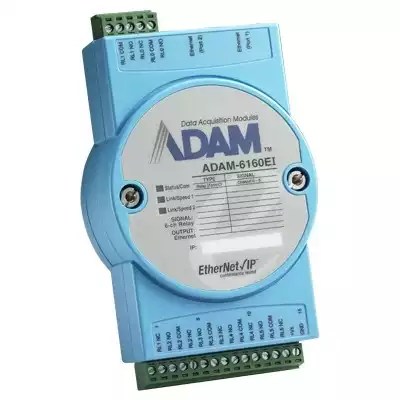

• 6-ch Relay Output EtherNet/IP Module
• EtherNet/IP protocol
• 6-ch Form C relay output
• Breakdown voltage: 500 VAC (50/60 Hz)
• 2 x RJ-45 LAN (daisy chain)
• Contact Rating: 5 A @ 250 VAC; 5 A @ 30 VDC
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6160EI, 6-ch relay output EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
